INA260EVM-PDK (Rev A) Setup
Next, with the output disabled, connect the input current source to the EVM via T1 and T2, as shown in
3-5.
The lug connectors can accommodate wire sizes up to #6-AWG.
Also be sure to connect the low-side terminal of the input current source to EVM ground (GND) using one of the
test points. This step is important to obtain accurate V
Lastly, connect the SM-USB-DIG to the computer, using the included USB extender cable if necessary. At this
point the SM-USB-DIG powers on, but the EVM does not.
The power supply to the EVM must be enabled from the GUI.

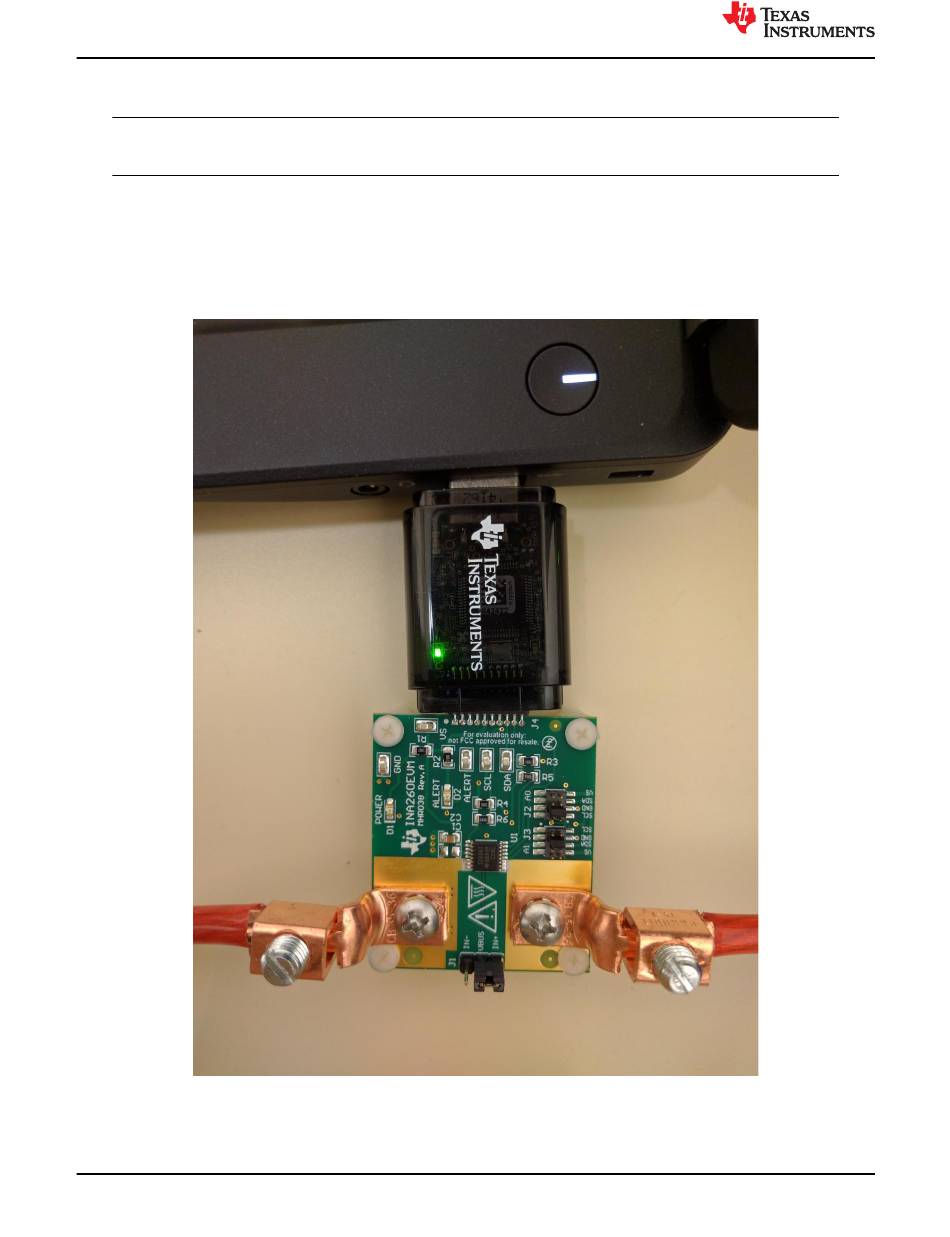

Figure 3-5. SM-USB-DIG Powers on When Connected to a Computer
