INA260EVM-PDK (Rev A) Setup
JUMPER
J1
J2
J3
3.3 Connecting the Hardware
To minimize risk of potential electrical shock hazard, be sure the EVM is full deenergized.
Before connecting the boards, make sure the high current lug connectors (T1 and T2) are tightly secured to
the EVM PCB for low contact resistance. To minimize risk of potential electrical shock hazard, deenergize EVM
followed by use of a screw-driver, while clasping the nut on the PCB bottom side with a crescent wrench.
It may be necessary to uninstall the nylon standoffs near the lug connectors before manipulating the
fasteners to avoid damaging them.
Connect the INA260EVM to the SM-USB-DIG board in the proper orientation, as shown in
that the two connectors are completely pushed together; loose connections can cause intermittent operation.

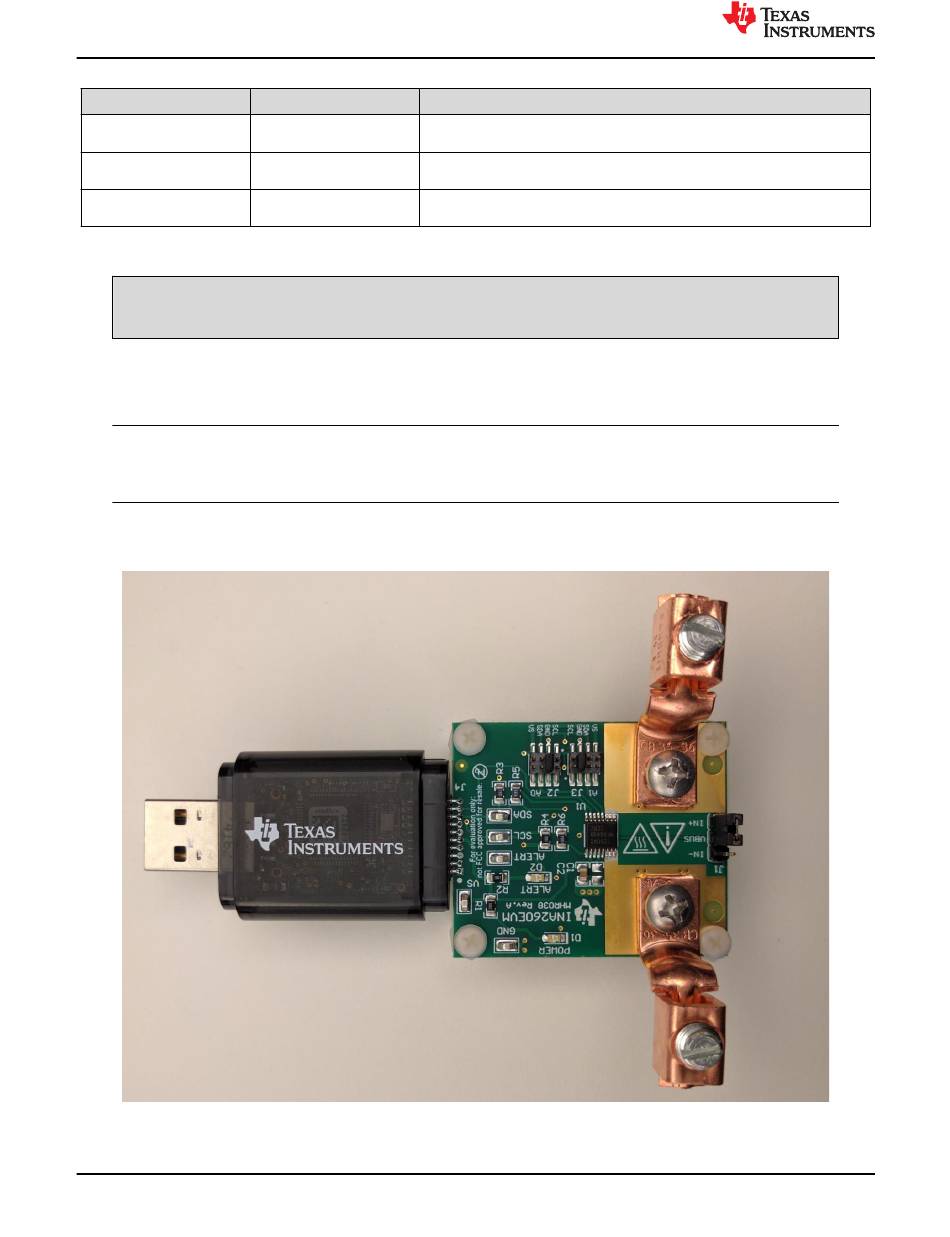

Figure 3-4. INA260EVM and SM-USB-DIG Connected in Proper Orientation
