3.2 INA260EVM Jumper Settings

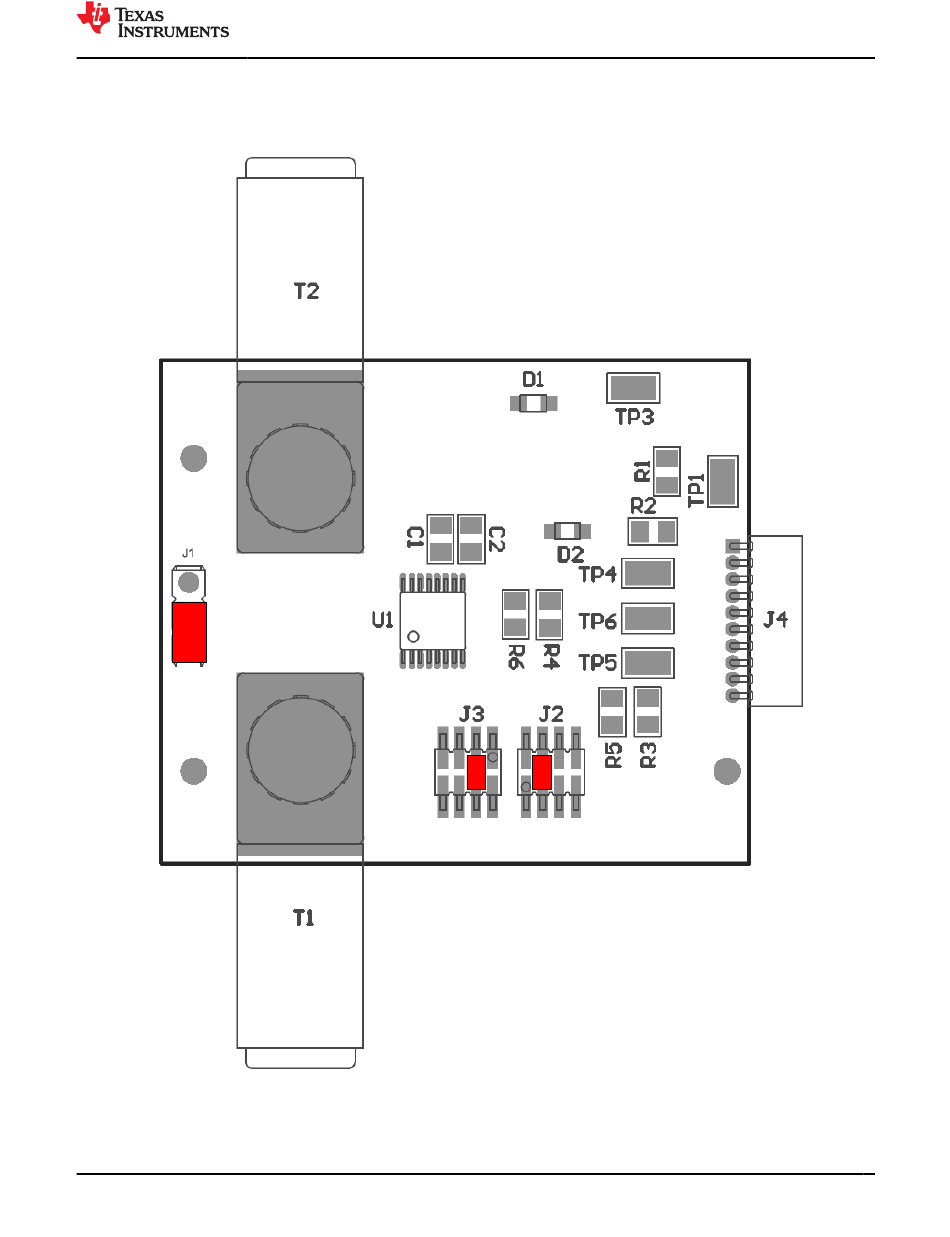

Figure 3-3
shows the default jumper configuration for the INA260EVM and
jumper. Ensure that the jumpers are installed in the correct positions, based on the required test conditions.
SBOU180A – NOVEMBER 2016 – REVISED MARCH 2023
Submit Document Feedback
Figure 3-3. INA260EVM Default Jumper Settings
Copyright © 2023 Texas Instruments Incorporated
INA260EVM-PDK (Rev A) Setup
Table 3-1
explain the purpose of each
