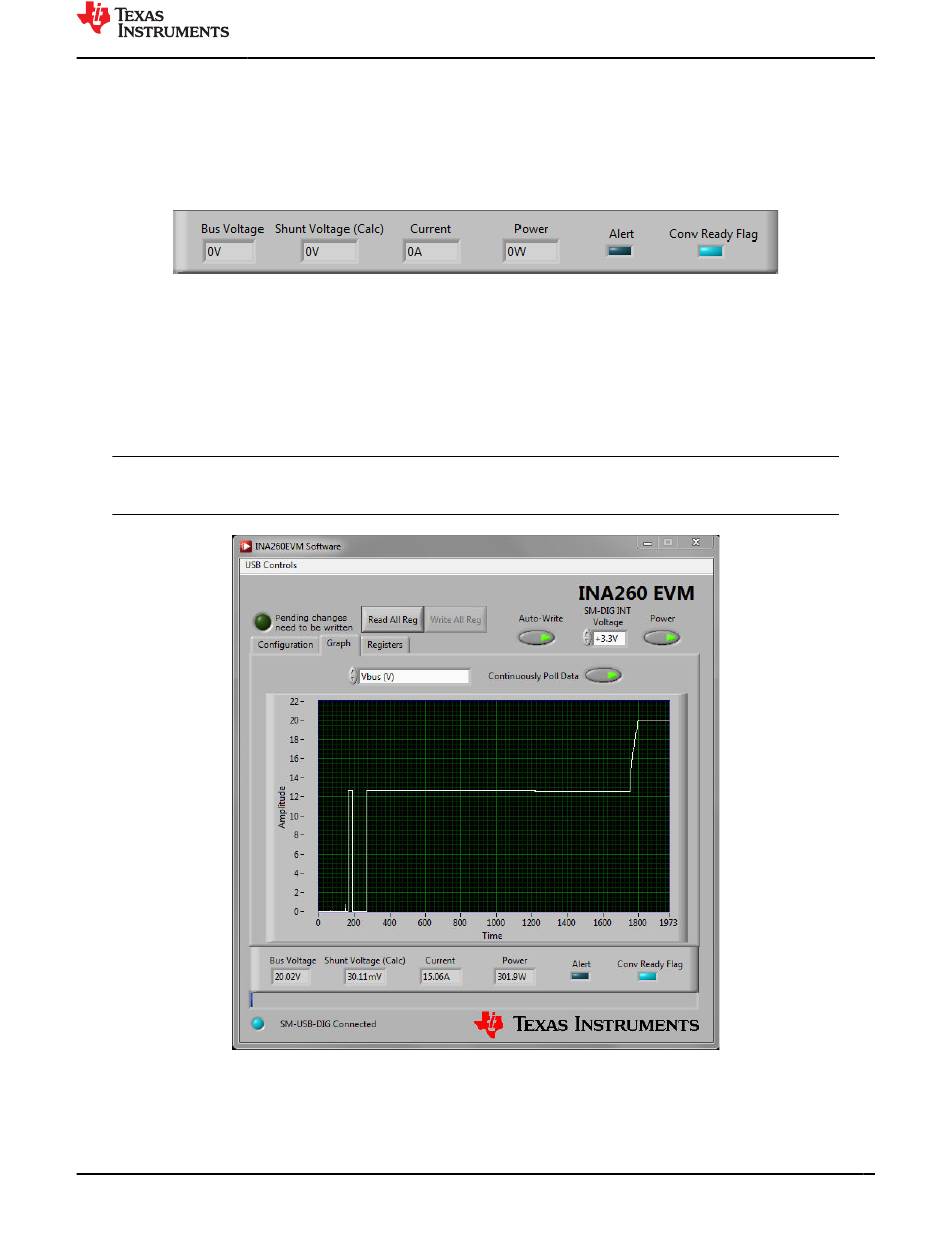

4.2 Results Bar

The contents of the INA260 output registers are appropriately scaled and displayed on the Results Bar located
at the bottom of the GUI window, as shown in
and Conversion Ready flags. Users can click the Read All Reg button to update the results every time the output
registers of the INA260 are read. Alternatively, users can enable the Continuously Poll Data button on the Graph
tool page to read the output registers continuously.

4.3 Graph Tool

The Graph tool buffers and plots measurement data over time, similar to an oscilloscope, as shown in
4-7. The Y-axis variable can be changed from the drop-down menu. Users can either click the Read All Reg
button to update the plot or enable the Continuously Poll Data button to read the output registers continuously.
Note that the output registers do not update until a new set of samples are acquired. To acquire new samples,
click the Write All Reg button or configure the INA260 for continuous trigger mode.
The recommended operating mode for using the Graph tool is Shunt and Bus, Continuous.
SBOU180A – NOVEMBER 2016 – REVISED MARCH 2023
Submit Document Feedback
Figure 4-6. The data displayed includes the states of the Alert
Figure 4-6. INA260 Results Bar
Note
Figure 4-7. Graph Tool Page
