RM48 Hercules Development Kit (HDK)
User's Guide
Literature Number: SPNU508B
September 2011 – Revised September 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hercules RM48 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments Hercules RM48

Summary of Contents for Texas Instruments Hercules RM48

  • Page 1 RM48 Hercules Development Kit (HDK) User's Guide Literature Number: SPNU508B September 2011 – Revised September 2013...

  • Page 2: Table Of Contents

    ........................LEDs ......................S2 DIP Switch ........................Jumpers ..................... S4, Power On Reset Switch ....................S3, System Reset Switch ......................Operation Notices Contents SPNU508B – September 2011 – Revised September 2013 Submit Documentation Feedback Copyright © 2011–2013, Texas Instruments Incorporated...
  • Page 3 Expansion Connector P3 (J11, Bottom One, TopView) ........................ 2-9. Demo LEDs ....................2-10. Other LEDs as Indicator ....................2-11. S2 DIP Switch Functions ........................2-12. Jumpers SPNU508B – September 2011 – Revised September 2013 List of Figures Submit Documentation Feedback Copyright © 2011–2013, Texas Instruments Incorporated...

  • Page 4: Preface

    This document describes the board level operations of the RM48 Hercules™ Development Kit (HDK). The HDK is based on the Texas Instruments RM48L952 Microcontroller. The RM48 HDK is a table top card that allows engineers and software developers to evaluate certain characteristics of the RM48L952 microcontroller to determine if the microcontroller meets the designer’s application requirements as well as...

  • Page 5: Introduction

    Introduction This development kit provides a product-ready hardware and software platform for evaluating the functionality of the Texas Instruments RM48 microcontroller family. Schematics, list of materials, and PCB layout are available to ease hardware development and reduce time to market.

  • Page 6: Hdk Board Block Diagram

    – Type A to mini B USB cable for using on board XDS100V2 JTAG emulator – Ethernet cable – Flashlight for light sensor demo • CCS DVD Containing: – Texas Instruments’ Code Composer Studio™ Integrated Development Environments (IDE) • Hercules DVD Containing: – Hercules Safety Demos – Hardware Abstraction Layer Code Generator (HALCoGen) –...

  • Page 7: Hdk Specifications

    (P1), a 2.5 mm, barrel-type plug. Internally, the +12 V input is converted into +1.2 V, +3.3 V and +5.0 V using Texas Instruments swift voltage regulators and PTH power module. The +1.2 V supply is used for the MCU core while the +3.3 V supply is used for the MCU's I/O buffers and other module on the board.

  • Page 8: Physical Description

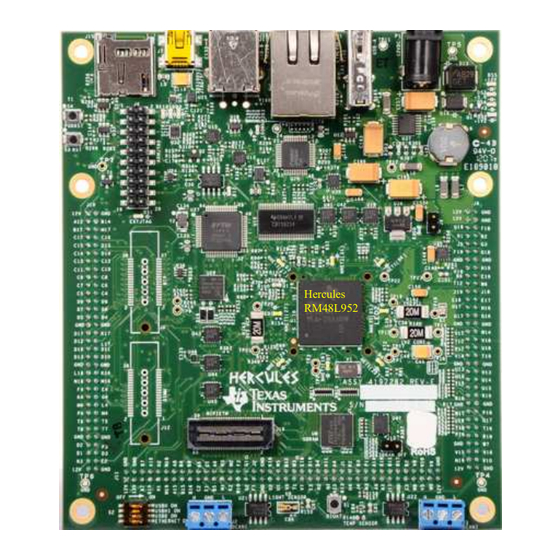

    +5 V to approximately +12 V only power supply. Figure 2-1 shows the layout of the RM48 HDK board. Hercules RM48L952 Figure 2-1. RM48 HDK Board, Interfaces Top Side Physical Description SPNU508B – September 2011 – Revised September 2013 Submit Documentation Feedback Copyright © 2011–2013, Texas Instruments Incorporated...

  • Page 9: Connectors

    The HDK board has 16 interfaces to various peripherals. These interfaces are described in the following sections. RM48L952 Figure 2-2. Connectors on RM48 HDK SPNU508B – September 2011 – Revised September 2013 Physical Description Submit Documentation Feedback Copyright © 2011–2013, Texas Instruments Incorporated...

  • Page 10: 20-Pin Arm Jtag Header

    The J1 connector is used to provide a 10/100 Mbps Ethernet interface. This is a standard RJ-45 connector. The cable end pinout for the J1 connector is shown in Table 2-3. Physical Description SPNU508B – September 2011 – Revised September 2013 Submit Documentation Feedback Copyright © 2011–2013, Texas Instruments Incorporated...

  • Page 11: Can Interface

    2.2.4 J19, MIPI ETM Connector Figure 2-4 Table 2-4 show the 60 pin MIPI header. Pin 1 Figure 2-4. J19, 60 Pin MIPI ETM Header SPNU508B – September 2011 – Revised September 2013 Physical Description Submit Documentation Feedback Copyright © 2011–2013, Texas Instruments Incorporated...

  • Page 12: J7, Xds100V2 Usb Jtag Interface

    IDE, Code Composer Studio. The signals on this connector are shown in Table 2-5. Table 2-5. J7, XDS100V2 USB JTAG Interface Pin Number Signal Name USBVDD USBVSS Physical Description SPNU508B – September 2011 – Revised September 2013 Submit Documentation Feedback Copyright © 2011–2013, Texas Instruments Incorporated...

  • Page 13: P1, +5 V To +12 V Input

    A/D expansion. There are three daughter card interfaces: J9, J10, J11. These connectors are described in Table 2-6. SPNU508B – September 2011 – Revised September 2013 Physical Description Submit Documentation Feedback Copyright © 2011–2013, Texas Instruments Incorporated...

  • Page 14: J9, J10, And J11 On Hdk

    MibSPI5SIMO[3] MibSPI5SOMI[3] AD1IN[1] AD1IN[0] AD1IN[3] AD1IN[2] AD1IN[5] AD1IN[4] AD1IN[7] AD1IN[6] AD2IN[1] AD2IN[0] AD2IN[3] AD2IN[2] AD2IN[5] AD2IN[4] AD2IN[7] AD2IN[6] AGND AD1IN[9] AD1IN[8] Physical Description SPNU508B – September 2011 – Revised September 2013 Submit Documentation Feedback Copyright © 2011–2013, Texas Instruments Incorporated...

  • Page 15: Expansion Connector P2 (J10, Right, Bottomview)

    EMIFDATA[3] EMIFDATA[2] EMIFDATA[5] EMIFDATA[4] EMIFDATA[7] EMIFDATA[6] EMIFDATA[9] EMIFDATA[8] EMIFDATA[11] EMIFDATA[10] EMIFDATA[13] EMIFDATA[12] EMIFDATA[15] EMIFDATA[14] SPI2_SOMI EMIF_nWAIT SPI2_SIMO SPI2_CS1 SPI2_CS0 SPI2_CLK EXP_12V SPNU508B – September 2011 – Revised September 2013 Physical Description Submit Documentation Feedback Copyright © 2011–2013, Texas Instruments Incorporated...

  • Page 16: Leds

    LEDs DS2, DS3, DS4, and DS5 indicate the presence of the power (+1.2 V, +5 V, 3.3 V, and 12 V) s on the board. The LED functions are summarized in Table 2-9 Table 2-10. Physical Description SPNU508B – September 2011 – Revised September 2013 Submit Documentation Feedback Copyright © 2011–2013, Texas Instruments Incorporated...

  • Page 17: S2 Dip Switch

    “OFF” position and should remain in that position when completing the steps in this user's guide. Figure 2-7. DIP Switch Settings SPNU508B – September 2011 – Revised September 2013 Physical Description Submit Documentation Feedback Copyright © 2011–2013, Texas Instruments Incorporated...

  • Page 18: Jumpers

    The reset signal from window watchdog will also assert a warm reset to the MCU. The warm reset can be invoked by pushing nRST button, or by RESET signals from XDS100 CPLD, ARM JTAG SREST. Physical Description SPNU508B – September 2011 – Revised September 2013 Submit Documentation Feedback Copyright © 2011–2013, Texas Instruments Incorporated...

  • Page 19: A Operation Notices

    Code Composer Studio support is available via a forum at: http://community.ti.com/forums/138.aspx • Hercules MCU support is available via a forum at: http://www.ti.com/hercules-support SPNU508B – September 2011 – Revised September 2013 Operation Notices Submit Documentation Feedback Copyright © 2011–2013, Texas Instruments Incorporated...
