Replacement Of Control Module - Pylontech PowerCube-X1-V2 Operation Manual

to chapter 3.8

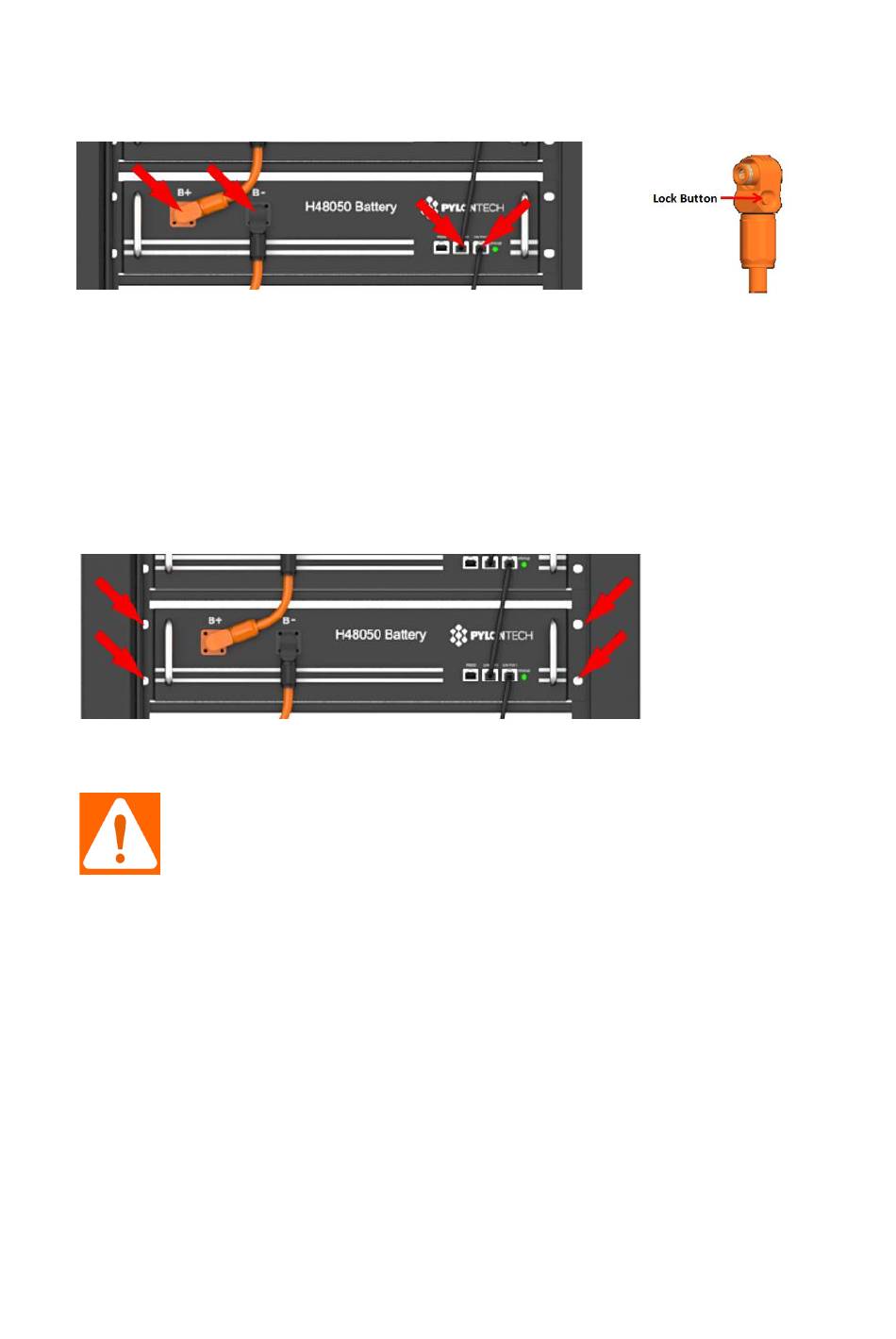

5.2.1.3 Pull out the Plug of Power Cable +/-. Pull out the plug of
communication cable.
Danger: the power cables and plugs still have high voltage DC power
from serial connected battery modules (battery module can't be
turned off), must be careful to handle the Power plugs.
5.2.1.4 Dismantle the 4 screws of the battery module's front face.
5.2.1.5 Handle the battery module out of the rack, and put it to
the appoint place.
Warning: Single battery module is 24kg/32kg. If without
handling tools must more than 1 personnel to handling with
it. If install in high place of the rack it must more than
2 personnel.
5.2.1.6 Install the new battery module (see before 5.2.1.1). And
connect the cables. Refer to chapter 3.6.
5.2.1.7 Turn on this battery string. Refer to chapter 3.7.

5.2.2. Replacement of Control module

5.2.1.1 Turn off the whole battery string's power. Must confirm the
D+ and D- terminal are without power. The turn off progress refer
to chapter 3.8
