3.5. Mechanical and Electrical Installation
3.5.1. Installation Notes
Warning: The battery rack is IP00. It must be installed in
a restricted access area;
Warning: The PowerCube-X1/X2-V2 is high voltage DC system,
operated by qualified and authorized person only.
3.5.2. Mechanical Installation of the battery rack.
If without handling tools must have more than 4 men to handling
with it.
The rack must be fixed on the basement and carriage on the wall
with M10 screws.

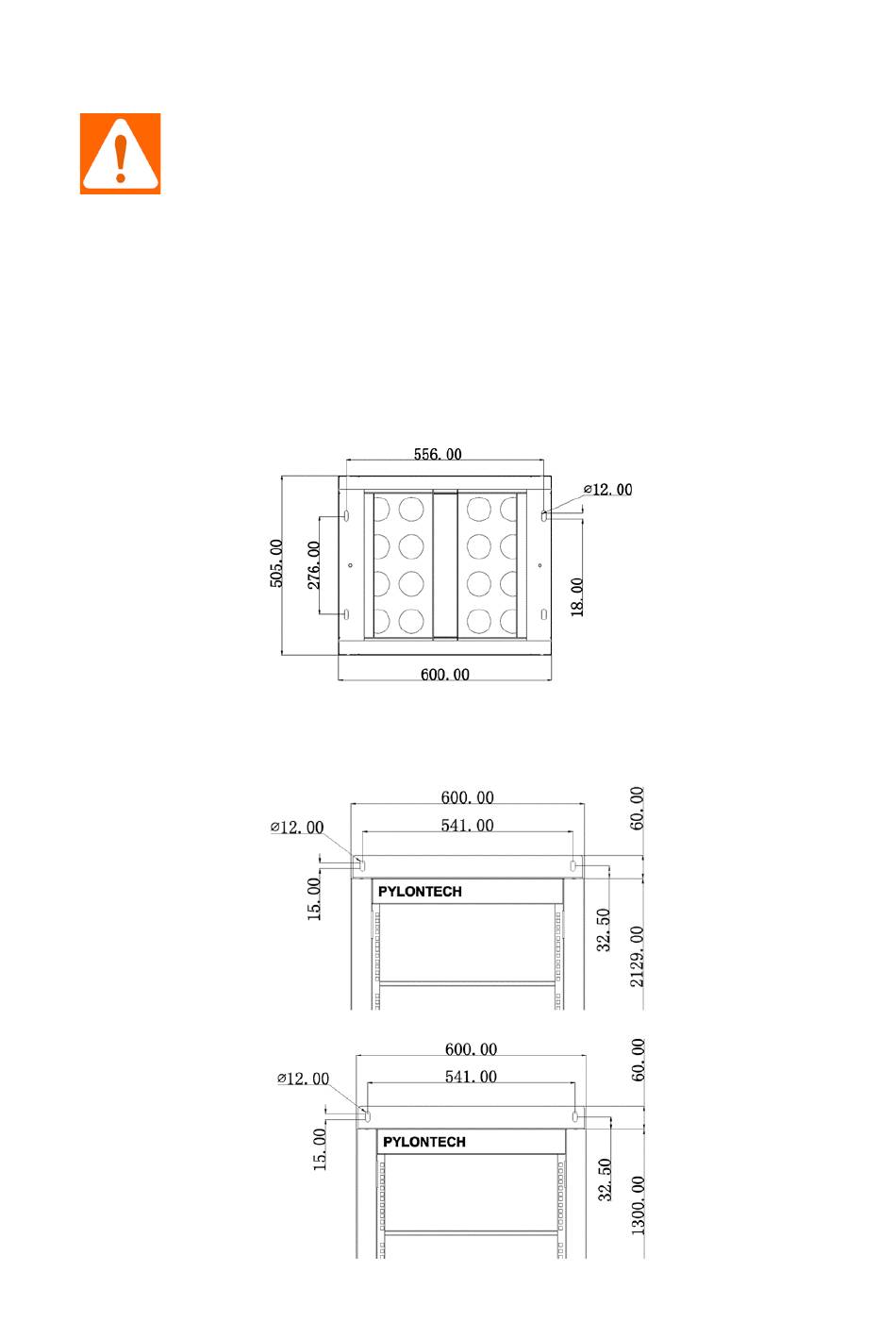

Battery rack basement holes bitmap (unit: mm):
Battery rack wall fixed holes bitmap (unit: mm):
Front side
