3.5.3. Mechanical Installation of the battery module

Single battery module is 24/32kg. If without handling tools must

have more than 1 man to handling with it.

Install the buckle nuts. The position of nuts must meet the position

of the battery modules.

Install the all battery modules in. Each module uses 4 screws to

fix.

Install the buckle nuts. The position of nuts must meet the position

of the control module (BMS).

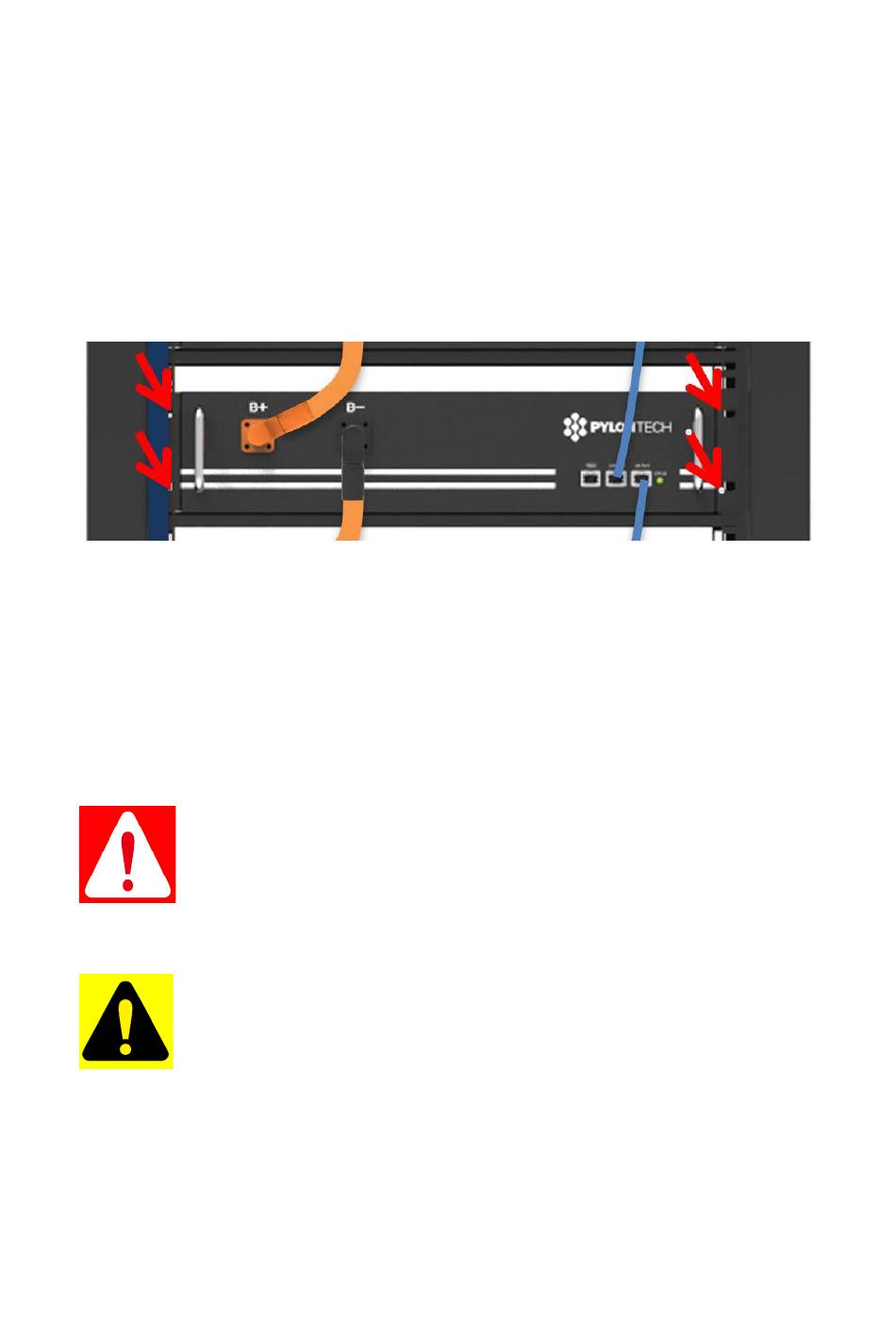

Install the control module (BMS) in. Each module uses 4 screws to

fix.

Danger: The battery system is high voltage DC system.

Must make sure the grounding of the rack is stable and

reliable.

Danger: All the plugs and sockets of the power cables

must be orange to orange and black to black. Otherwise it will cause

personal injury.

Danger: No short circuit or reserved connection of the

battery system's anode and cathode.

Caution: Wrong communication cables connection will cause

the battery system failure.
