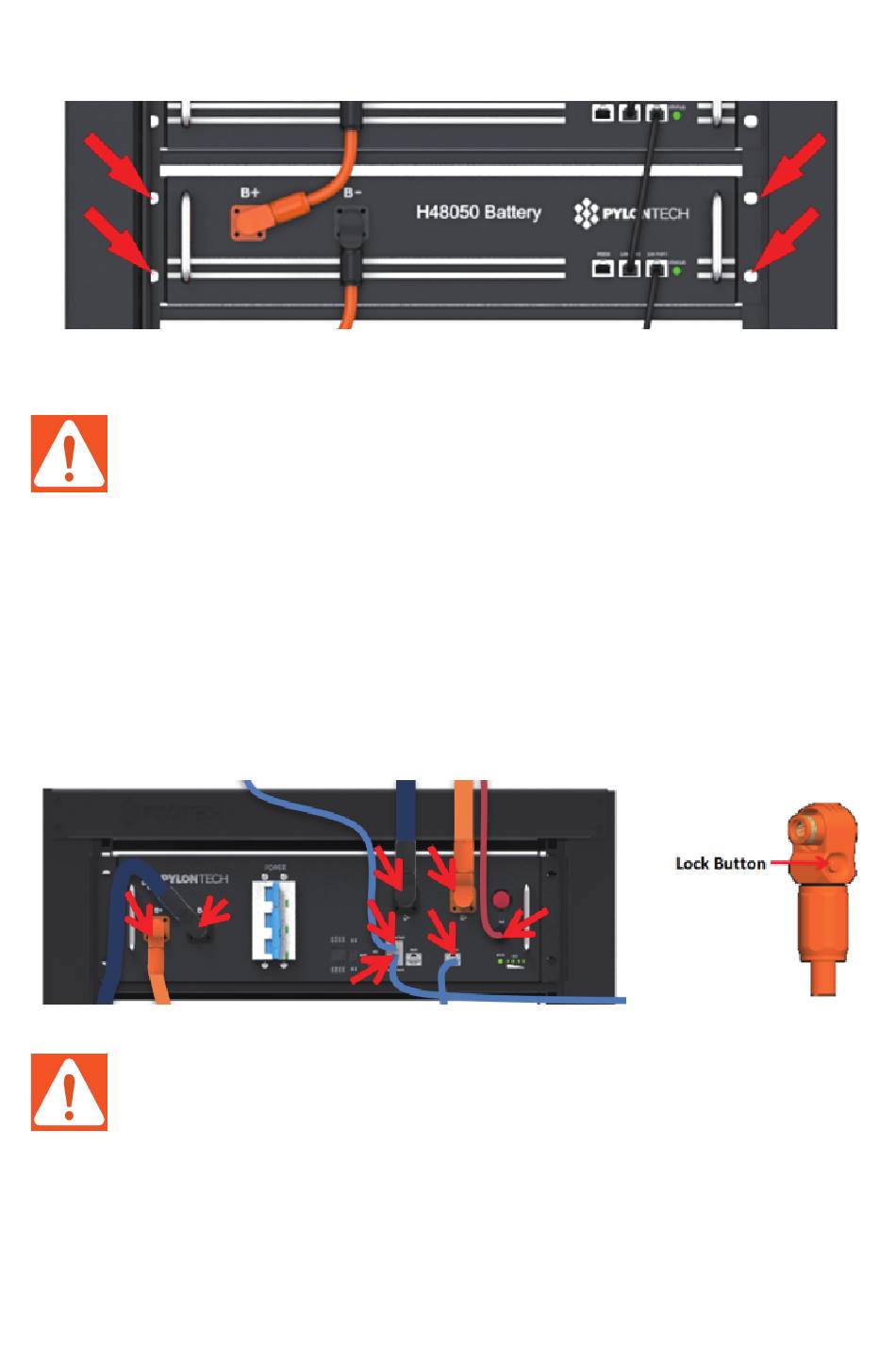

5.2.1.4 Dismantle the 4 screws of the battery module's front face.
5.2.1.5 Handle the battery module out of the rack, and put it to the appoint place.
Warning: Single battery module is 24kg/32kg. If without handling tools must more than 1
personnel to handling with it. If install in high place of the rack it must more than 2 personnel.
5.2.1.6 Install the new battery module (see before 5.2.1.1). And connect the cables. Refer to
chapter 3.6.
5.2.1.7 Turn on this battery string. Refer to chapter 3.7.

5.2.2.Replacement of Control module

5.2.1.1 Turn off the whole battery string's power. Must confirm the D+ and D- terminal are without
power. The turn off progress refer to chapter 3.8
5.2.2.2 Pull out the plugs of Power Cables and the communication plugs.
Danger: the power cables still have high voltage DC power from another battery module,
must be careful to handle the Power plugs.
