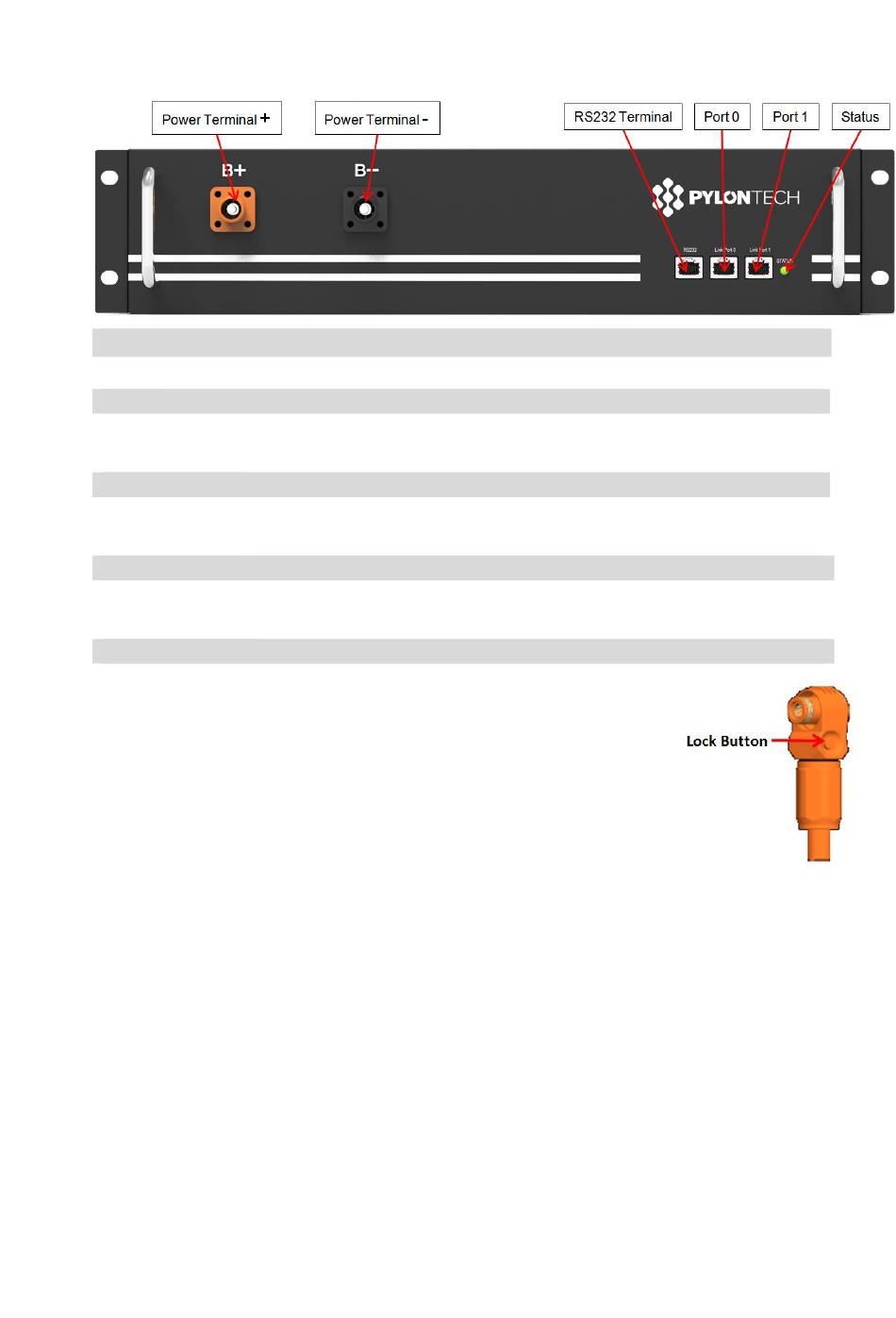

2.4.3. Battery Module Front Interface
Power Terminal +/-
To connect battery series power cables.
Status
Status light: to show the battery module's status (RUN●, Alarm and
Protection●).
RS232 Terminal
Console Communication Terminal: (RJ45 port) follow RS232 protocol, for
manufacturer or professional engineer to debug or service.
Link Port 0, 1
Link Port 0, 1 Communication Terminal: for communication between
multiple serial battery modules and controller module.
Power Terminals
Power cable terminals: there are two pairs of terminals
with same function, one connect to equipment, the other
one paralleling to other battery module for capacity
expanding. For each single module, each terminal can
achieve charging and discharging function.
For power cables uses AMPHENOL connectors. Must keep
pressing the Lock Button during pulling out the power
plug.
10
