Pylontech PowerCube-H1-V2 Operation Manual page 15

External Power Terminal D+/D-
Connect battery system with Power Conversion System.
Dry Contact Terminal
Dry Contact Terminal: provided 2 input and 4 output dry contact signal.
In/out
Function
In1 Internal Using ONLY
For wake up or
In2
For Emergency Stop signal**
Out1 Stop Charge
Out2
Stop Discharge
Out3
Error
Out4 Current Limit
Reset
Reset Button: Long press this button to restart the battery system.
ADD

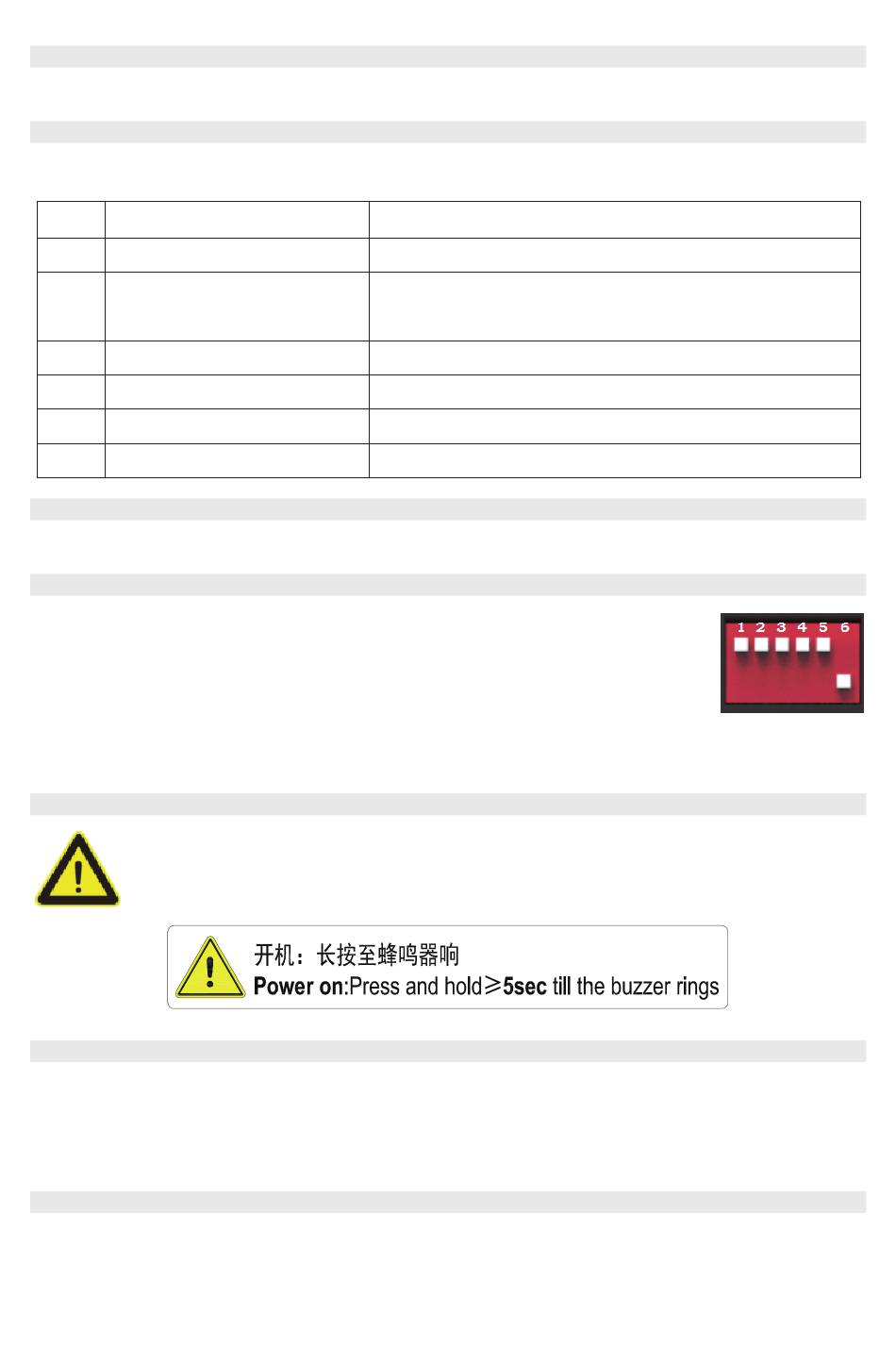

ADD Switch is a 6 bit dial switches to manually distribute the communication address of
the battery system. Downward position is OFF, means "0". Upward position is ON,
means "1". For battery controller, 1st bit to 5th bit is for address allocation, and the 6th
bit dial switch support a 120Ω resistance (Terminal Resistance), the upward
position(ON) of the 6th bit means access the resistance, and the downward
position(OFF) means no access resistance. The terminal resistance needs to be activat-
ed ON at the first and last node.
Start Button
Start function: press more than 5 sec until the buzzer rings, to turn on controller.
Black start function: when system turned on and during self-check process , press and hold
the start button again for more than 10sec, and relay will close for 10 mins.
RS485(Link Port A and B)
RS485 Communication Terminal: (RJ45 RS485 Link port A) follow Modbus RTU protocol, for external
communication between battery system and Power Conversion System.
In a multi-strings structure, these two ports （RJ45 RS485 Link port A & B） are used to connect the two
control modules of the front and rear nodes.
LAN
Console Communication Terminal: (RJ45 port) follow Modbus TCP protocol, only used for communication
between the master control module and upper controller.
Open and close state
For wake up signal serial connection using ONLY.
Always close, when open will switch off the system.
Always close, when open shall stop charge.
Always close, when open shall stop discharge.
Always close, when open shall stop operation
Always close, when open shall limit current to ≤0.2C-rate
