3.6. Cable Connection

3.6.1. Caution

Danger: The battery system is high voltage DC system. Must make sure the grounding of the
rack is stable and reliable.
Danger: All the plugs and sockets of the power cables must be orange to orange and black to
black. Otherwise it will cause personal injury.
Danger: No short circuit or reserved connection of the battery system's anode and cathode.
Caution: Wrong communication cables connection will cause the battery system failure.

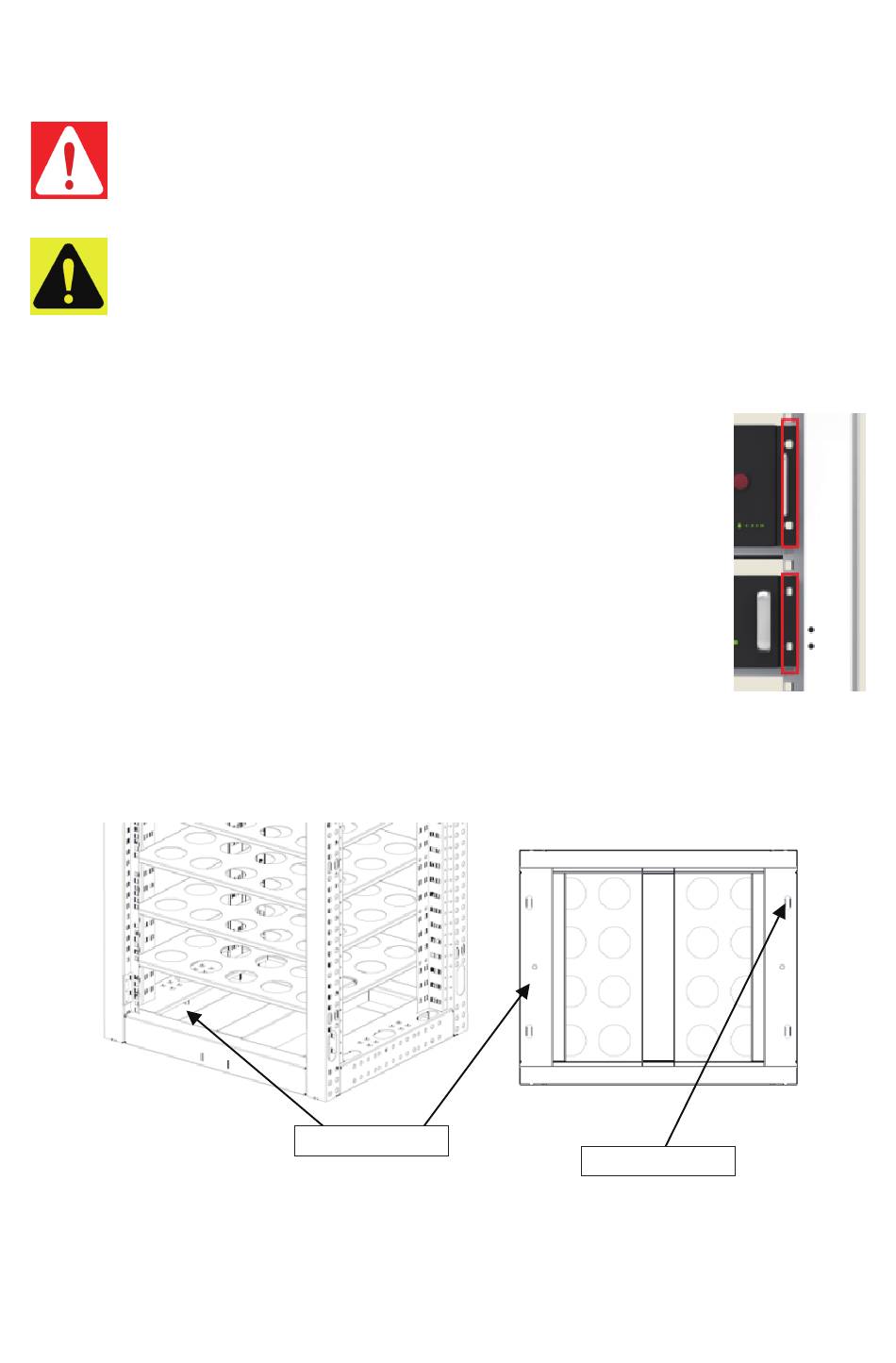

3.6.2. Grounding

The PowerCube-H1/H2-V2 modules' grounding is based on metal directly touch
between the module's surface and rack's surface. So it doesn`t need grounding
cables at all. If it uses normal rack, it should remove the paint at the corresponding
grounding point.
Rack Grounding:
If there is a grounding metal frame outside the rack, for example, the metal angle steel
frame at the bottom of the container, the fix hole of the fix frame can be fixed directly
with the metal frame of the container. Then through the grounding of the container to
ensure reliable grounding.
The cable shall be copper with yellow-green color.
If want to connect the ground cable, it can be connected to the M8 grounding bolt on
the frame base. Grounding cable must ≥10AWG.
Grounding Bolts
24 / 42
Fix Hole X 4
