User Guide
GETTING STARTED
The
ACE
evaluation software controls and configures the on-board
LTC2686
through the DC2026C.
SOFTWARE INSTALLATION PROCEDURES
Before connecting the DC2026C to the DC2904A-B, follow these
steps to set up the DC2904A-B for initial use in the ACE evaluation
software:
1. Download the ACE evaluation software package from the
DC2904A-B product page at
start the ACE evaluation software installation.
2. Open the ACEInstall_1.21.xxxx.xxxx.exe file and follow the
instructions in the folder to complete the software installation
process.
EVALUATION HARDWARE SETUP
When the ACE evaluation software installation is complete, follow
these steps to set up the DC2026C and the DC2904A-B together:
1. Connect the DC2026C to the DC2904A-B via the J1 connectors
with the ribbon cable provided (see
analog.com
www.analog.com/DC2904A
to
Figure
2).

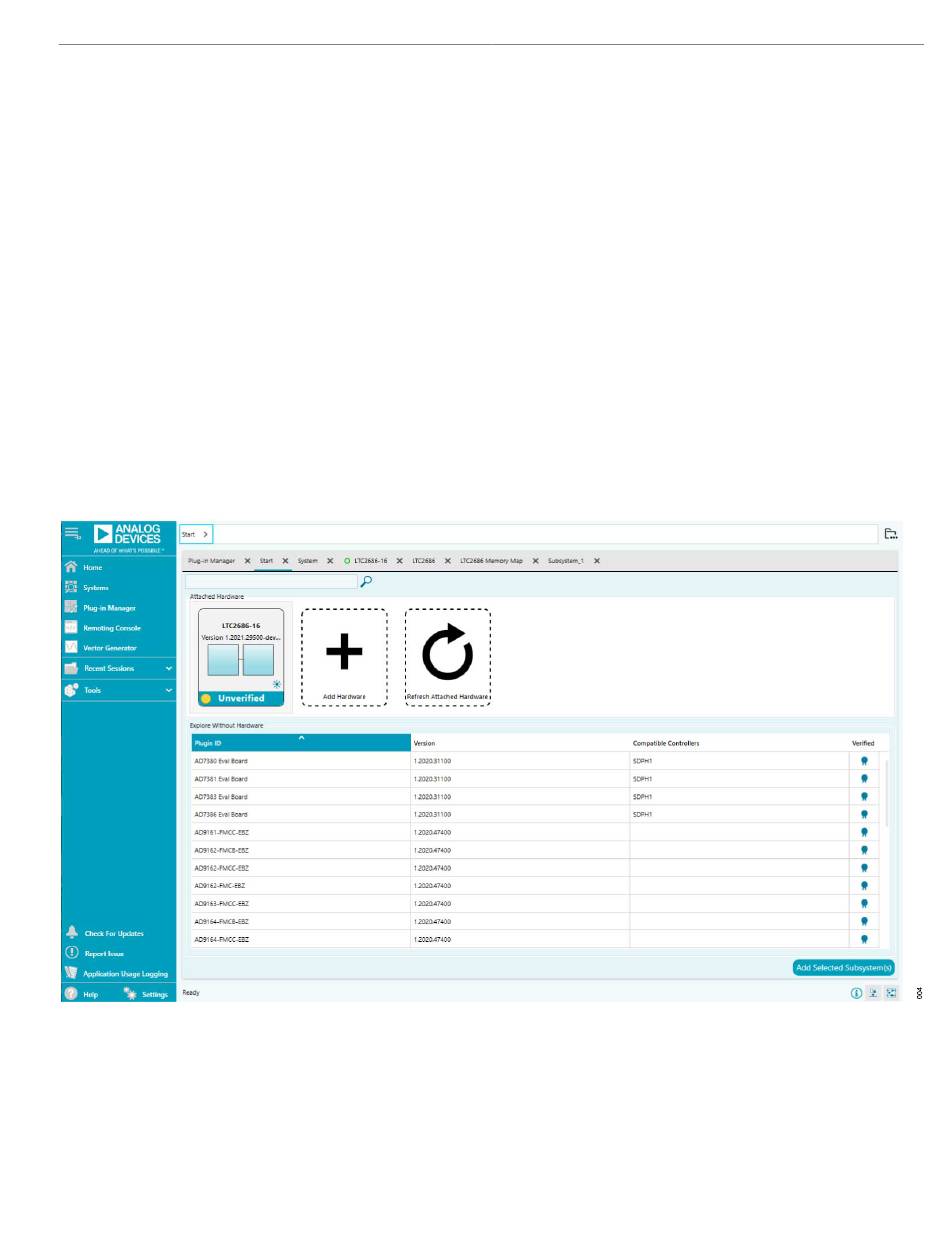

Figure 4. Interface Window
2. Connect the desired power supplies to E2 (V1+), E3 (GND),
and E4 (V−) on the DC2904A-B.
3. Connect the desired load to the appropriate channel on the
DC2904A-B.
4. Connect the load ground to a ground (GND) turrets (either E3
or E23) on the DC2904A-B.
5. Connect the DC2026C to a PC or laptop using the USB cable.
6. Start the ACE evaluation software (see the
section).
SOFTWARE OPERATION
To start the ACE evaluation software, from the Start menu, click
Analog Devices > ACE. The software window opens (see
4) until the software recognizes the DC2904A-B. When the software
recognizes the DC2904A-B, the main software window in
opens.
DC2904A
Software Operation
Figure
Figure 5
