GETTING STARTED
Enabling Dither Mode
After enabling the toggle view shown in
the Enabling Toggle Mode section, select the dither mode from the
Mode dropdown box to bring up the dither options (see
analog.com
Figure 6 as described in
Figure 7).

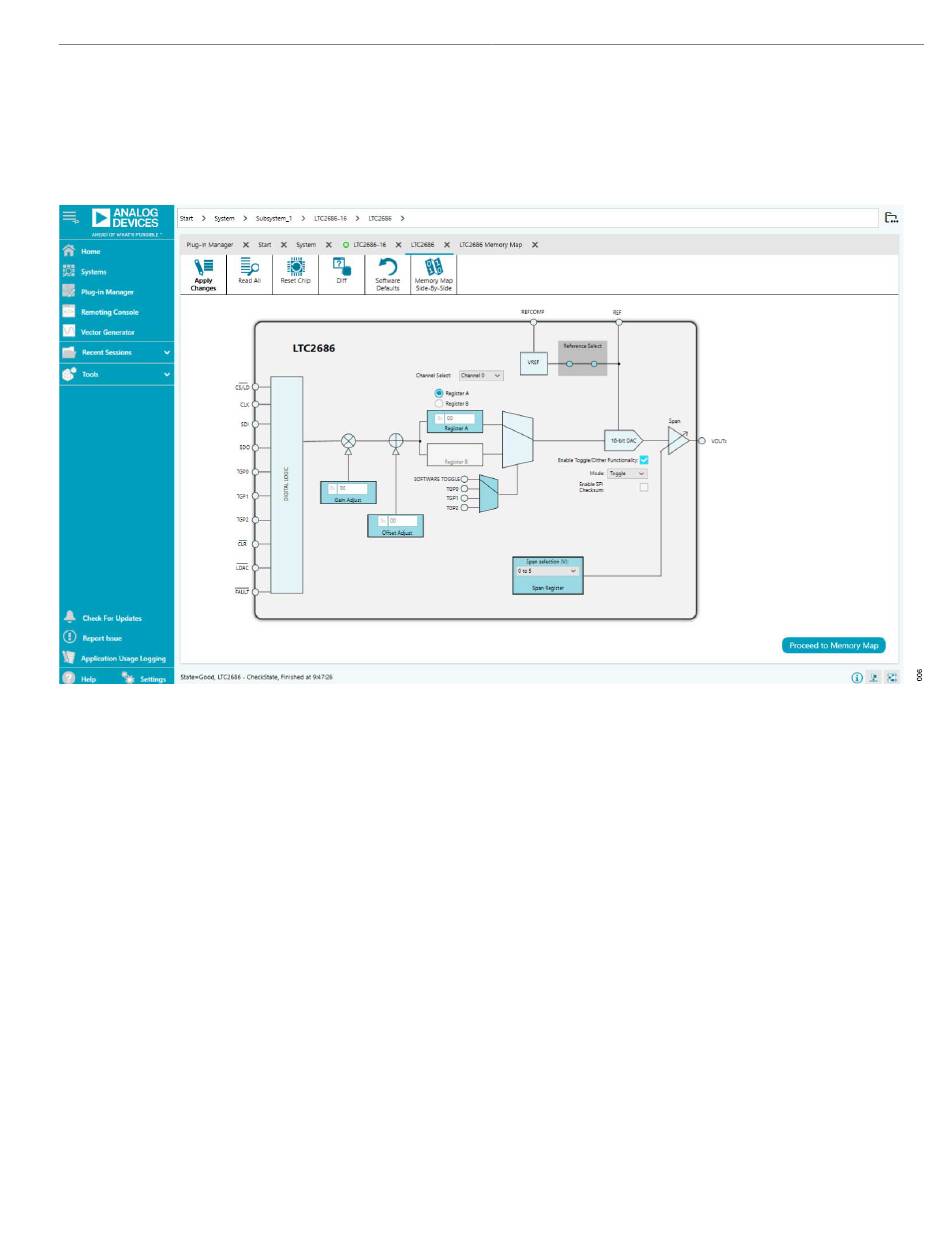

Figure 6. Toggle View
The default values for the dither phase (ⱷ
and N = 4. The phase and period of the dither can be modified
using the dropdown boxes to select from a fixed list of options.
