Low V
DESCRIPTION
Demonstration circuit 2910A is low V
and dual 2A output µModule DC/DC converter. The
board operates by default at a fixed 2MHz and can be
synchronized from 1MHz to 3MHz via the MODE/SYNC
pin. With its high switching frequency and current mode
architecture, a fast transient response to line and load
changes is possible without sacrificing stability. The
DC2910A can be used in forced continuous mode or pulse
skip mode for low noise, or in burst mode operation for
PERFORMANCE SUMMARY
PARAMETER
Input Voltage Range
Output Voltage, V
OUT
Maximum Output Current, I
OUT
Typical Efficiency
Peak Efficiency
Switching Frequency

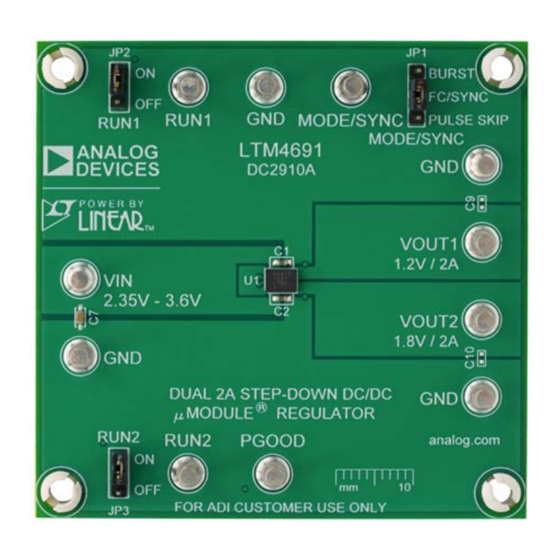

BOARD PHOTO
, High Efficiency, Dual 2A Step-down
IN
μModule DC/DC Converter
, high efficiency,
IN
Specifications are at T
CONDITIONS
V
= 2.35V – 3.6V, I
IN
OUT
V
= 2.35V – 3.6V
IN
V
= 3.3V, V
= 1.2V, I
IN
OUT1
V
= 3.3V, V
= 1.8V, I
IN
OUT2
V
= 3.3V, V
= 1.2V
IN
OUT1
V
= 3.3V, V
= 1.8V
IN
OUT2
DEMO MANUAL DC2910A
high efficiency at light loads. The demo board features
the
LTM
4691, which is available in a low profile 3mm
®
x 4mm x 1.2mm LGA package. Please see the LTM4691
datasheet for more detailed information.
It is recommended to read the data sheet for the LTM4691
prior to making any changes to the DC2910A.
Design files for this circuit board are
All registered trademarks and trademarks are the property of their respective owners.
= 25°C
A
= 0A to 2A
= 2A
OUT
= 2A
OUT
LTM4691
available.
VALUE
2.35V to 3.6V
V
= 1.2V
OUT1
V
= 1.8V
OUT2
2A
84%
88%
89%
92%
2MHz
Rev. 0
1
