UG-408

QUICK START GUIDE

RECOMMENDED QUICK START STEPS

To install the software, complete the following steps:
1. Install the AD7366/AD7367
CD. Ensure that the EVAL-SDP-CB1Z
nected from the USB port of the PC while installing the
software. The PC must be restarted after the installation.
2. Connect the EVAL-SDP-CB1Z
AD7366SDZ/EVAL-AD7367SDZ board as shown in Figure 2.
3. Screw the two boards together with the enclosed nylon
screw-nut set to ensure the boards connect firmly together.
software from the enclosed
board is discon-
board to the EVAL-

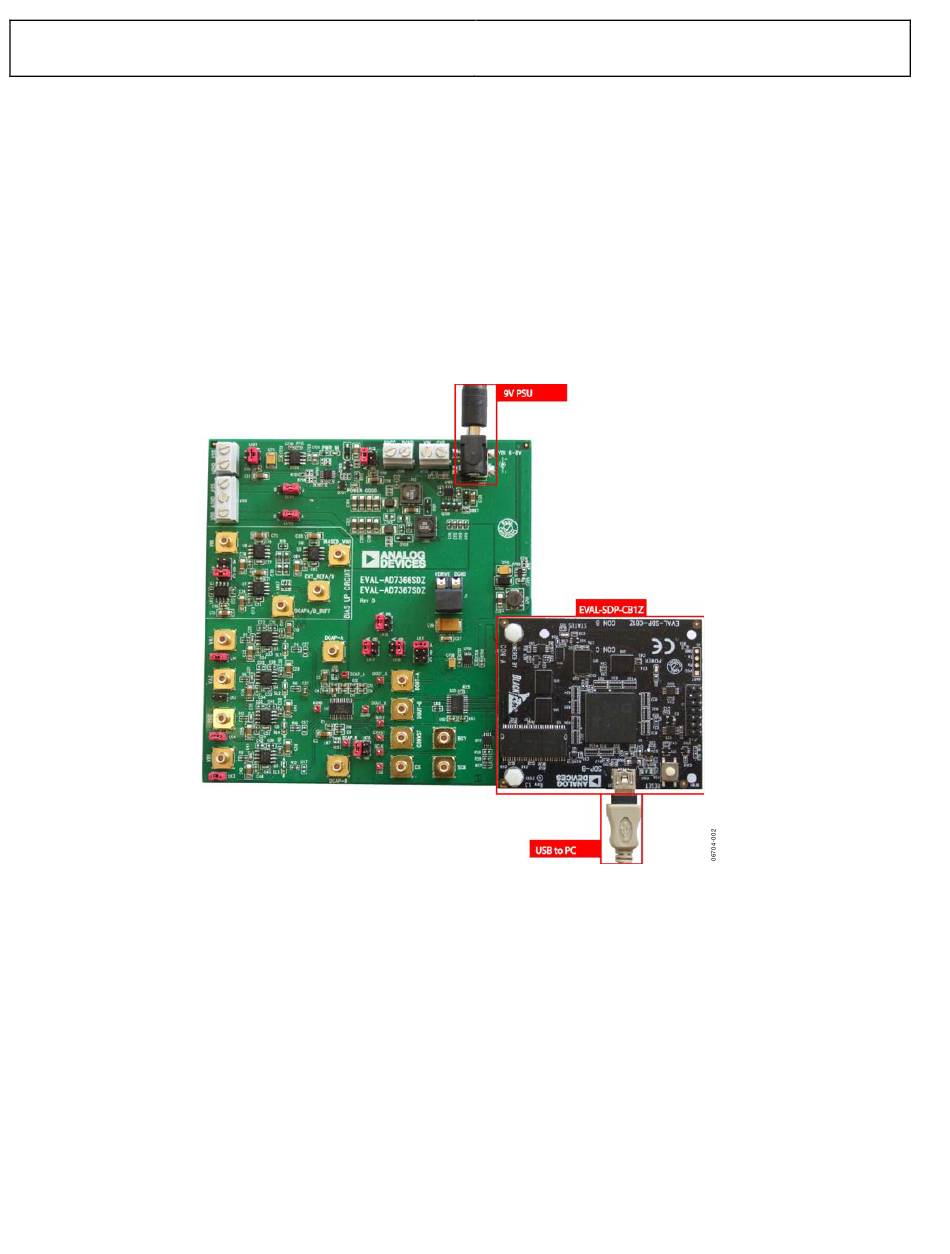

Figure 2. Hardware Configuration—Setting Up the Evaluation Board
Rev. A | Page 4 of 20
Evaluation Board User Guide
4. Connect the 9 V power supply adapter included in the
kit to connecter J702 on the EVAL-AD7366SDZ/
EVAL-AD7367SDZ board.
5. Connect the EVAL-SDP-CB1Z
USB cable. For Windows® XP, you may need to search for
the EVAL-SDP-CB1Z drivers. Choose to automatically
search for the drivers for the
prompted by the operating system.
6. Launch the EVAL-AD7366SDZ/EVAL-AD7367SDZ
software from the Analog Devices subfolder in the
Programs menu.
board to the PC via the
EVAL-SDP-CB1Z board if
