EVAL-AD7656-1/57-1/58-1SDZ QUICKSTART GUIDE

RECOMMENDED QUICK START GUIDE

To install the software do the following:
(1) Install the AD7656-1/57-1/58-1 Software from the
enclosed CD. Ensure the EVAL-SDP-CB1Z board is
disconnected from the USB port of the PC while
installing the software. The PC must be restarted after
the installation.
(2) Connect the EVAL-SDP-CB1Z board to the EVAL-
AD7656-1/57-1/58-1SDZ board as shown in Figure
1Figure 2.
(3) Screwing the two boards together with the enclosed
nylon screw-nut set will ensure the boards connect
firmly together.
(4) Connect the 9V power supply adapter included in the
(5) Connect the EVAL-SDP-CB1Z board to the PC via the
(6) Launch the EVAL-AD7656-1/57-1/58-1SDZ software

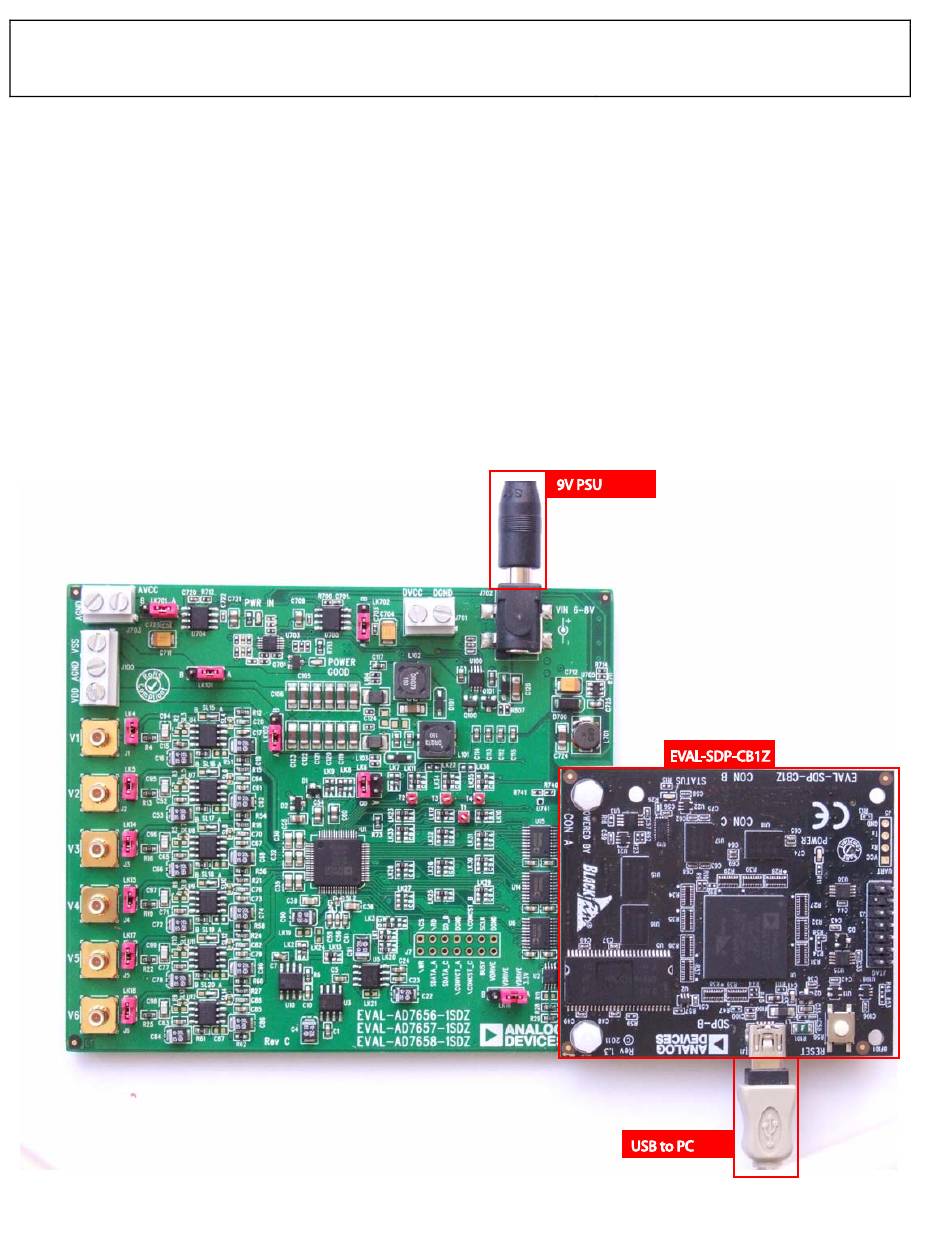

Figure 2 Evauation Board connection
.
Rev. PrA | Page 4 of 32
Evaluation Board User
kit to connecter J702 on the EVAL-AD7656-1/57-
1/58-1SDZ board.
USB cable. For Windows XP you may need to search
for the EVAL-SDP-CB1Z drivers. Choose to
automatically search for the drivers for the EVAL-
SDP-CB1Z board if prompted by the operating
system.
from the Analog Devices subfolder in the Programs
menu.
Guide
