Evaluation Board User Guide

WAVEFORM CAPTURE

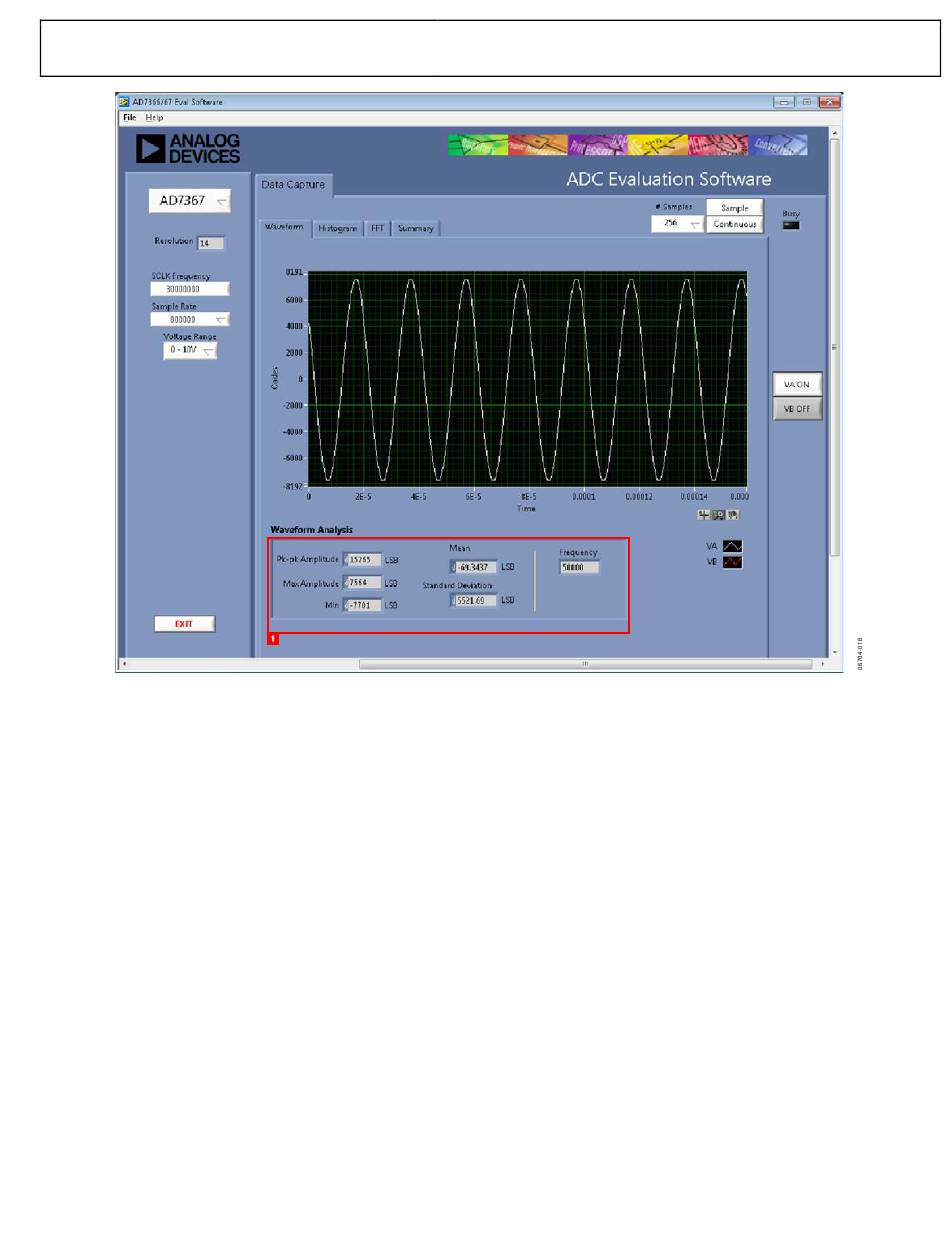

Figure 16 illustrates the waveform capture tab. The input signal
here is a 50 kHz sine wave.
Figure 16. Waveform Capture Tab
The waveform analysis (labeled 1) reports back the amplitudes
recorded from the captured signal in addition to the frequency
of the signal tone.
