Evaluation Board User Guide

SAVE FILE

The software can save the current captured data for later
analysis; the file format is .tsv (tab separated values) (see
Figure 20).
Users are prompted with a Save dialog box and should save to
an appropriate folder location

LOAD FILE

User is prompted with a load dialog box. User may have to
navigate to find these example files (see Figure 21). The default
location for the example files is C:\Program Files\Analog
Devices\AD7366\examples.

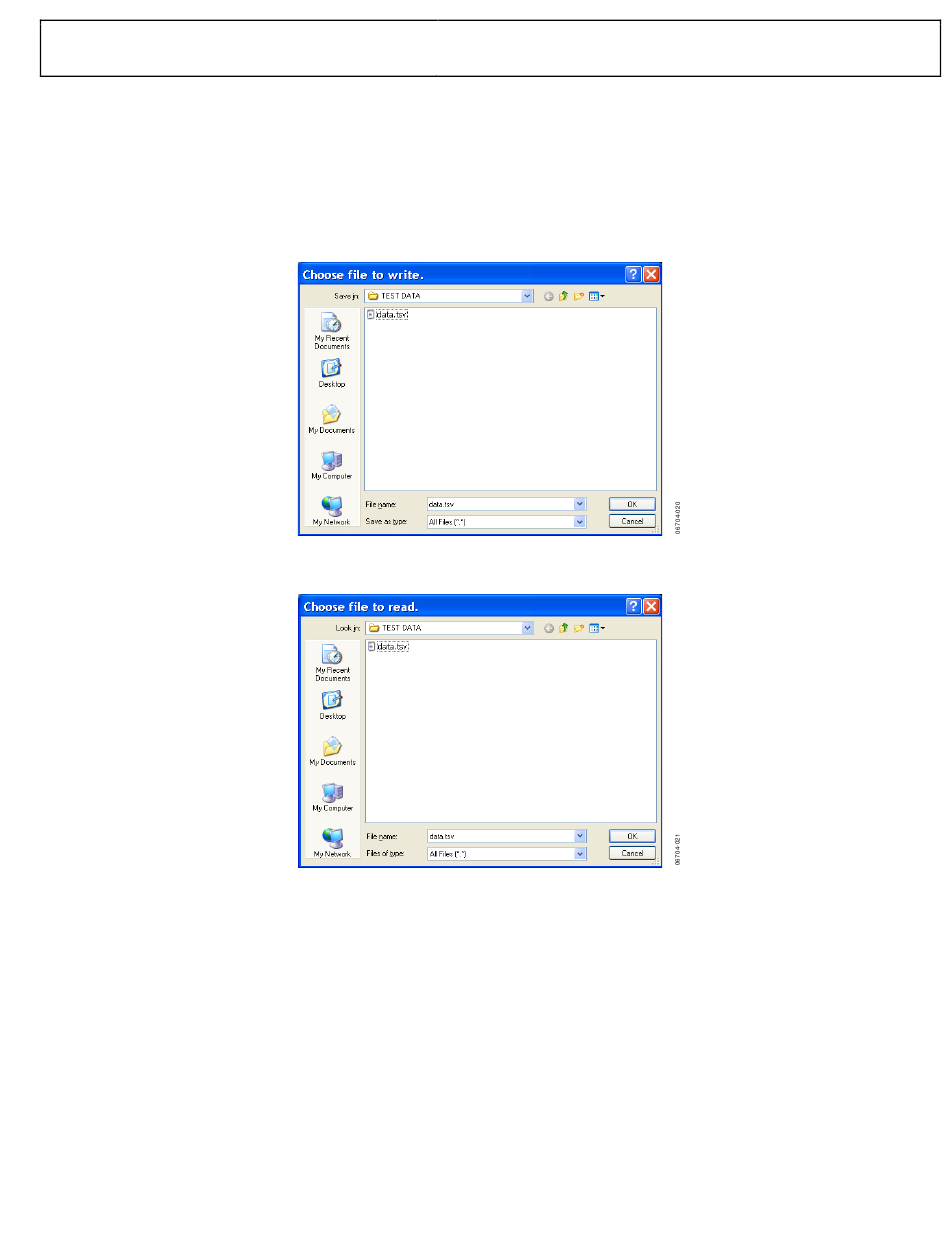

Figure 20. Save File Dialog Box
Figure 21. Load File Dialog Box
