QUICK START GUIDE

Take the following steps to begin to evaluate the EVAL-
AD4858FMCZ:
1. Download and install the ACE Software from the
page. If ACE is already installed on the computer, ensure that
the latest version is being used by clicking the Check For
Updates icon in the ACE Software sidebar, as shown in
2.

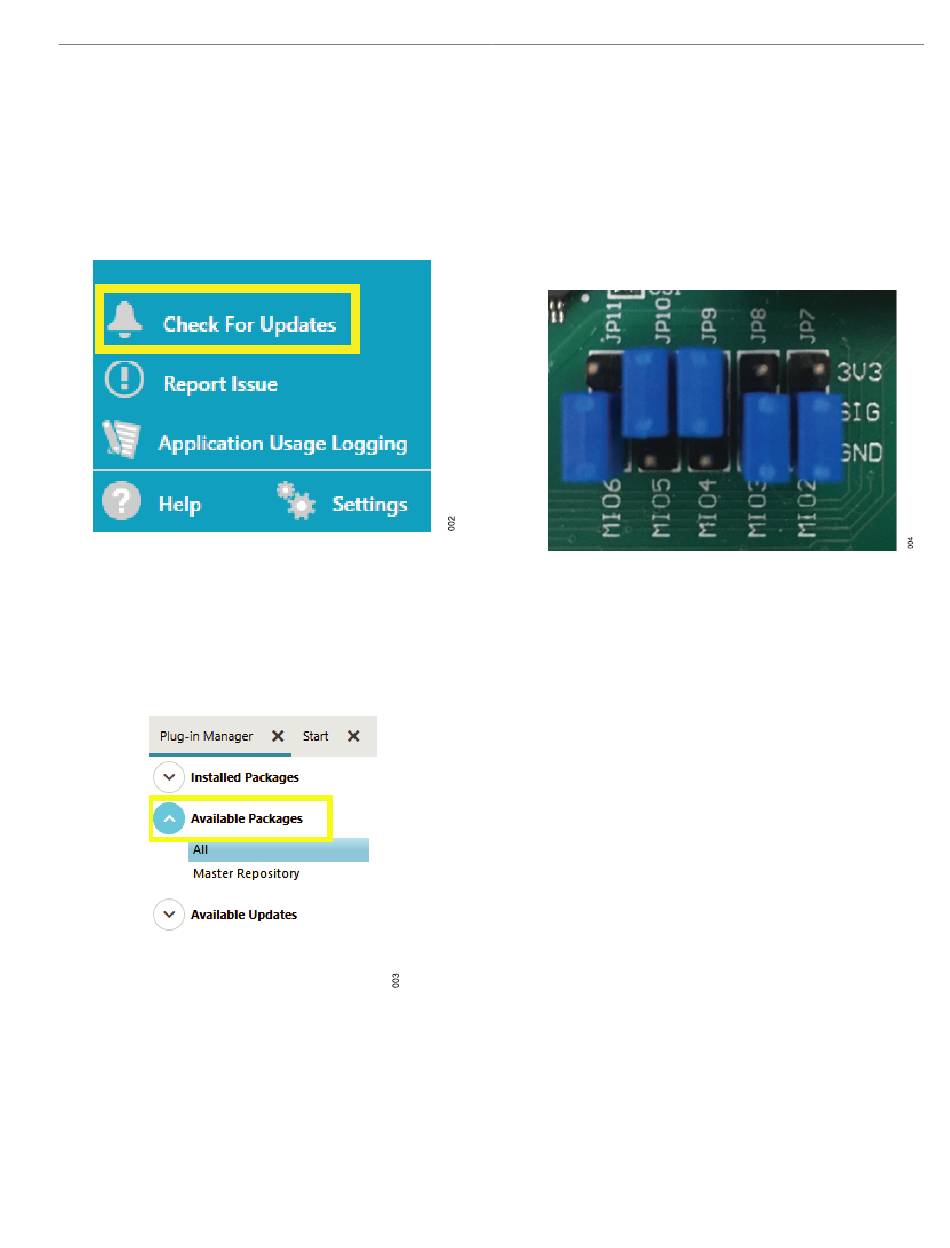

Figure 2. Check For Updates Option in the ACE Sidebar
2. Run the ACE Software, select the Plug-in Manager from
the ACE sidebar to install the board plug-in that supports the
AD4858 evaluation board, and select Available Packages, as
shown in Figure 3. You can use the search field to help filter the
list of boards to find the AD4858 board. See the
- Using ACE and Installing Plug-ins
tion.
Figure 3. Plug-in Manager Option in the Sidebar
3. Insert the Micro-SD card (with the adapter) that was provided in
the evaluation board kit into the SD card slot on the underside
analog.com
ACE web
Figure
ACE Quickstart
guide for additional informa-
of the ZedBoard. If there is a requirement to reimage or create
a new Micro-SD card, see the following instructions found
on the Analog Devices, Inc., website:
support for ACE Evaluation.
4. Ensure the ZedBoard boot configuration jumpers are set to use
the Micro-SD card as shown in
damage when JVIO is changed as described in
that the VADJ SELECT jumper is set to the correct voltage for
the EVAL-AD4858FMCZ.
Figure 4. ZedBoard Boot Configuration Jumpers
5. Connect the EVAL-AD4858FMCZ to the FMC connector on the
ZedBoard.
6. Connect the USB cable from the computer to the J13/USB OTG
port, and connect the 12 V power supply to J20/DC input.
7. Slide the SW8/POWER switch in the ZedBoard to the on
position. The green LD13/POWER LED turns on and is followed
by the blue LD12/DONE LED (within the ZedBoard). The DS1
LED in the EVAL-AD4858FMCZ also turns on.
8. The red LD7 LED blinks approximately 20 sec to 30 sec later,
indicating that the boot process is complete.
9. Launch the ACE Software from the Analog Devices folder in
the Windows Start menu. The EVAL-AD4858FMCZ appears in
the ACE Start in the Attached Hardware view, as shown in
Figure 5.
If the EVAL-AD4858FMCZ does not appear on the Attached
Hardware view, the plug-in can still be launched from the Ex-
plore Without Hardware menu. Click Proceed To Documen-
tation to open the plug-in documentation for troubleshooting
help as well as descriptions of each window and features within
the plug-in.
EVAL-AD4858
ADI Kuiper Linux with
Figure 4. To avoid potential
Table 1, ensure
Rev. A | 3 of 11
