EVAL-AD7276SDZ QUICKSTART GUIDE
RECOMMENDED QUICK START GUIDE
To install the software do the following:
(1) Install the AD7276 Software from the enclosed CD.
Ensure the EVAL-SDP-CB1Z board is disconnected
from the USB port of the PC while installing the
software. The PC must be restarted after the
installation.
(2) Connect the EVAL-SDP-CB1Z board to the EVAL-
AD7276SDZ board as shown in
(3) Figure 2.
(4) Screwing the two boards together with the enclosed
nylon screw-nut set will ensure the boards connect
firmly together.

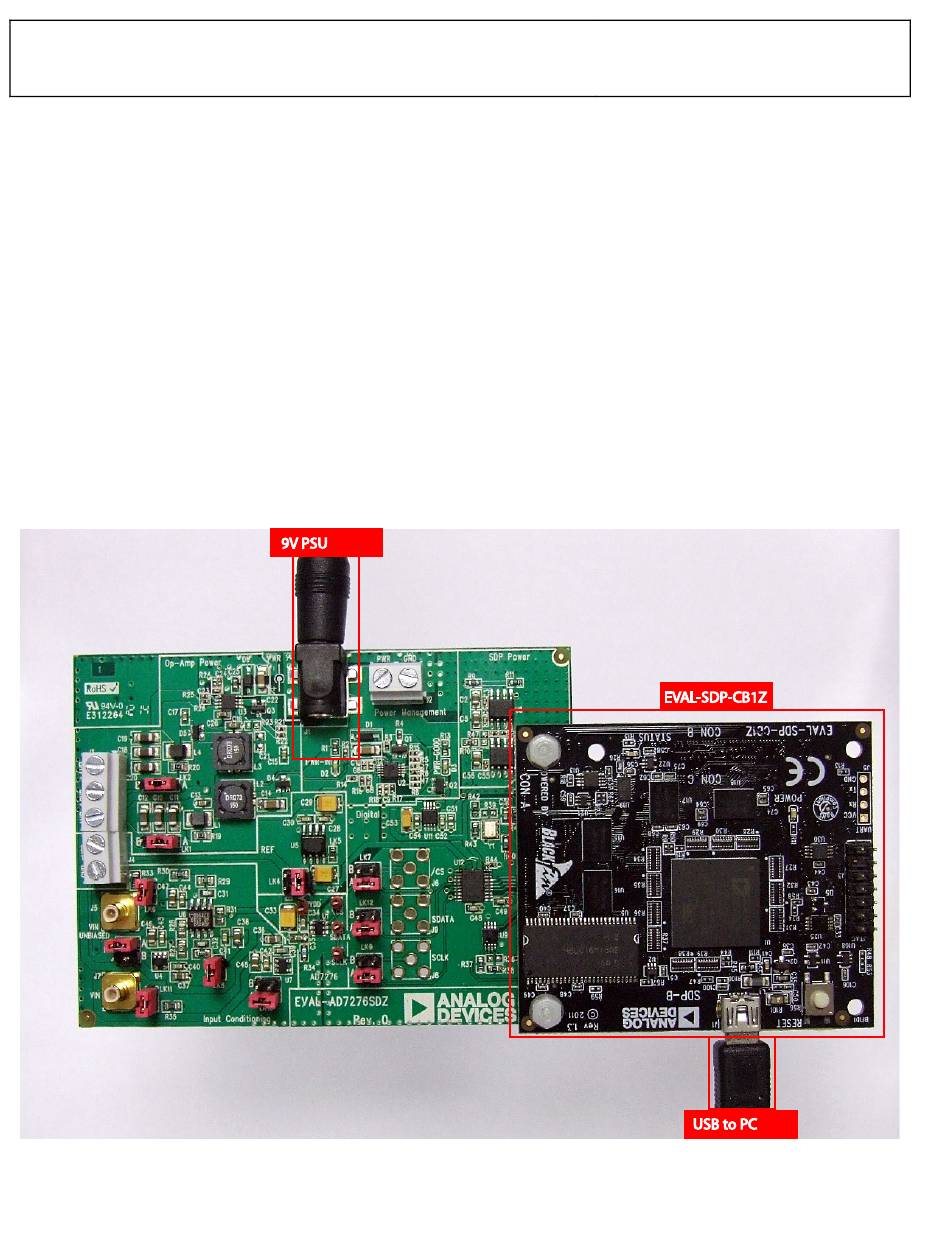

Figure 2. Hardware Configuration – Setting up the EVAL-AD7276SDZ.
Rev. PrA | Page 4 of 28
Evaluation Board User
(5) Connect the 9V power supply adapter included in the
kit to connecter J702 on the EVAL-AD7276SDZ
board.
(6) Connect the EVAL-SDP-CB1Z board to the PC via the
USB cable. For Windows XP you may need to search
for the EVAL-SDP-CB1Z drivers. Choose to
automatically search for the drivers for the EVAL-
SDP-CB1Z board if prompted by the operating
system.
(7) Launch the EVAL-AD7276SDZ software from the
Analog Devices subfolder in the Programs menu.
