4.3. DIN Rail Mounting
Using the optional DIN mounting kit, Bridge II CAN can be mounted on a standard DIN rail. See
Equipment (page
4).
Before You Begin
NOTE
To avoid signal interference, a minimum distance of 50 cm between the devices should be observed.
See also
Wireless Technology Basics (page
Procedure
To attach the Bridge II CAN on the DIN rail
1.
Fasten the DIN clip with the 2 included screws on the rear side of the Bridge II CAN.

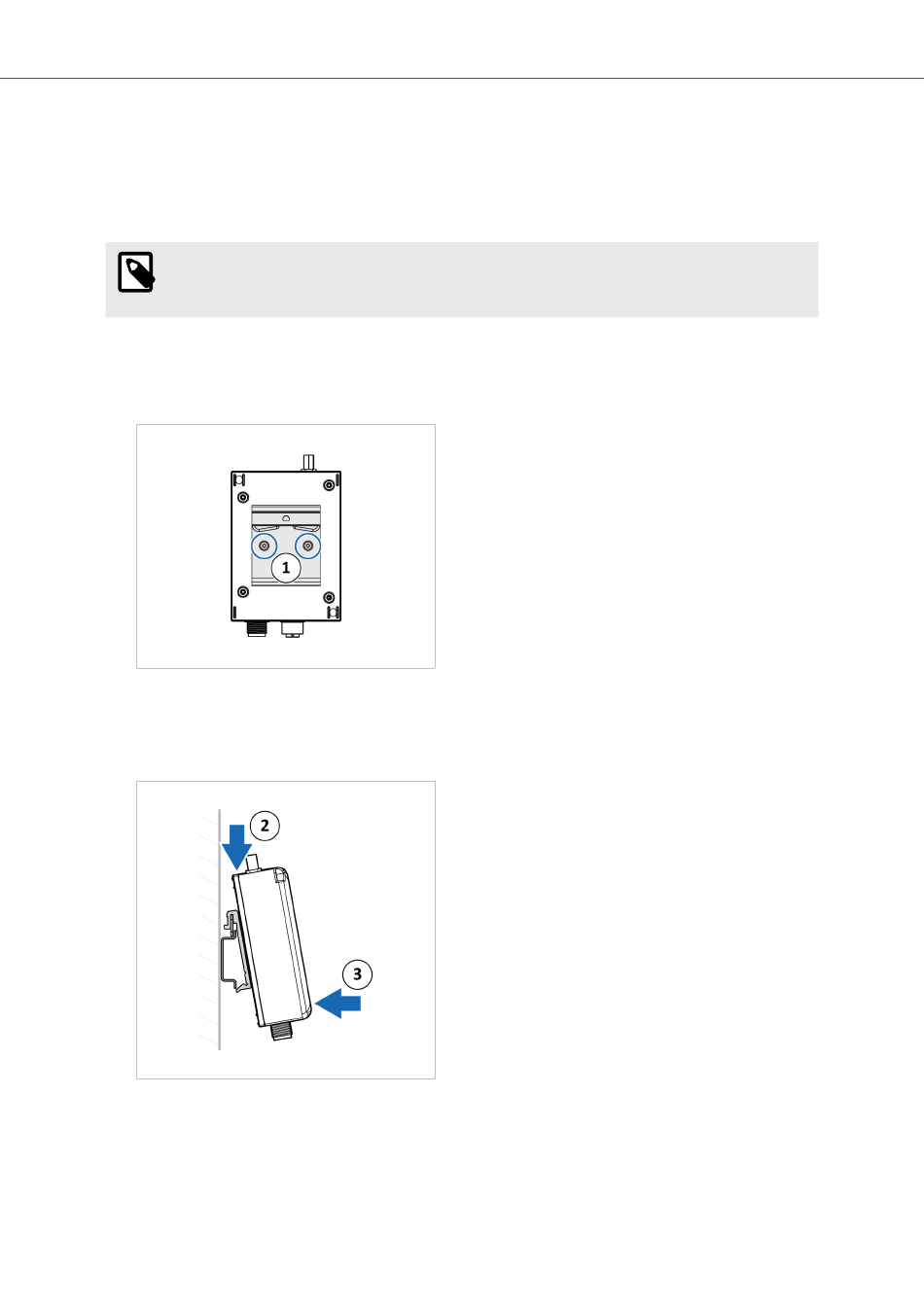

Figure 4. DIN clip on Bridge II CAN
2.
Insert the upper end of the DIN rail clip into the DIN rail.
3.
Push the bottom of the DIN rail clip into the DIN rail.
Figure 5. Attach Bridge II CANon DIN rail
