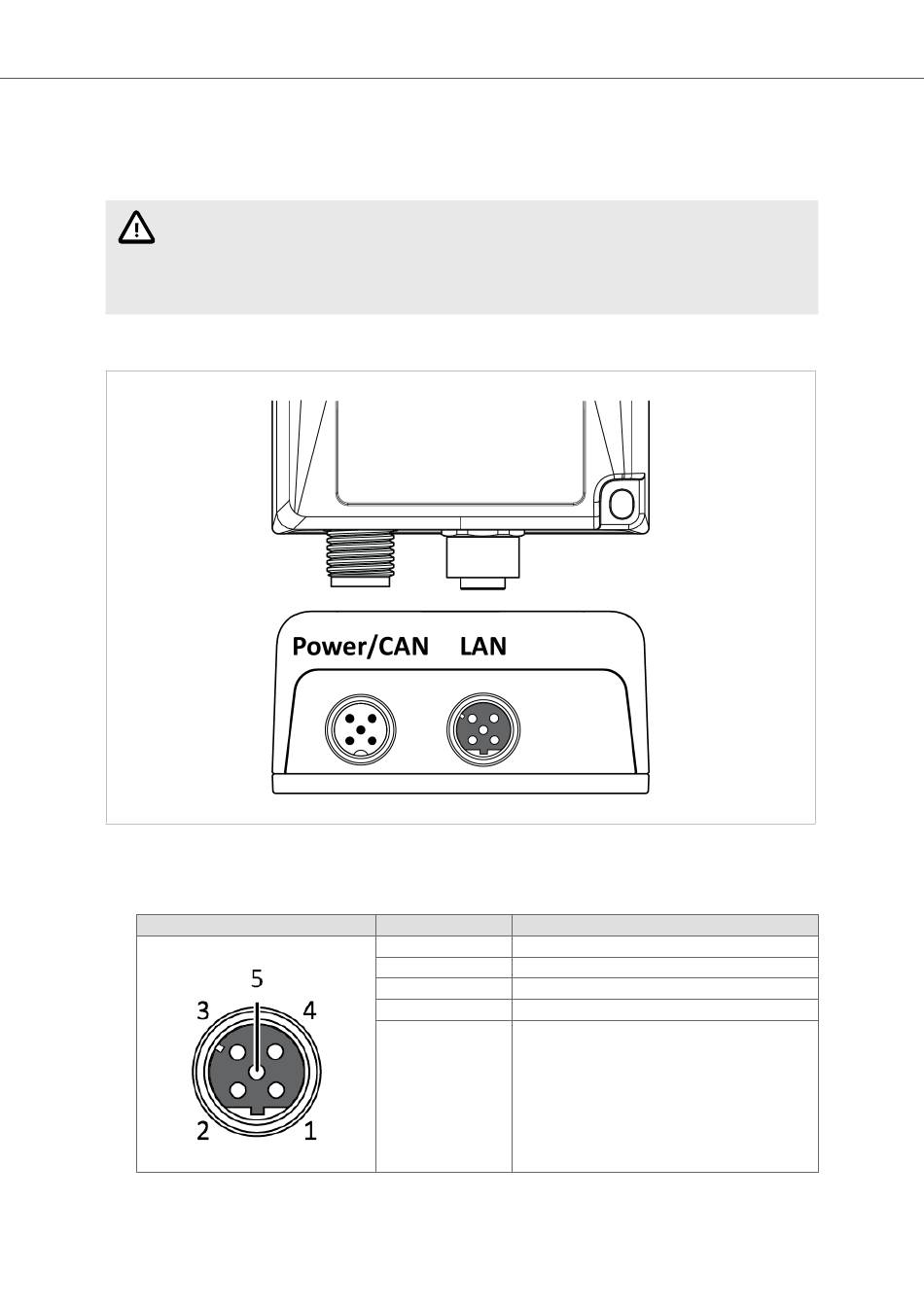

Connect to LAN, CAN and Power

4.4. Connect to LAN, CAN and Power
Before You Begin
CAUTION
This equipment is recommended for use in both industrial and domestic environments. For industrial
environments it is mandatory to use the functional earth connection to comply with immunity
requirements. For domestic environments the functional earth must be used if a shielded Ethernet
cable is used, in order to meet emission requirements.
Procedure
1. Connect the Bridge II CAN to LAN network.
Table 1. LAN connector pinout
LAN Connector
SCM-1202-184 2.0
Pin Function
1 Transmit +
2 Receive +
3 Transmit -
4 Receive -
5 N/C
® ™
