Configuration with Easy Config

5.7. Configuration with Easy Config

5.7.1. Available Easy Config Modes

Bridge II CAN may be configured using one of the pre-configured Easy Config modes.
NOTE
By default, the unit starts in Easy Config Mode 4. The unit awaits automatic configuration during 120
seconds or until receiving a configuration.
NOTE
To cancel Easy Config mode 11, the unit must be reset to factory default settings. See
Factory Default (page 59)

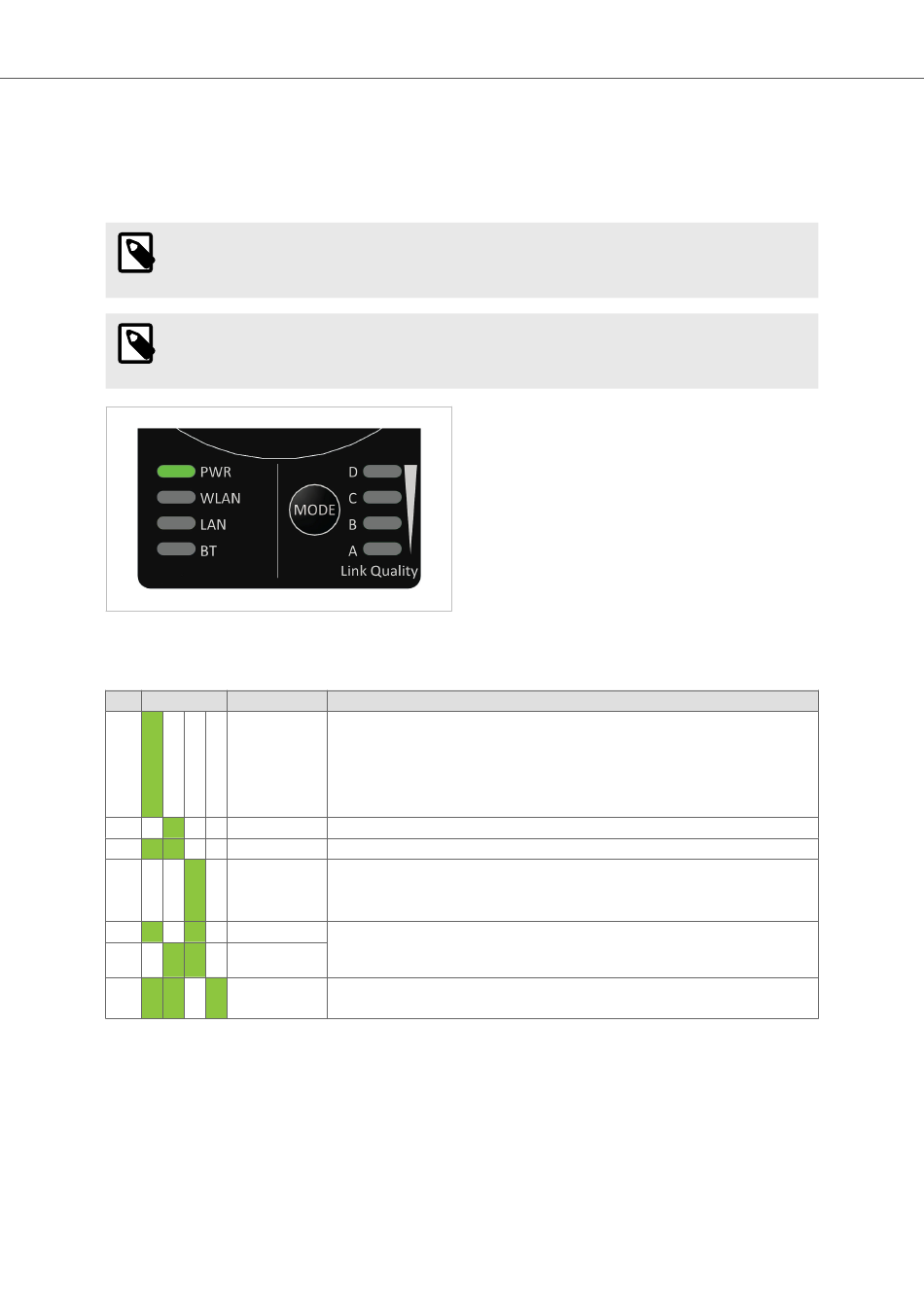

Figure 10. Easy Config A-B-C-D LED indicators
Table 3. Easy Config modes
EC Active LED Role
1 A Bluetooth PANU
2 B N/A
3 A B N/A
4 C Client
5 A C WLAN AP
6 B C Bluetooth NAP
11 A B D (any)
The Easy Config modes are also described when selected in the built-in web interface. See
Easy Config Mode (page 18).
SCM-1202-184 2.0
Description
Used for setting up point-to-point communication.
The unit scans for another unit in Config Mode 4. The unit listens for 40 seconds or until a
configuration is established.
When a unit in mode 4 is detected: The scanning unit configures itself as a Bluetooth PANU Client,
sends a connection configuration to the detected unit, and restarts. The detected unit restarts and
attempt to connect to the first unit as a PANU Client.
Reset configuration to factory defaults.
Reset IP settings to factory defaults.
Configure units in mode 4 as Clients.
Wait for automatic configuration. The unit listens for 120 seconds or until receiving a configuration.
When mode 4 is used with mode 1, 5 or 6, CAN Settings TCP Mode Client is activated automatically.
The unit scans for other units in Config Mode 4 and configure them as Clients. Timeout occur after
120 seconds.
Restart as Access Point and connect Clients.
Enable PROFIsafe mode. The unit is locked in PROFIsafe mode.
No other configuration settings are changed.
® ™
Anybus Wireless Bridge II CAN
Reset to
How to Activate an
Page 17 of 72
