Configuration with AT Commands

5.8. Configuration with AT Commands
Advanced configuration can be carried out by issuing AT commands via the web interface or over a Telnet or RAW
TCP connection to port 8080 or over serial interface.
Use AT commands to setting advanced parameters, that are not accessible in the Bridge II CAN built-in web
interface.
AT commands can be used to read out parameters in text format and for batch configuration using command
scripts.
For a complete list of supported AT commands, click Help in the built-in web interface. See also the AT
Commands Reference Guide at www.anybus.com/support.
Procedure

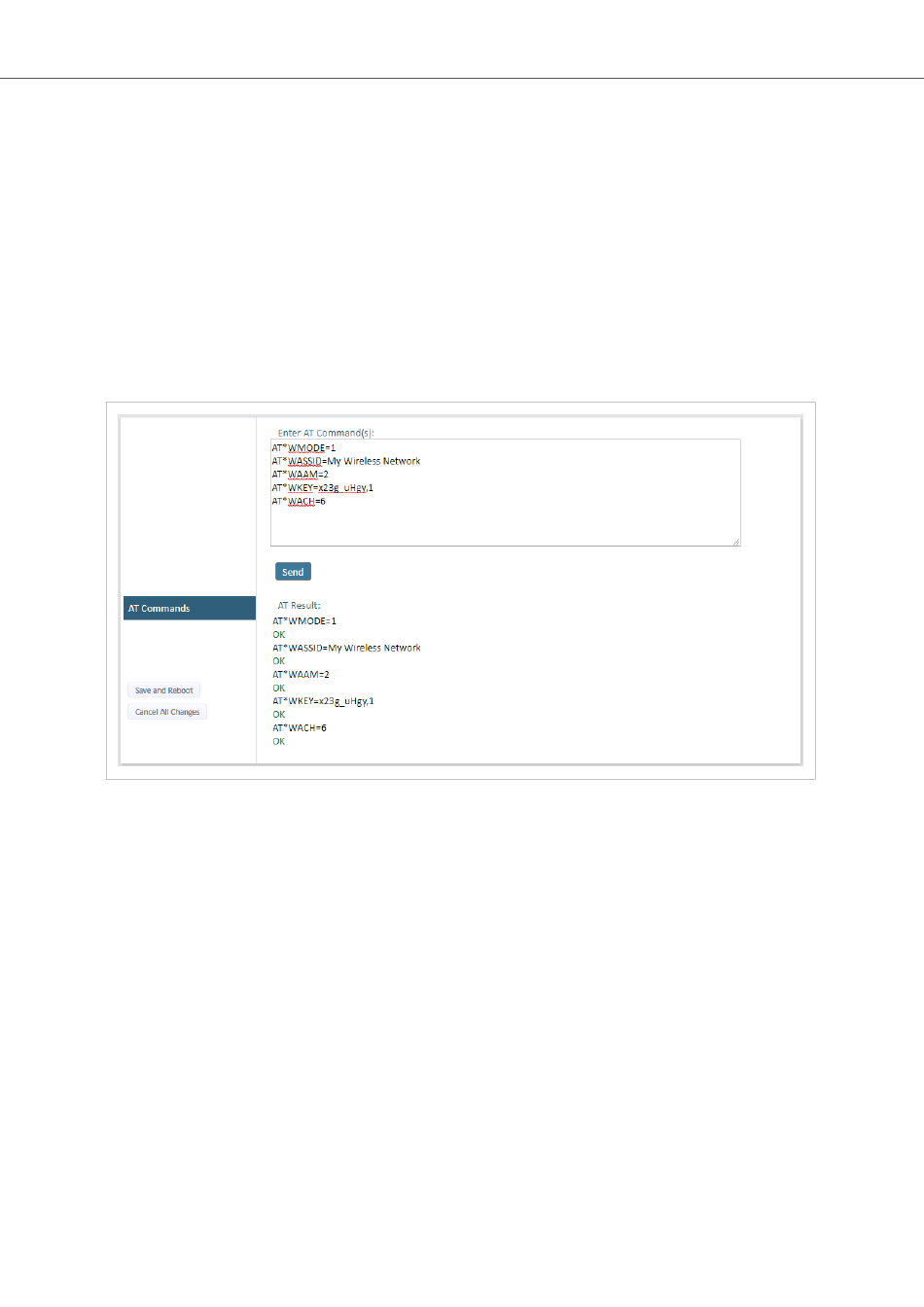

Figure 18. AT Commands and AT Results
1. Enter or paste the AT commands into the Enter AT Command(s) text field.
2. Click Send.
3. The result codes are displayed in the AT Result panel.
