Configuration with Easy Config
Activate an Easy Config Mode with the MODE Button

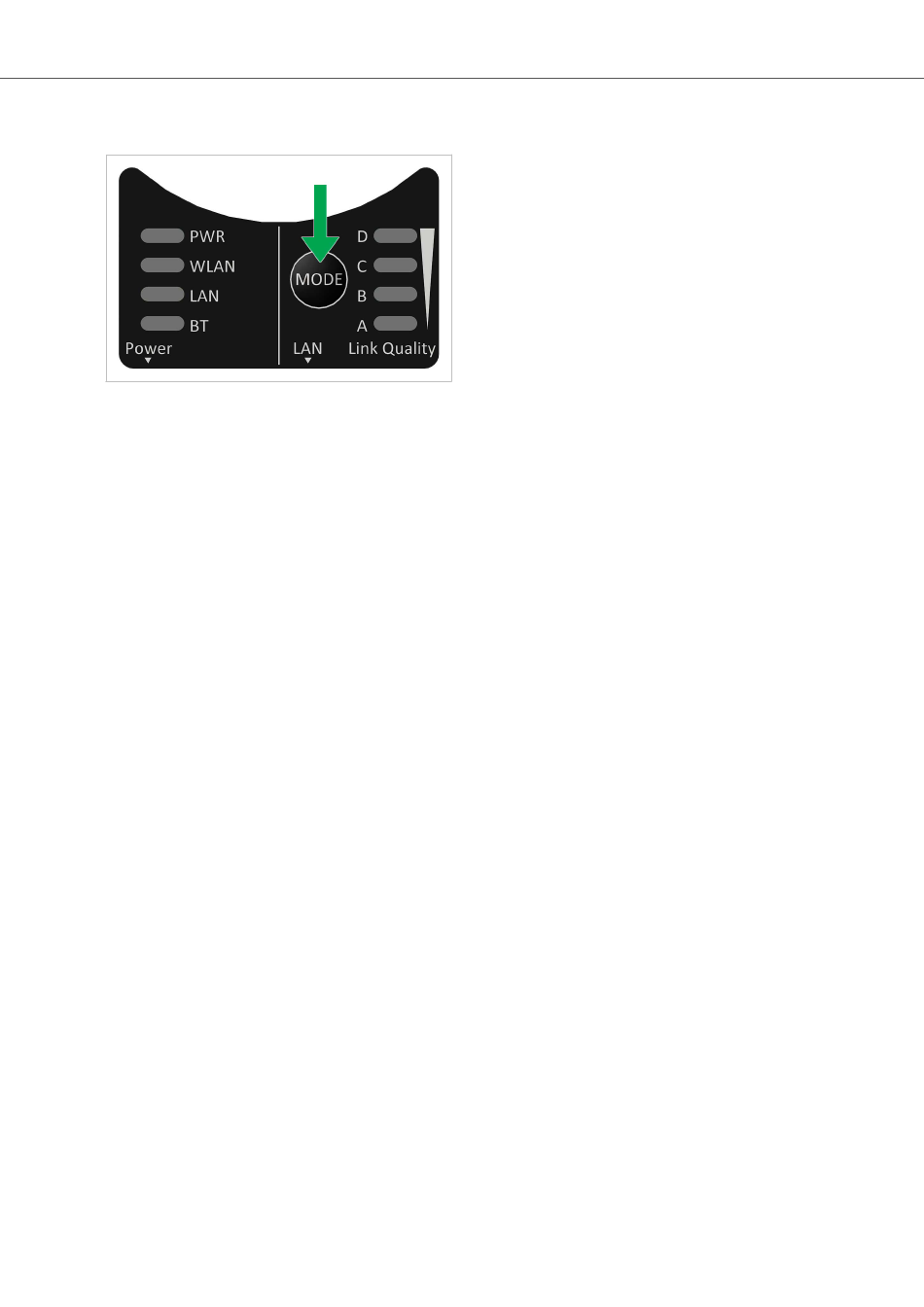

Figure 12. Easy Config using the MODE button
1.
Power on the unit and wait for the Link Quality LEDs to light up and go out again, then immediately press
and release the MODE button.
2.
Press MODE repeatedly to cycle through the Easy Config modes until the desired mode is indicated by the
A-B-C-D LEDs.
3.
Within 20 seconds of step 2, press and hold MODE for 2 seconds.
When the button is released the unit restart in the selected mode.
See also
Easy Config Using the MODE Button (page
SCM-1202-184 2.0
20).
®
™
Anybus
Wireless Bridge II CAN
Page 19 of 72
