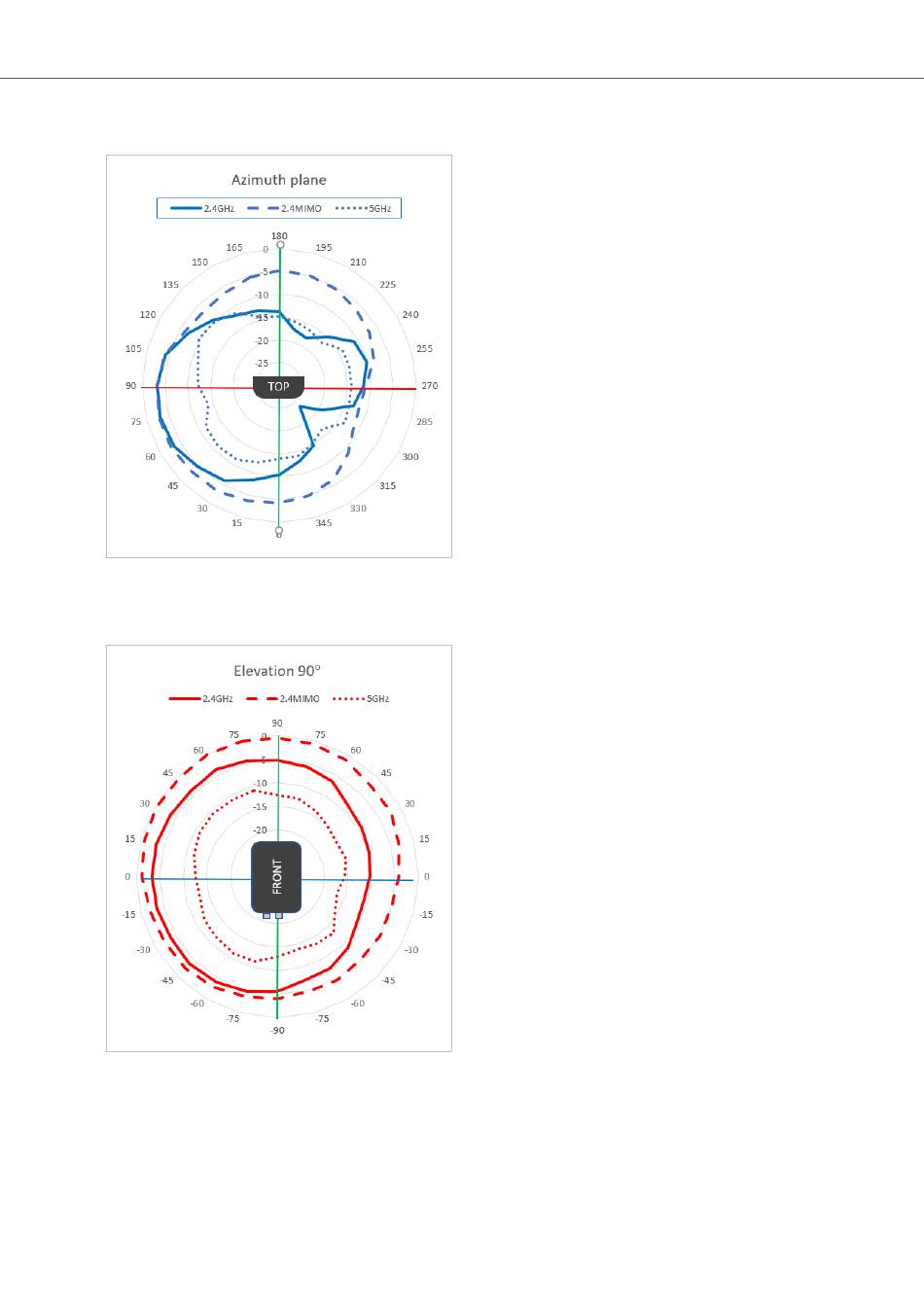

Internal Antenna Characteristics
Anybus
Wireless Bridge II CAN
Azimuth (Horisontal) View
Figure 49. Azimuth plane
Front View – Elevation (Vertical)
Figure 50. Elevation 90°
SCM-1202-184 2.0
Page 67 of 72
