Configuration with Easy Config
3. To select an Easy Config mode:
a. Press MODE repeatedly, to cycle through the Easy Config modes.

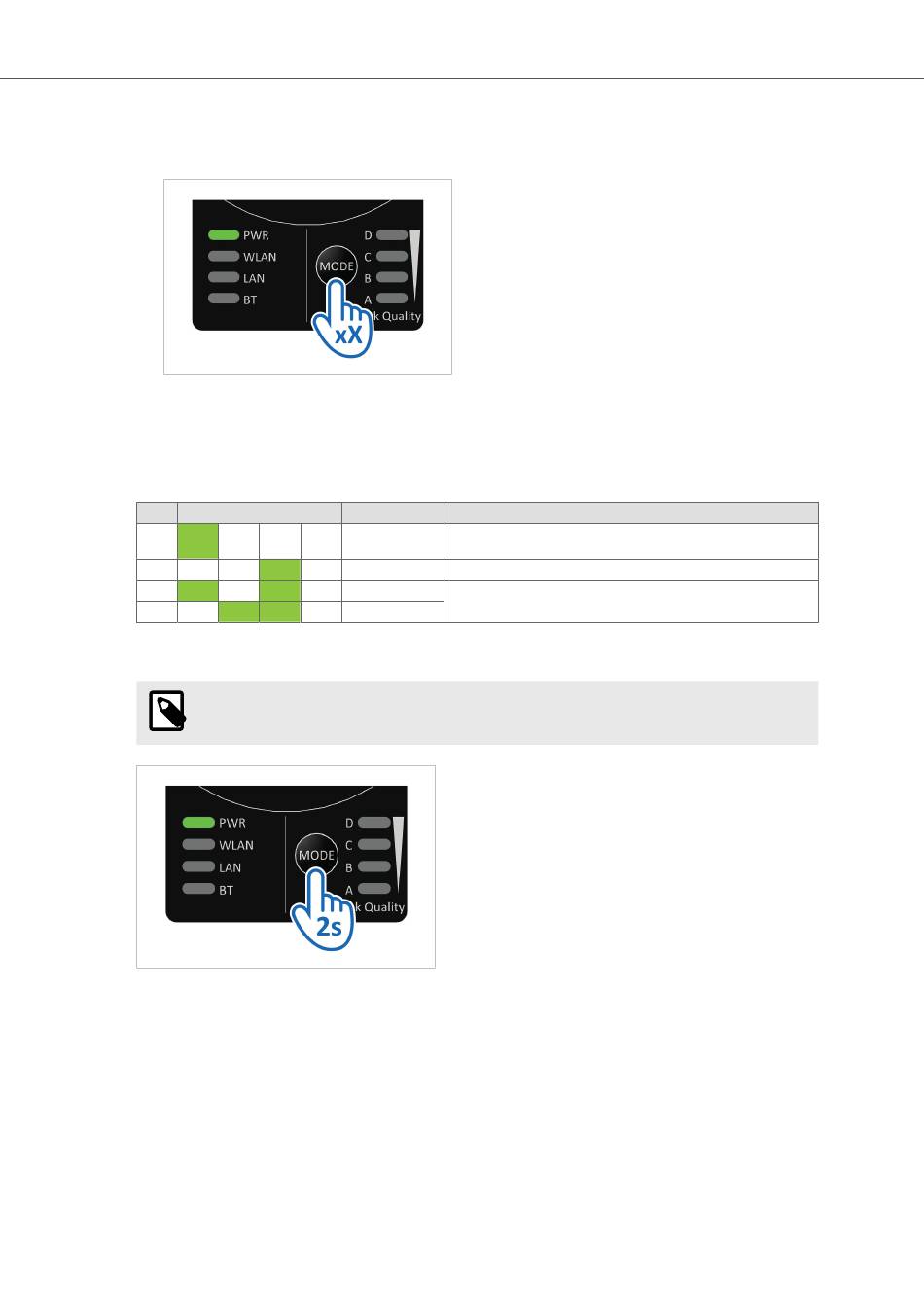

Figure 14. Select the desired mode
b. When the A-B-C-D LED lights indicate the desired Easy Config mode, release the MODE button.
Table 5. Easy Config modes and LED indications
EC LED
1 A
4 C
5 A C
6 B C
4. To confirm the Easy Config mode, press and hold MODE for 2 seconds and then release it.
NOTE
You must confirm the Easy Config mode within 20 seconds.
Figure 15. Confirm Easy Config mode
5. The LED lights indicating the active Easy Config mode flashes while the unit is scanning for a second unit to
configure.
Depending on the selected Easy Config mode, the following happens:
• Easy Config mode 1: The unit restarts as a Client and starts scanning for a second unit to configure.
• Easy Config mode 4: The unit listens for 120 seconds for receiving a configuration.
• Easy Config mode 5 or 6: The unit restarts as an Access Point and starts scanning for a second unit to
configure.
SCM-1202-184 2.0
Role Description
Bluetooth PANU Configure as a Client and scan for another Client (PANU to PANU). Used for
setting up point-to-point communication. Timeout after 40 seconds.
Client Wait for automatic configuration. Timeout occur after 120 seconds.
WLAN AP Configure units in mode 4 as clients. Restart as Access Point and connect
Clients. Timeout occur after 120 seconds.
Bluetooth NAP
® ™
