Open-Q™ 660 HDK Hardware Development Kit based on the Snapdragon™ 660 processor User Guide Version 1.0

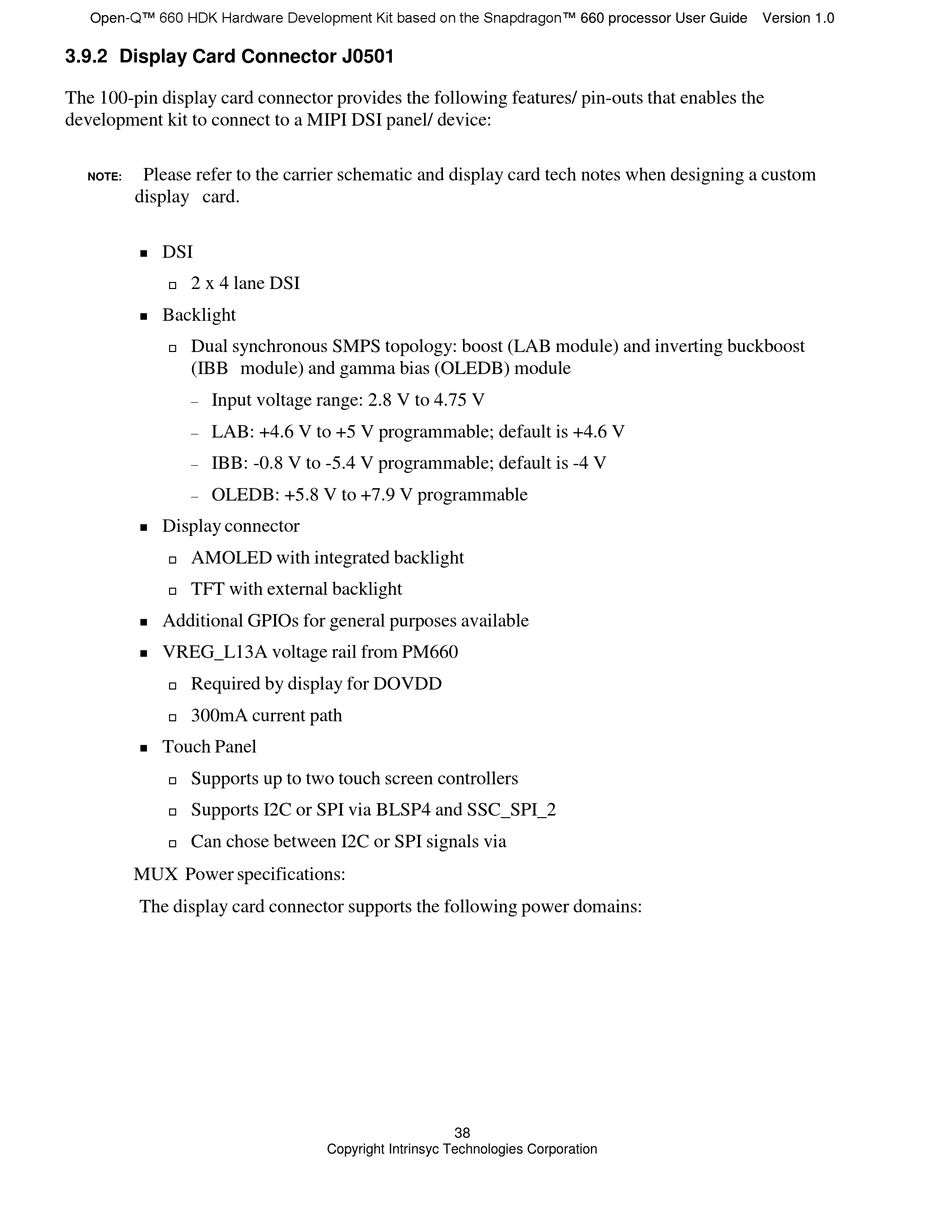

3.9.2 Display Card Connector J0501

The 100-pin display card connector provides the following features/ pin-outs that enables the
development kit to connect to a MIPI DSI panel/ device:
Please refer to the carrier schematic and display card tech notes when designing a custom
NOTE:
display card.
DSI

2 x 4 lane DSI

Backlight

Dual synchronous SMPS topology: boost (LAB module) and inverting buckboost

(IBB module) and gamma bias (OLEDB) module
– Input voltage range: 2.8 V to 4.75 V
– LAB: +4.6 V to +5 V programmable; default is +4.6 V
– IBB: -0.8 V to -5.4 V programmable; default is -4 V
OLEDB: +5.8 V to +7.9 V programmable
–
Display connector

AMOLED with integrated backlight

TFT with external backlight

Additional GPIOs for general purposes available

VREG_L13A voltage rail from PM660

Required by display for DOVDD

300mA current path

Touch Panel

Supports up to two touch screen controllers

Supports I2C or SPI via BLSP4 and SSC_SPI_2

Can chose between I2C or SPI signals via

MUX Power specifications:
The display card connector supports the following power domains:
38
