Open-Q™ 660 HDK Hardware Development Kit based on the Snapdragon™ 660 processor User Guide Version 1.0

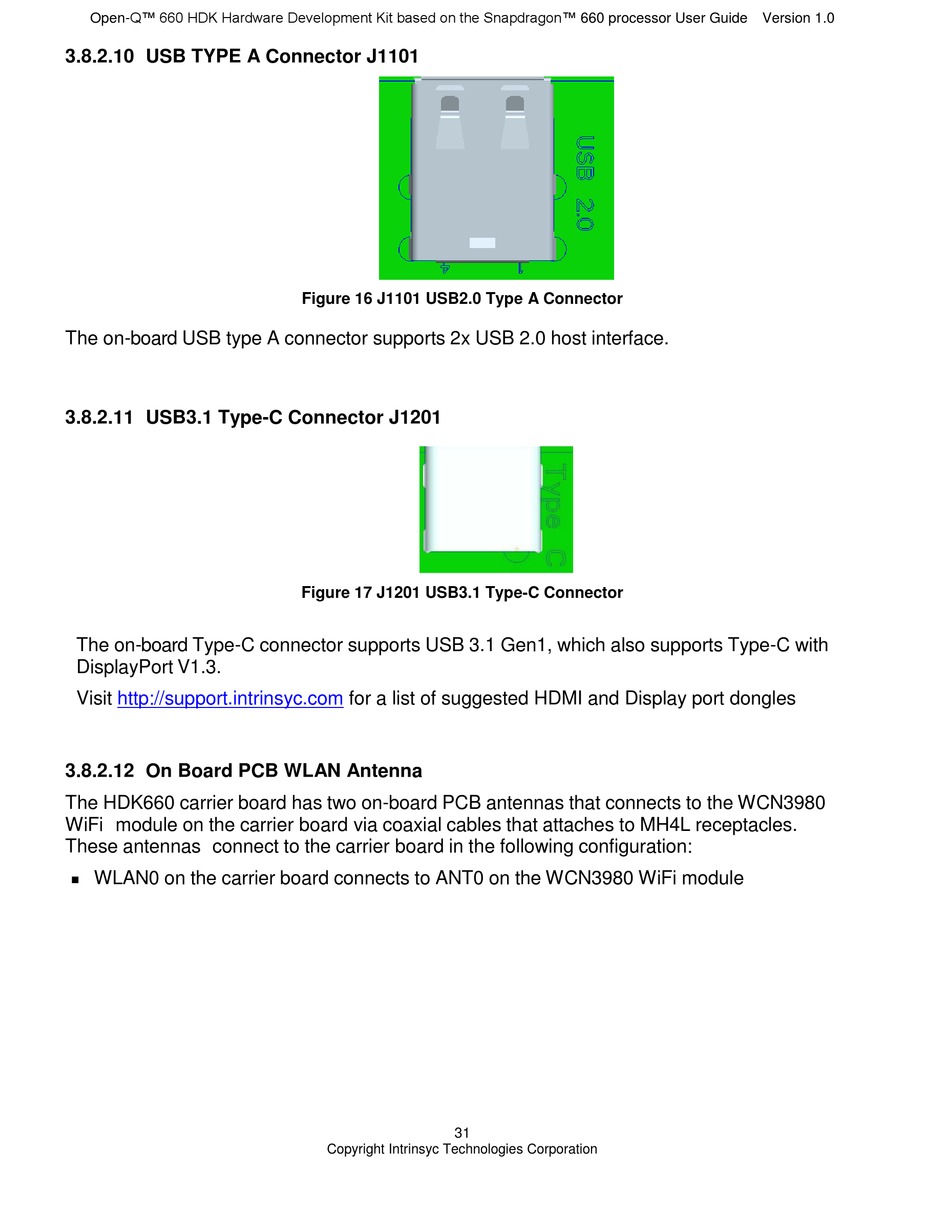

3.8.2.10 USB TYPE A Connector J1101

The on-board USB type A connector supports 2x USB 2.0 host interface.

The on-board Type-C connector supports USB 3.1 Gen1, which also supports Type-C with

DisplayPort V1.3.

Visit

http://support.intrinsyc.com

The HDK660 carrier board has two on-board PCB antennas that connects to the WCN3980

WiFi module on the carrier board via coaxial cables that attaches to MH4L receptacles.

These antennas connect to the carrier board in the following configuration:

WLAN0 on the carrier board connects to ANT0 on the WCN3980 WiFi module



Figure 16 J1101 USB2.0 Type A Connector

Figure 17 J1201 USB3.1 Type-C Connector

for a list of suggested HDMI and Display port dongles
