Open-Q™ 660 HDK Hardware Development Kit based on the Snapdragon™ 660 processor User Guide Version 1.0

http://www.digikey.ca/product-detail/en/TTL-232R-RPI/768-1204-ND/4382044

Table 3.8-5 Debug UART Header J2103 Pin-out

Description

SDA UART RX (GPIO5)

SDA UART TX (GPIO4)

GND

3.8.2.3 Debug Serial UART over USB J2102

The UART connection used on the HDK660 is a USB micro B connector (J2102). This debug

UART is available over USB via the FTDI FT232RQ chip on the carrier board. To get the

serial terminal working with a PC, user needs to ensure that the appropriate FTDI drivers are

installed.

This connector provides a JTAG interface to the main processor by which users can

connect a JTAG (Lauterbach / USB Wiggler) 20 pin ARM JTAG.

NOTE:

The development kit does not include software support for JTAG

Signal

BLSP2_UART_RX

BLSP2_UART_TX

GND

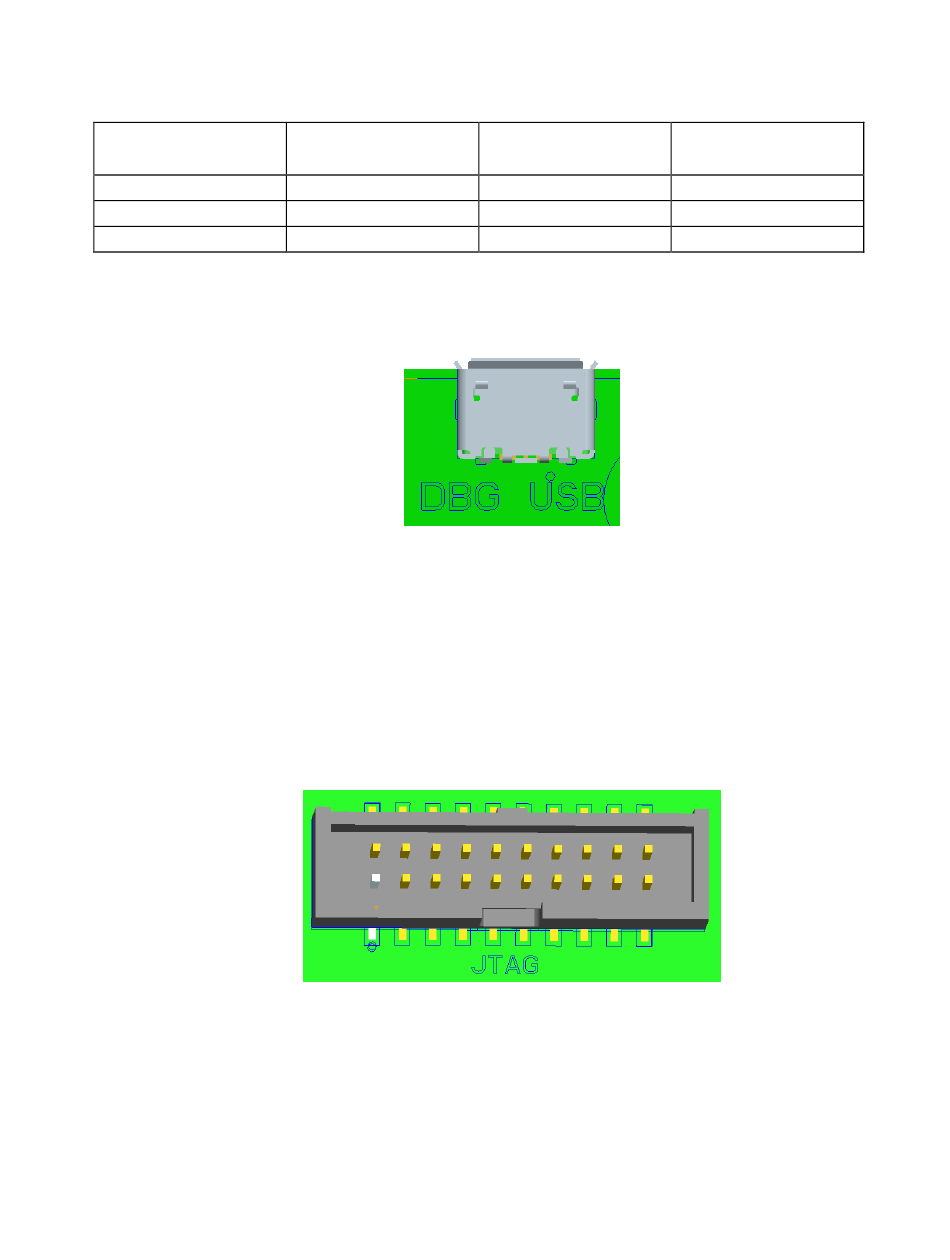

Figure 9 J2102 Debug UART over USB

Figure 10 J2101 JTAG header

J2103[1]

J2103[2]

J2103[3]

FTDI RPI cable

connection

Orange

Yellow

Black
