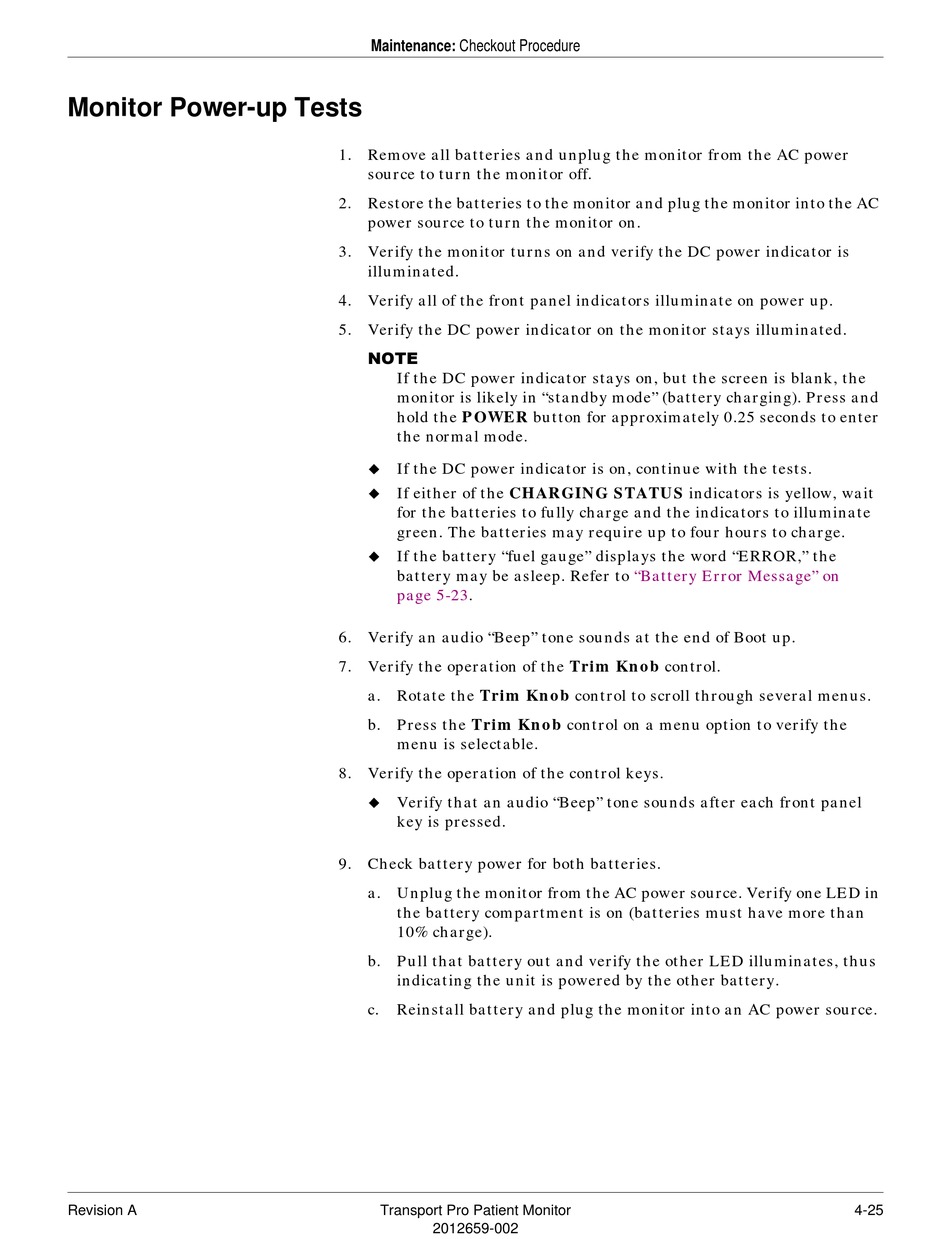

Monitor Power-up Tests

Revision A
Maintenance: Checkout Procedure
1. Remove all batteries and unplug the monitor from the AC power
source to turn the monitor off.
2. Restore the batteries to the monitor and plug the monitor into the AC
power source to turn the monitor on.
3. Verify the monitor turns on and verify the DC power indicator is
illuminated.
4. Verify all of the front panel indicators illuminate on power up.
5. Verify the DC power indicator on the monitor stays illuminated.
127(
If the DC power indicator stays on, but the screen is blank, the
monitor is likely in "standby mode" (battery charging). Press and
hold the POWER button for approximately 0.25 seconds to enter
the normal mode.
‹
If the DC power indicator is on, continue with the tests.
‹
If either of the CHARGING STATUS indicators is yellow, wait
for the batteries to fully charge and the indicators to illuminate
green. The batteries may require up to four hours to charge.
‹
If the battery "fuel gauge" displays the word "ERROR," the
battery may be asleep. Refer to
page 5-23.
6. Verify an audio "Beep" tone sounds at the end of Boot up.
7. Verify the operation of the Trim Knob control.
a. Rotate the Trim Knob control to scroll through several menus.
b. Press the Trim Knob control on a menu option to verify the
menu is selectable.
8. Verify the operation of the control keys.
‹
Verify that an audio "Beep" tone sounds after each front panel
key is pressed.
9. Check battery power for both batteries.
a. Unplug the monitor from the AC power source. Verify one LED in
the battery compartment is on (batteries must have more than
10% charge).
b. Pull that battery out and verify the other LED illuminates, thus
indicating the unit is powered by the other battery.
c. Reinstall battery and plug the monitor into an AC power source.
Transport Pro Patient Monitor
2012659-002
"Battery Error Message" on
4-25
