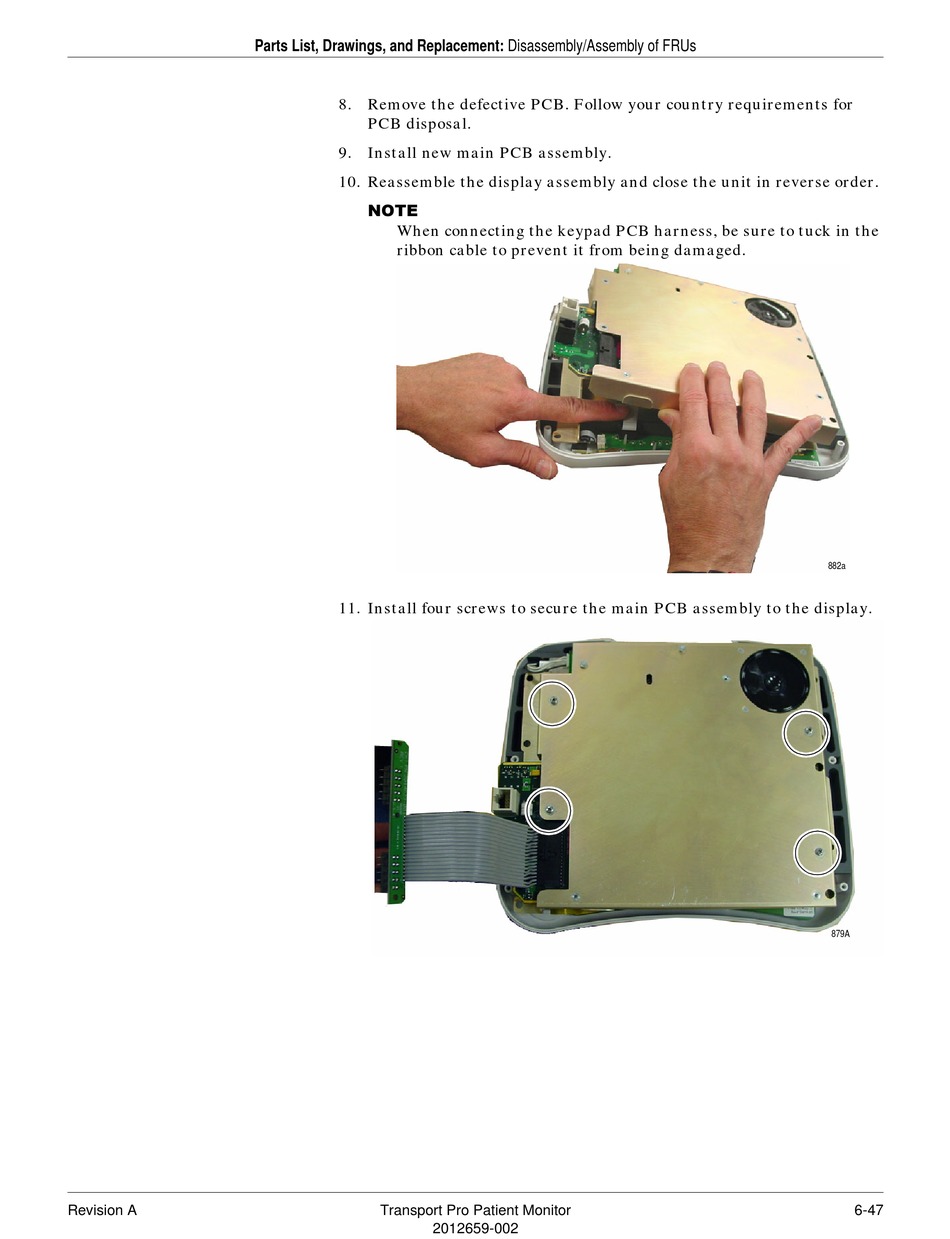

8. Remove the defective PCB. Follow your country requirements for
PCB disposal.
9. Install new main PCB assembly.
10. Reassemble the display assembly and close the unit in reverse order.
127(
When connecting the keypad PCB harness, be sure to tuck in the
ribbon cable to prevent it from being damaged.
11. Install four screws to secure the main PCB assembly to the display.
