Identifying Battery Capacity Using the Cadex SMart Two+ Charger
4-8
Maintenance: Lithium-Ion Battery
Single Battery Run Time: Approximately 2.0 Hours

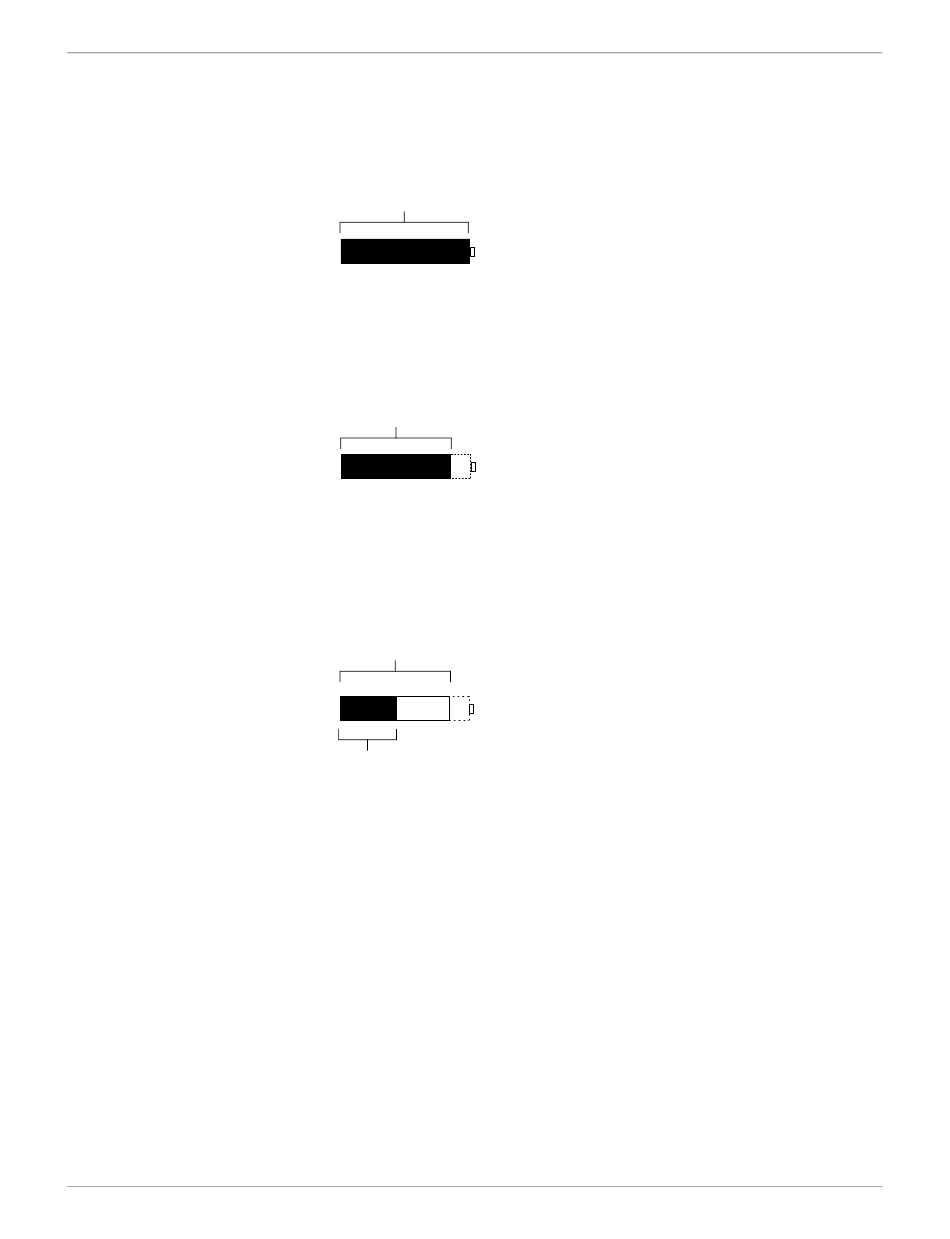

An icon fully outlined with solid lines and completely filled indicates a
new battery, fully charged to a minimum of the battery's Design
Capacity.
Design Capacity and Full Charge Capacity
857A
Single Battery Run Time: Approximately 1.5 Hours
The dotted portion of the icon outline shows that the battery has lost 20%
of its Design Capacity. The solid-outline portion is filled in, showing that
the battery is charged to 100% Full Charge Capacity.
Full Charge Capacity
858A
Single Battery Run Time: Approximately 0.8 Hours
The dotted portion of the icon outline shows that the battery has lost 20%
of its Design Capacity. The solid-outline portion is half filled in, showing
that the battery is charged to only 50% of available capacity.
Full Charge Capacity
859A
50% Available Capacity
When you select the Target Capacity switch on the charger, the
charger compares the battery's performance to a 60%, 70%, or 80% target
capacity set on the battery charger. If the battery fails to meet the target
performance, the battery charger will prompt you to condition the
battery. If after the condition cycle has been completed, the battery does
meet the target performance, then the battery charger will illuminate a
"fail" light. Or, if the battery is not performing to the target capacity, the
battery charger will illuminate a "fail" light.
