Parts List, Drawings, and Replacement: Disassembly/Assembly of FRUs

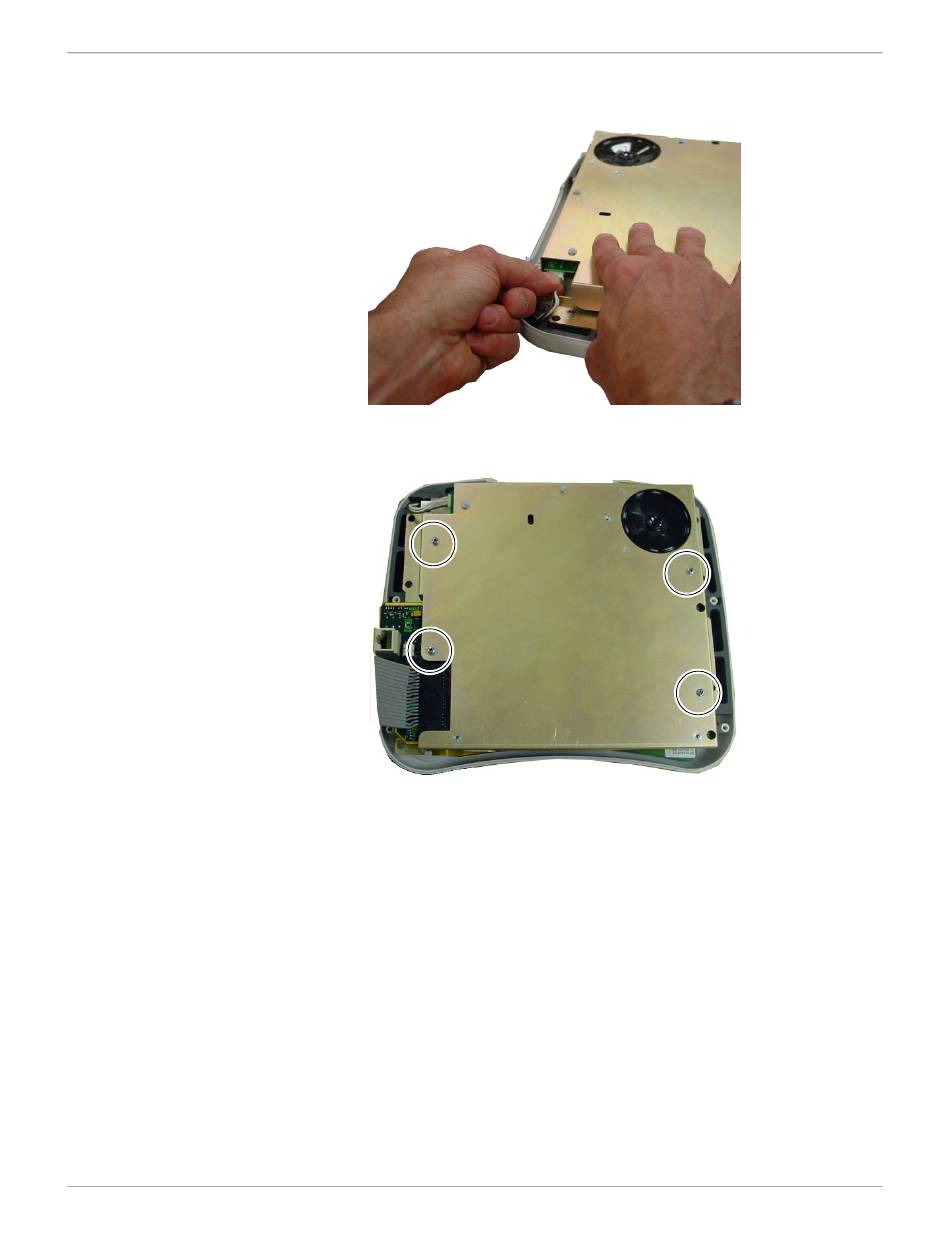

12. Insert the display friction connector into the inverter PCB connector.
878A
13. Install four screws to secure the main PCB assembly to the display.
879A
14. Close the unit in reverse order that you opened it. See
"Open the
Unit" on page
6-22.
6-28
Transport Pro Patient Monitor
Revision A
2012659-002
