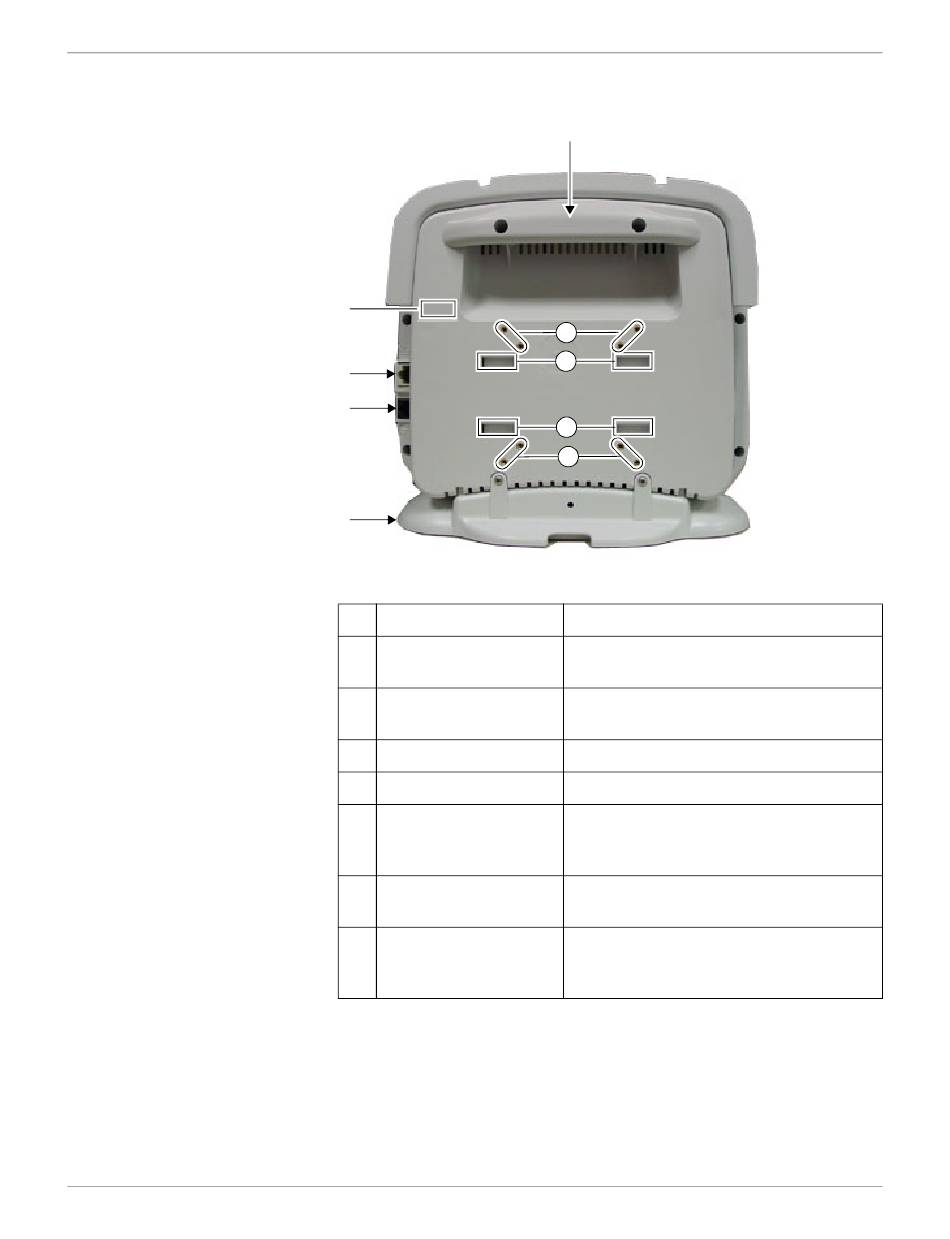

Back View

2-6
Equipment Overview: Equipment Description
B
C
D
E
Name
A Handle
B Serial number label
C Video In connector
D Ethernet connector
E Foot
F Mounting points
G Tram chute mounting slots
Transport Pro Patient Monitor
2012659-002
A
F
G
G
F
840A
Description
Use to carry the display or the transport monitor
from place to place.
See "Equipment Identification" on page 1-8
description of the serial number.
See "Connectors" on page 3-8.
See "Connectors" on page 3-8.
Remove to attach the display to an IV pole.
Connect to the display when placing the monitor
on a table top or shelf.
Use the mounting points to attach a standard IV
pole clamp.
Insert and slide the Tram chute mounting tabs. Be
sure to insert and secure the Tram chute mounting
screw.
for a
