LAUNCH
Tilting Post Unit

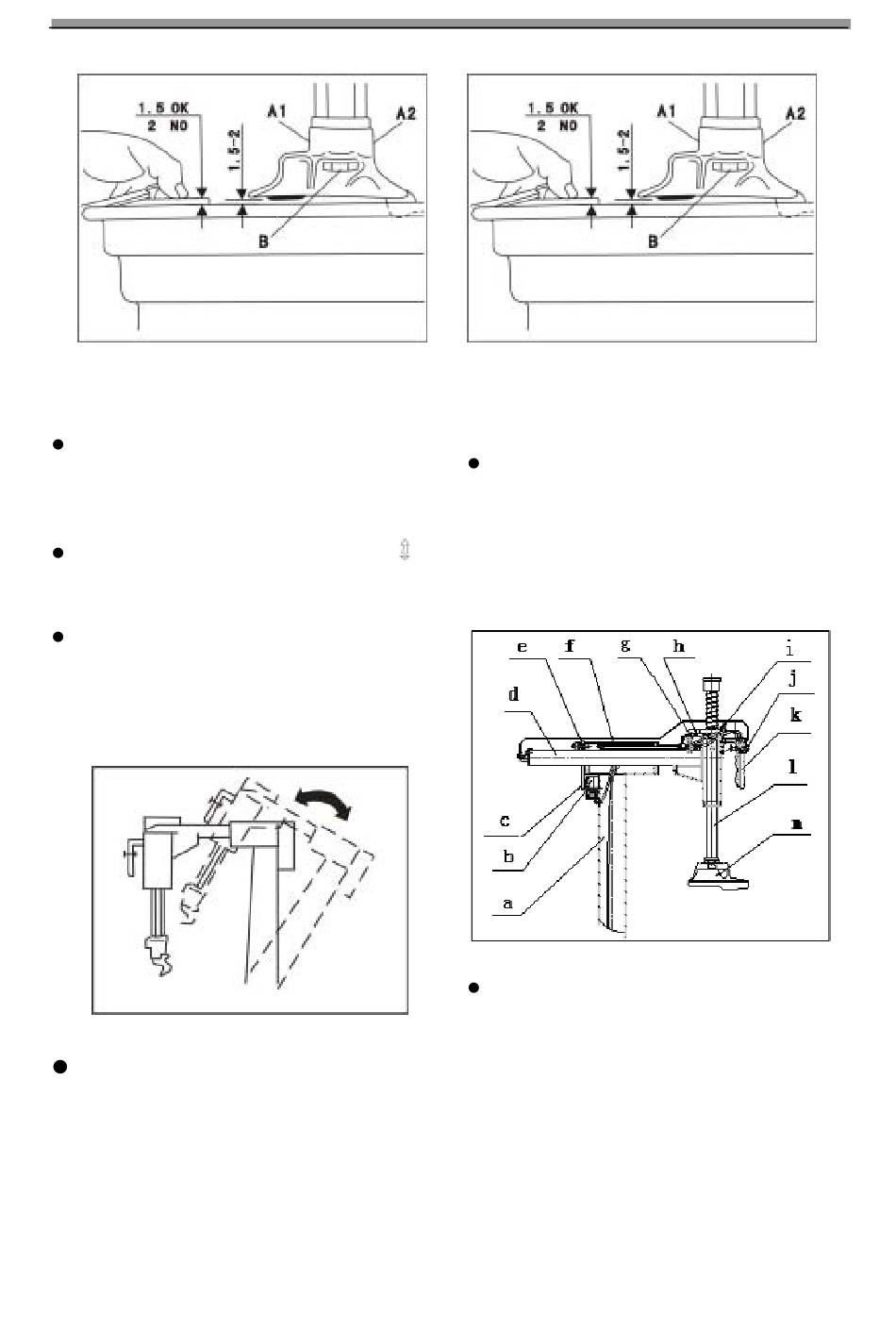

The tilting post is under the control of tilting
cylinder in the cabinet, so that the column can tilt
backward in order to remove the tyre from the
turntable easily, and restore to upright position
(the working position).
The tilting cylinder is controlled by pedal " ".
When it is pressed, the tilting post tilts backward;
and when it is pressed again, the column restore
to the upright position (Fig.41).
If tilting speed is too fast or too slow, adjust the
throttles to change speed. If the speed is too fast,
fasten the screw on throttle mouth. If too slow,
loose the screw. There are two throttles, of which
one is for tilting backward while another one is for
back to upright position.
Fig.41
There are two bolts on the base plate of the tilting
post to adjust position of the tilting post. Also,
there are two bolts on the side plates of the seat
for limiting the horizontal position of the tilting
post.
Fig.39
Horizontal Arm and Hexagonal
Column Clamping Unit
As shown in the figure 42, use (air valve) locking
button J on the handle (k) to control movement of
the clamping cylinder. When thumbed down the
button, the external shells of clamping cylinders
(b and g) are pushed out. Their external shells
touch locking boards (c and h). The tilting of the
boards will lock the horizontal arm and the
hexagonal column.
When the button is pressed out, the clamping
cylinder (b and g) will be drawn back. The tilting
boards (c and h) will relax to loose the horizontal
arm and the hexagonal column.
doesn't work, nuts (e and i) can be tightened or
loosened for adjustment.
40
Tyre Changer(TWC Series)
Fig.40
Fig.42
When it
