arm) (Fig.06)
Unscrew the bolts on the side board of cabin to
remove the side board.
Mount the post, return spring, hexagonal column,
cap and related parts on the cabin, fasten all
bolts.
Mount the side board on cabin, fasten bolts.

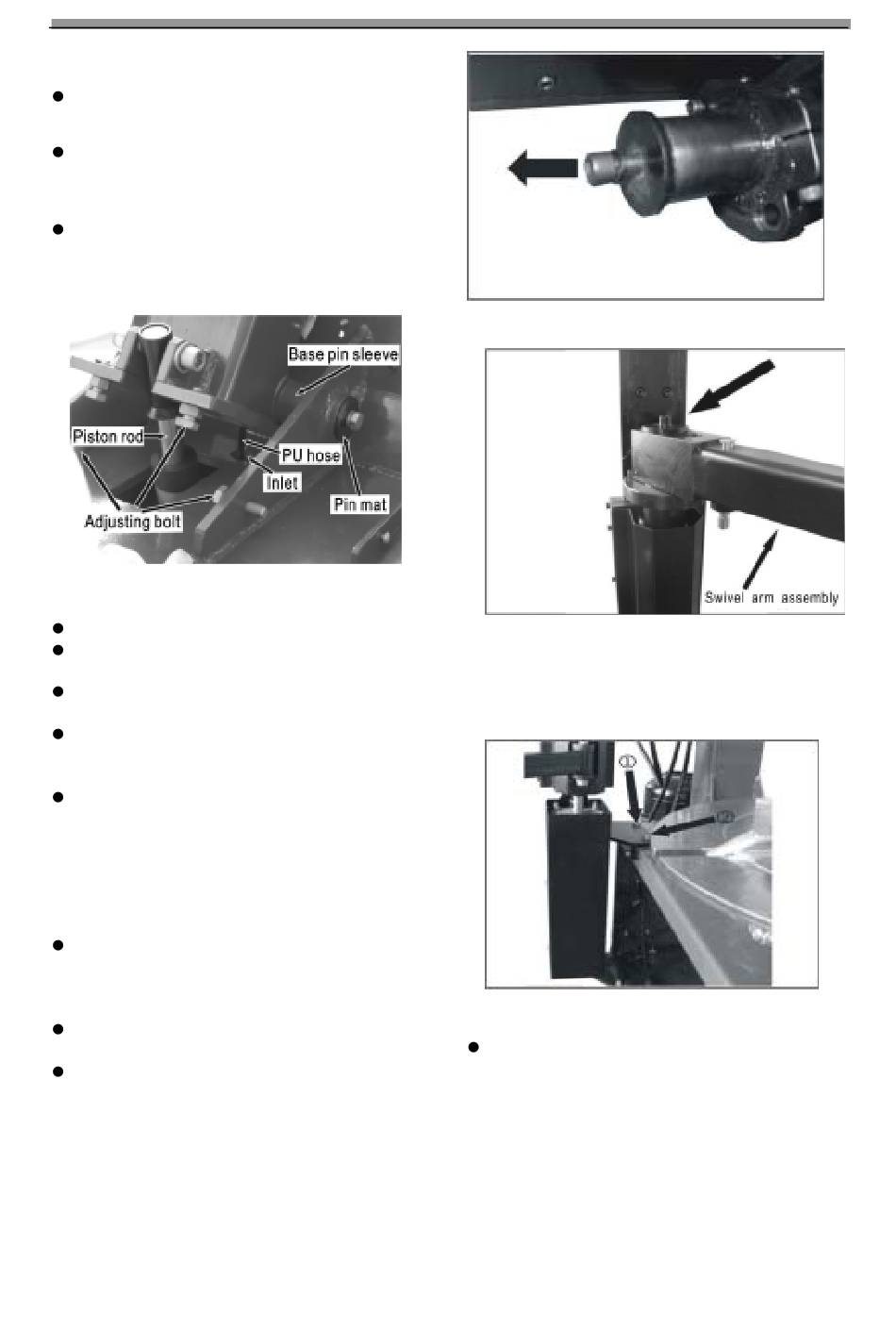

Installation of Tilting Post (for tyre changer
with tilting post) (Fig.07)
Fig.07
Place the cabinet at the right position.
Remove the front board and bottom rotation shaft
of tilting post with appropriate tools.
Apply lubricant on bottom rotation shaft and its
sleeve.
Lift up the tilting post. Run the PU hose through
inlet on the cabinet, and position the tilting post
onto the bottom seat.
Align the round holes on the bottom rotation
sleeve and the side boards of the bottom seat,
then knock the rotation shaft through holes with a
hammer. Use a wood block between hammer
and the shaft for protection when knocking. Fit
gaskets on both sides of the shaft before
fastening screws.
Remove the bolt and nut from the piston rod of
the tilting post cylinder. Get the bolt through
round holes on side boards of the tilting post and
the piston rod. Lock it with the locking nut.
Adjust four adjusting bolts to make the tilting post
on the right position (See Titling Unit)
Mount the front board to original position.
Installation of Left Supplementary Arm
Take out the left supplementary arm assembly, remove
the bolts and washers (fig.08), mount them as in fig.09.
Remove the bolts and washers on the left side of cabin,
place the unit (fig.09) on the seat vertically, fit washers
and fasten them with bolts.(fig.10)
Take out the disk and relevant fastening parts,
brush lubricant on the fastening parts, then
assemble them as in fig.11. Finally insert the pu
hose out from the bottom of the supplementary
arm unit into the cabin through the small hole on
left plate. (fig.12)
32
Tyre Changer(TWC Series)
Fig.08
Fig.09
Fig.10
