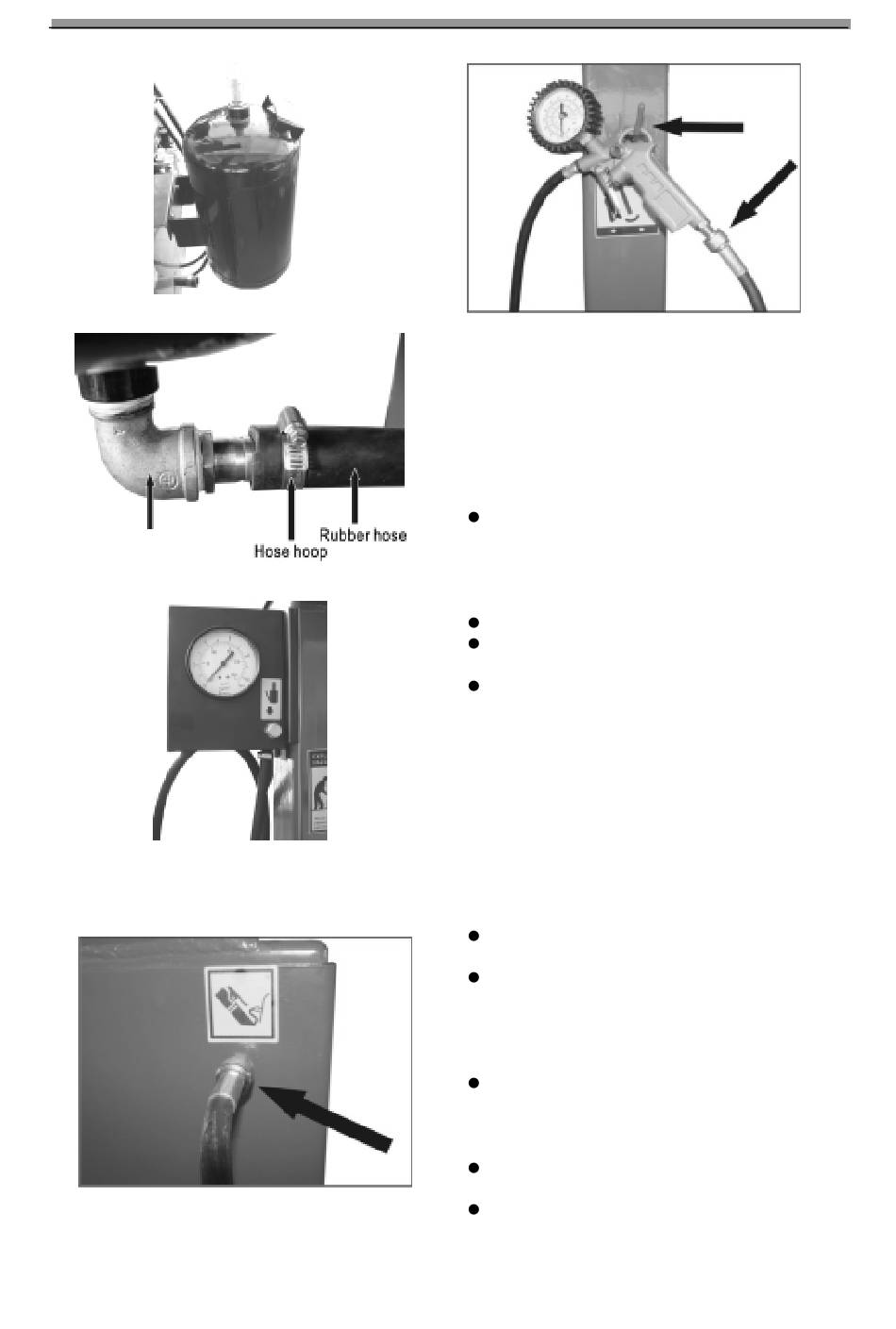

Fig.23
Air tank joint
Fig.24
Fig.25
For the inflating gun, use hose to connect the inflating
gun with the outlet(fig.26) of cabin.(fig.27)
Fig.26

Transport

It is advisable to transport the machine with fork lift
vehicle.
Such movable parts: tray assembly, Bending arm
assembly, straight arm assembly, tilting post and
horizontal arm must be fastened to the cabinet
tightly with rope to avoid damages to machine
and injuries to people during transportation.
Avoid excessive tilting in transportation.
Don't drive the fork lift vehicle carrying the
equipment too fast.
Try to keep the machine at the lowest position
and make sure it won't overturn in transportation
(pay attention to the position of the gravity
center).

Positioning

The place to install the machine should be in
accordance with safety regulations:
The machine should be installed in a place close
to the main power and compressed air source.
Install the machine on smooth concrete ground
or other ground with hard flooring. 4 sets of
anchor bolts(M10×150) can be used to fasten the
machine onto the ground strongly to avoid
vibration and noise.
Leave enough space around the machine for
proper operation and maintenance. The space
should be no less than 1M in front and on the two
sides of the machine and 0.5M behind it.
If the machine has to be installed outdoors, a
protective shelter should be built.
Keep the machine away from flammable gases.
Note:
For the safety and proper operation, keep the
machine at least 0.75M away from any wall.
