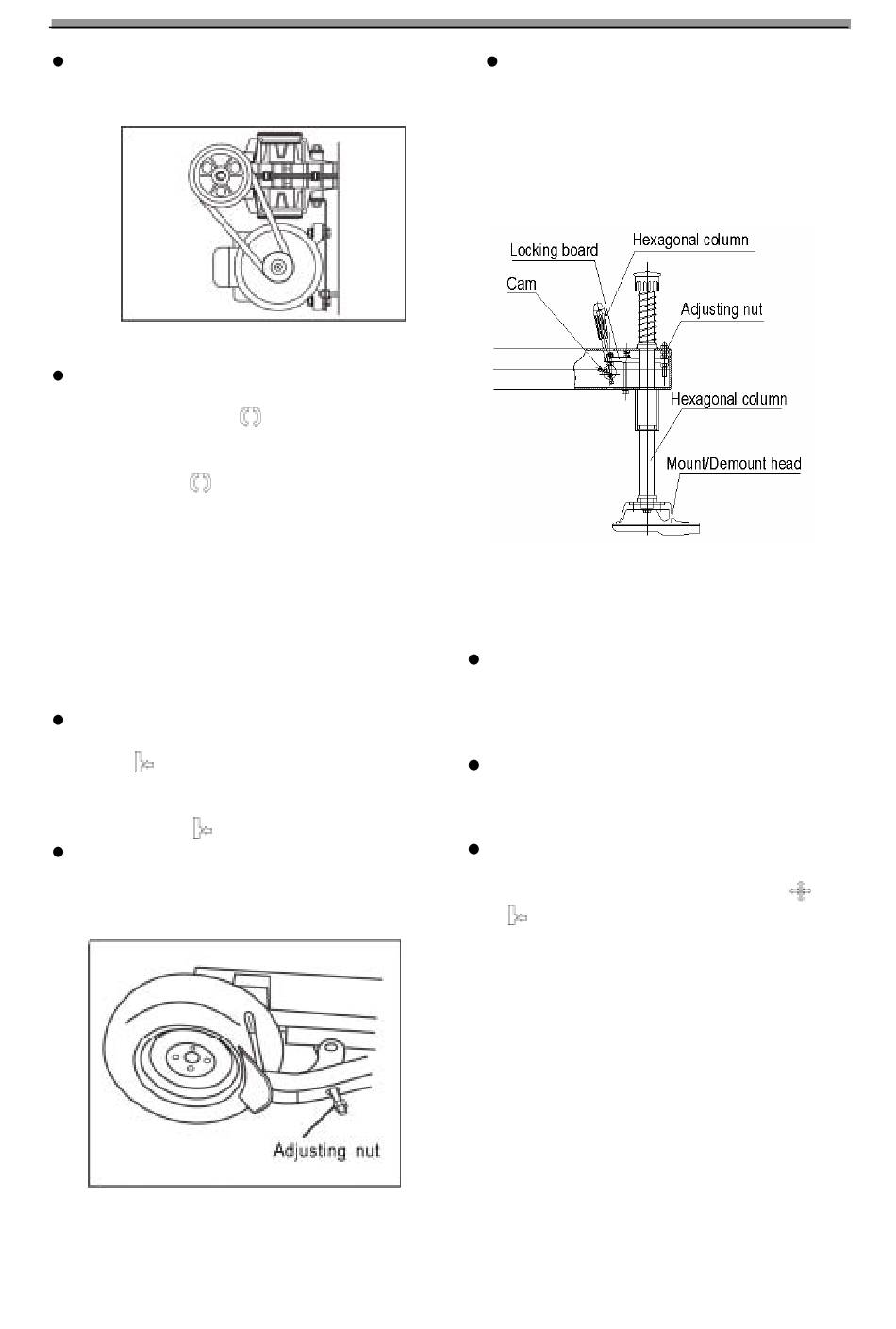

The gearing chain: The gearing chain in this
machine is made up of motor, pulley, worm
reducer, turntable and so on (Fig. 29).
The motor RPM is about 1400. The ratio of
speed is 200. The rotary direction is
controlled by pedal "
pedal to make the turntable rotate clockwise.
Release the pedal to stop the turntable. Lift
up the pedal " " with foot, the motor and the
turntable will both turn counter-clockwise. If
contrary to above, change the phase wire of
the motor.Connect the ground wire to ground.
In the operation, the turntable generally turns
clockwise, only when the operation is
obstructed occasionally, it needs to turn
counter-clockwise.

Bead Breaker

The bead breaker is on the right side of the
cabinet. As the procedure requires, press down
pedal " " to start the bead breaker cylinder, the
piston rod will pull the bead breaker towards the
cabinet, with magnitude around 14075N.
Release pedal " ", the bead breaker will retract.
The bead breaker is able to swing within a
certain range. In case the range of swing is
not appropriate, adjust the nut (Fig.30) at the
right end of the piston rod.

Hexagonal Column System

(with tilting post)
Fig.29
" (Fig.29). Depress the
Fig.30
The Hexagonal column (Fig.31 ) can move up
and down freely while the hexagonal column
locking handle
hexagonal column
120° or so, the cam connected with the handle
will lift the locking board to lock the Hexagonal
column . If it can't realize, you can adjust the
bolt's position to arrive at it.
Air Pressure Regulator, Gauge and
Lubricator Assembly
As shown in Fig.32, there is a button on the
regulator. When pulled up, the pressure can be
increased or decreased by turn it clockwise or
counter-clockwise. After adjusting the operation
pressure, press the button down to lock it.
The air cleaner works to filter the water and
impurity in the compressed air. When water and
impurities run beyond the red line, turn open the
draining valve to release them.
The lubricator is used to add a certain amount of
lubricant into gas for the moving parts in the
cylinder and regulator. Depress pedal "
" " 3～5 times, a drop of lubricant will fall into
the cup in the regulator. If it does not happen,
the adjusting screw need to be adjusted.
