LAUNCH
Tyre Changer(TWC Series)

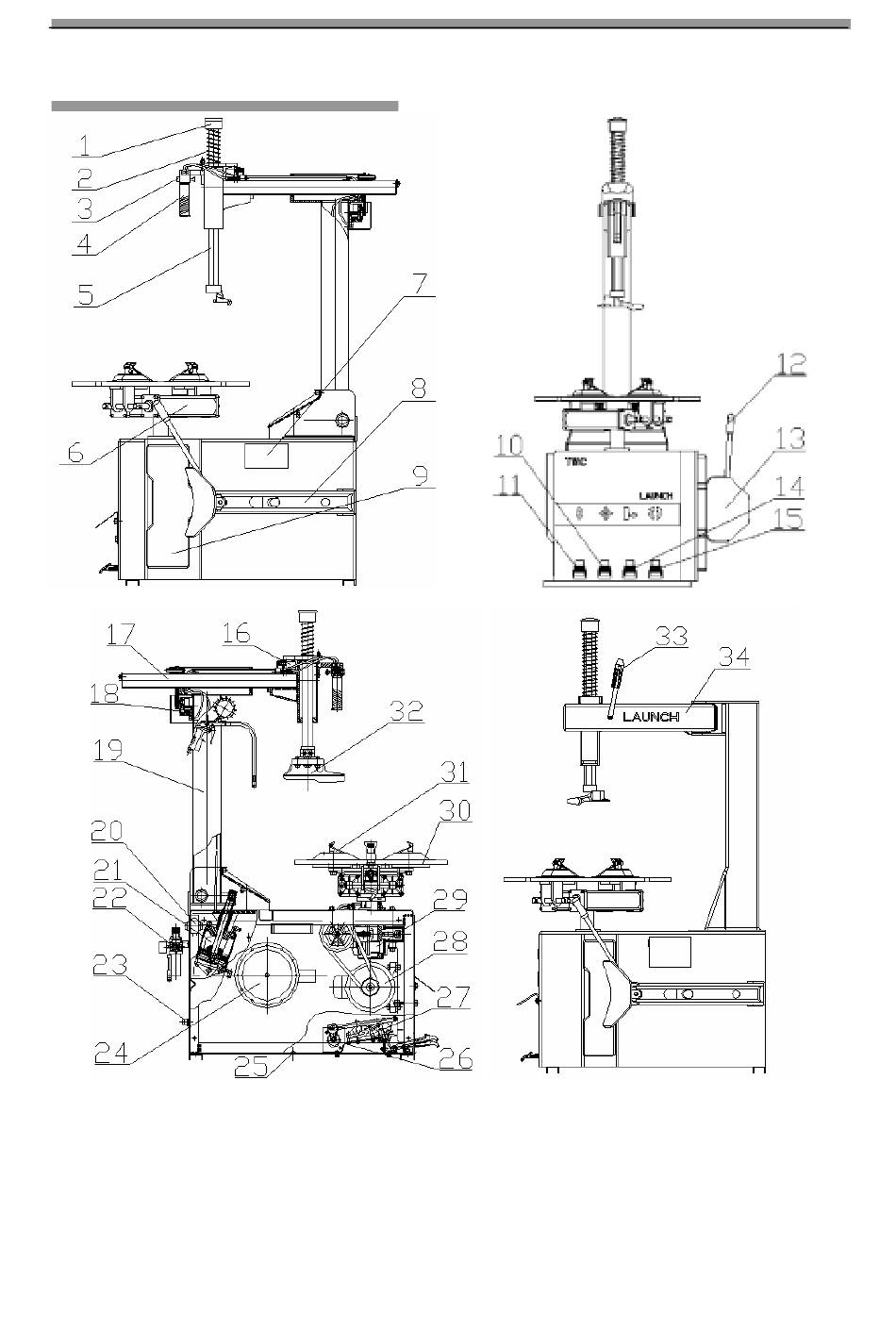

Main Structure
Fig.01
1. Cap 2. Return spring 3. Locking button 4. Locking handle 5. Hexagonal column 6. Clamping cylinder
7. Lubricant box
8. Bead breaker arm
9. Rubber pad
10. Clamping cylinder pedal
11. Tilting post pedal
12. Bead breaker handle
13. Bead breaker shoe
14. Bead breaker pedal
15. Turntable
pedal
16. Hexagonal locking cylinder 17. Horizontal arm 18. Horizontal arm locking cylinder 19. Post 20. Reducing
valve 21. Tilting post cylinder 22. Air pressure regulator, gauge and lubricator assemble 23. Outlet of wire
24. Bead breaker cylinder 25. Ground wire 26. Motor power switch 27. Control valve 28. Motor 29. Gear box
30. Turntable 31. Clamping jaw 32. Mount/demount head 33. Handle 34. Swing arm
28
