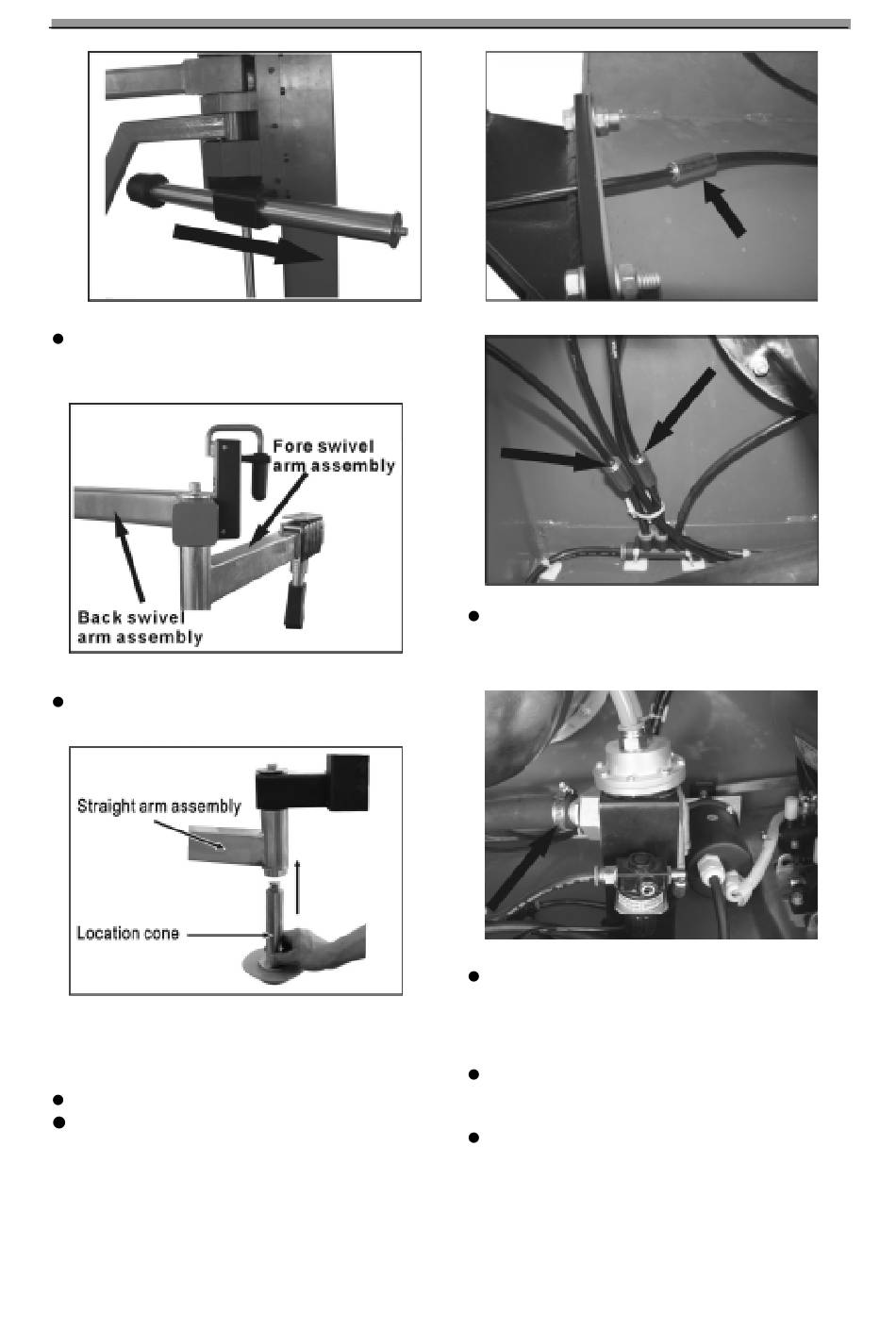

Fig.17
Take out fore swivel arm unit and relevant
fastening parts, apply lubricant on the parts, then
assemble them as in fig.18.
Fig.18
Take out the cone, assemble it on fore swivel arm
as in fig.19.
Fig.19
Air Connections
Remove side plate of cabinet.
Find PU hoses out from the supplement arm unit
and insert it into the reducer union. (fig.20). For
the tyre changer with tilting post, get the PU
hose out from the tilting post into another reducer
unior (fig.21).
For the tyre changer with fast inflation, take out
rubber hose and connect it with deflating valve as
fig.22, get the other end of hose out cabin
through the hole on back plate.
Mount the side plate of cabinet to its original
position.
Installation of Air Tank
Fix the air tank on the cabinet with two sets of
bolts, nuts, spring washers and flat washer (Fig.
23).
Connect the rubber hose with the joint on the air
tank and fasten the screw of the hose hoop as
figure 24.
Installation of Barometer
Install the barometer box on one side of the tilting post
according to figure 25.
34
Tyre Changer(TWC Series)
Fig.20
Fig.21
Fig.22
