AK-CC55 Compact

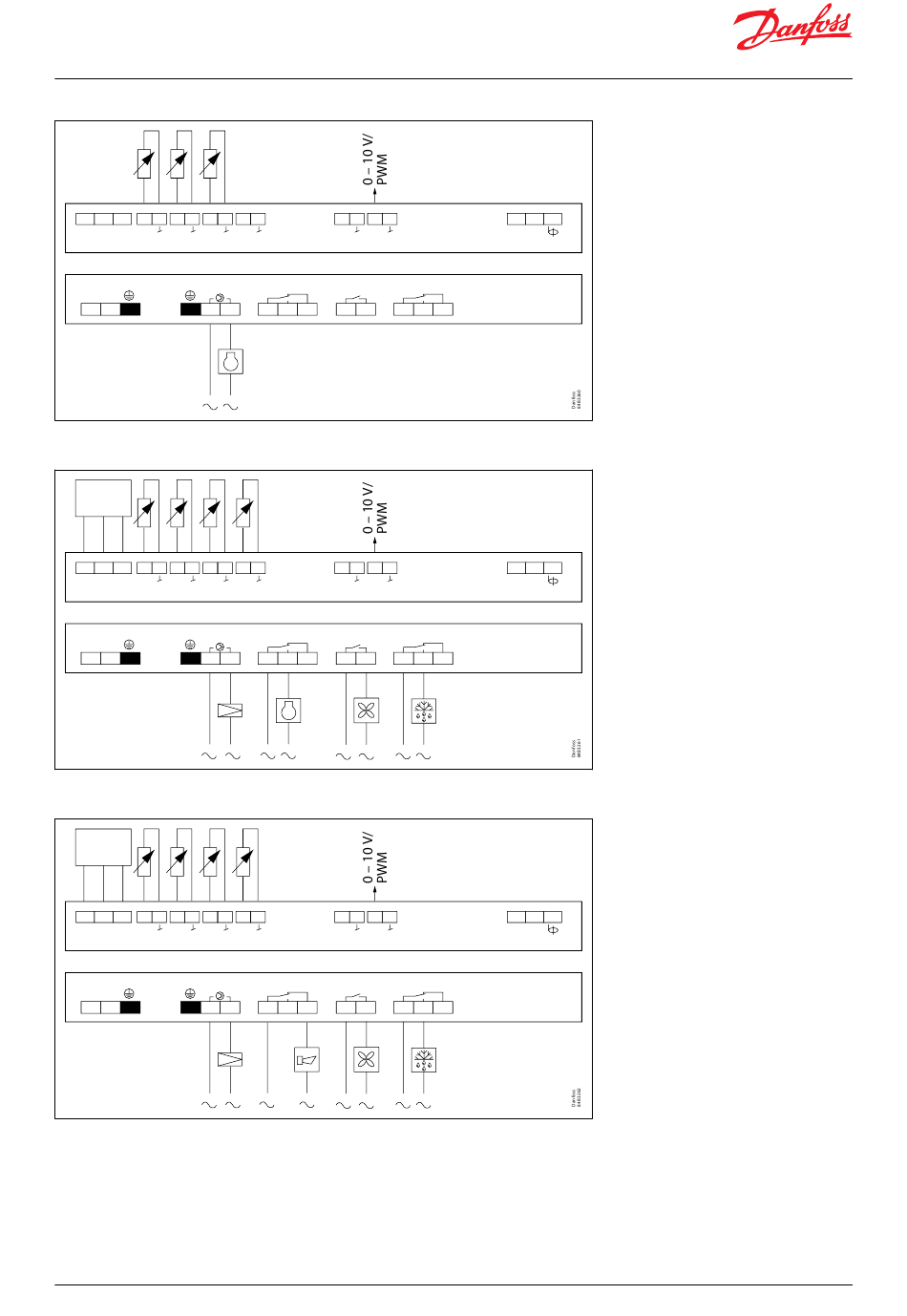

Figure 32: Connections for application 4
40 41 42 43 44 45 46 47 48 49 50
S3 S4 S5
115 – 230 V AC
Comp.
L N
1 2 3 7 8
Figure 33: Connections for application 5
P
1 3 2
40 41 42 43 44 45 46 47 48 49 50
5V s
Pe S2 S3 S4
115 – 230 V AC
AKV
L N
1 2 3 7 8
Figure 34: Connections for application 6
P
1 3 2
40 41 42 43 44 45 46 47 48 49 50
5V s
Pe S2 S3 S4
115 – 230 V AC
AKV
L N
1 2 3 7 8
© Danfoss | Climate Solutions | 2022.08
60 61 70 71
AI5 DI2 AO1
DI1
DO2 DO3
9 10 11 12 13 14 15 16 17
Custom set-up
60 61 70 71
AI5 DI2 AO1
S5
Comp. Fan
9 10 11 12 13 14 15 16 17
60 61 70 71
AI5 DI2 AO1
S5
Alarm Fan
9 10 11 12 13 14 15 16 17
4
83 84 85
B - A +
MODBUS
DO4
5
83 84 85
B - A +
MODBUS
Defrost
6
83 84 85
B - A +
MODBUS
Defrost
