Application Set-Ups And Io Connections - Danfoss AK-CC55 Compact User Manual

AK-CC55 Compact
AK-CC55 Compact is optimised for control of one evaporator plus different combinations of light, rail heat and alarm
relays.
It has 4 Digital Outputs (DO), known as DO1 – DO4, one Analogue Output (AO), known as AO1, 4 Analogue Inputs
(AI), known as AI1 – AI4, an input that can be used as either an AI5 or as a DI (Digital Input) DI1, and one Digital Input
(DI2).
It has 9 different application options (Application 1 – Application 9) to control the functions of the input and output
relays.

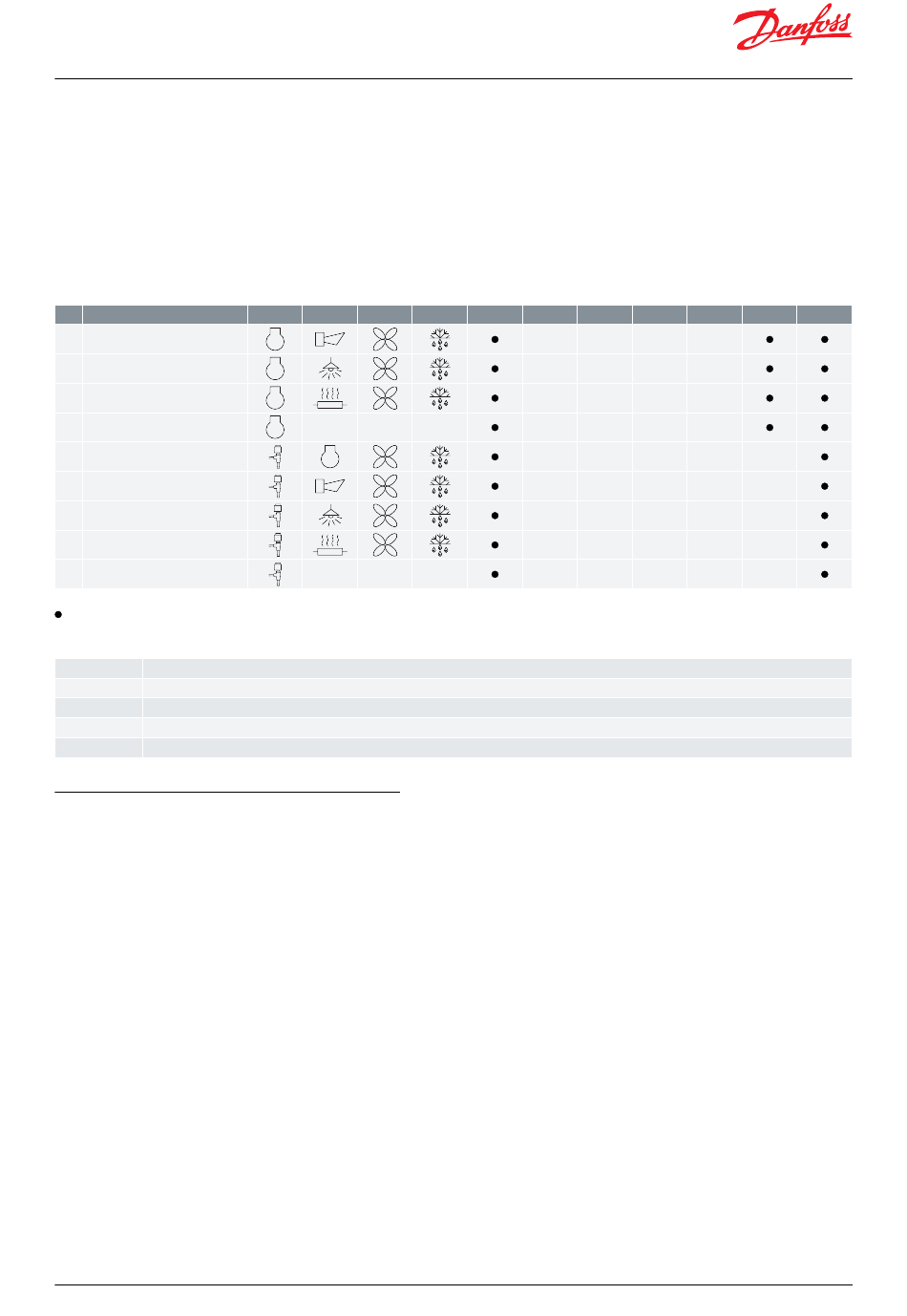

Table 7: Application with digital and analogue in/output specification
No. Application description
1 TXV appl.
2 TXV appl.
3 TXV appl.
4 TXV appl./ User def. config.
5 EEV appl.
6 EEV appl.
7 EEV appl.
8 EEV appl.
9 EEV appl./ User def. config.
= Optional use
Table 8: Sensor description
Pe Evaporating pressure
S2 Gas outlet of evaporator
S3 Return air temperature
S4 Discharge air temperature
S5 Evaporator temperature

Application set-ups and IO connections

AK-CC55 Compact is designed for control of one evaporator + different combinations of light, rail heat and alarm
relays.
The most important variations are:
Applications 1-4: TEV applications
Control of compressor or solenoid valve, alarm relay, lights, rail heat
Application 4: Configurable outputs, e.g.: Dual compressor operation, heat function, night blind, ECO fan
Applications 5-9: EEV applications
Control of AKV valve, compressor, alarm relay, light, rail heat.
9: Configurable outputs, e.g.: Dual compressor operation, heat function, night blind, ECO fan
© Danfoss | Climate Solutions | 2022.08
DO1 DO2 DO3 DO4
User def. User def. User def.
User def. User def. User def.
AO1 AI1 AI2 AI3
S3 S4
S3 S4
S3 S4
S3 S4
Pe S2 S3
Pe S2 S3
Pe S2 S3
Pe S2 S3
Pe S2 S3
BC365212986197en-000201 | 25
AI4 AI5/ DI1 DI2
S5
S5
S5
S5
S4 S5
S4 S5
S4 S5
S4 S5
S4 S5
