MultiFRAD User Guide

LAN-Based

The LAN-based remote configuration requires a Windows Sockets compliant TCP/IP stack. TCP/IP
protocol software must be installed and functional before the configuration program can be used.
1
You must assign an Internet (IP) address for the PC and for each node that will be managed by
the configuration program. Refer to the protocol software documentation for instructions on how
to set the IP addresses.
Once you have completed this step, you should be able to use the protocol Ping command for
the PC host name. You should also test the network interface configuration by Pinging another
TCP/IP device that is connected to the network.
2
Install the MultiFRAD software on the local PC. When installed click Start | Programs |
MultiFRAD 200 | Configuration Port Setup, or double-click the Configuration Port Setup icon
in the MultiFRAD 200 program group.
3

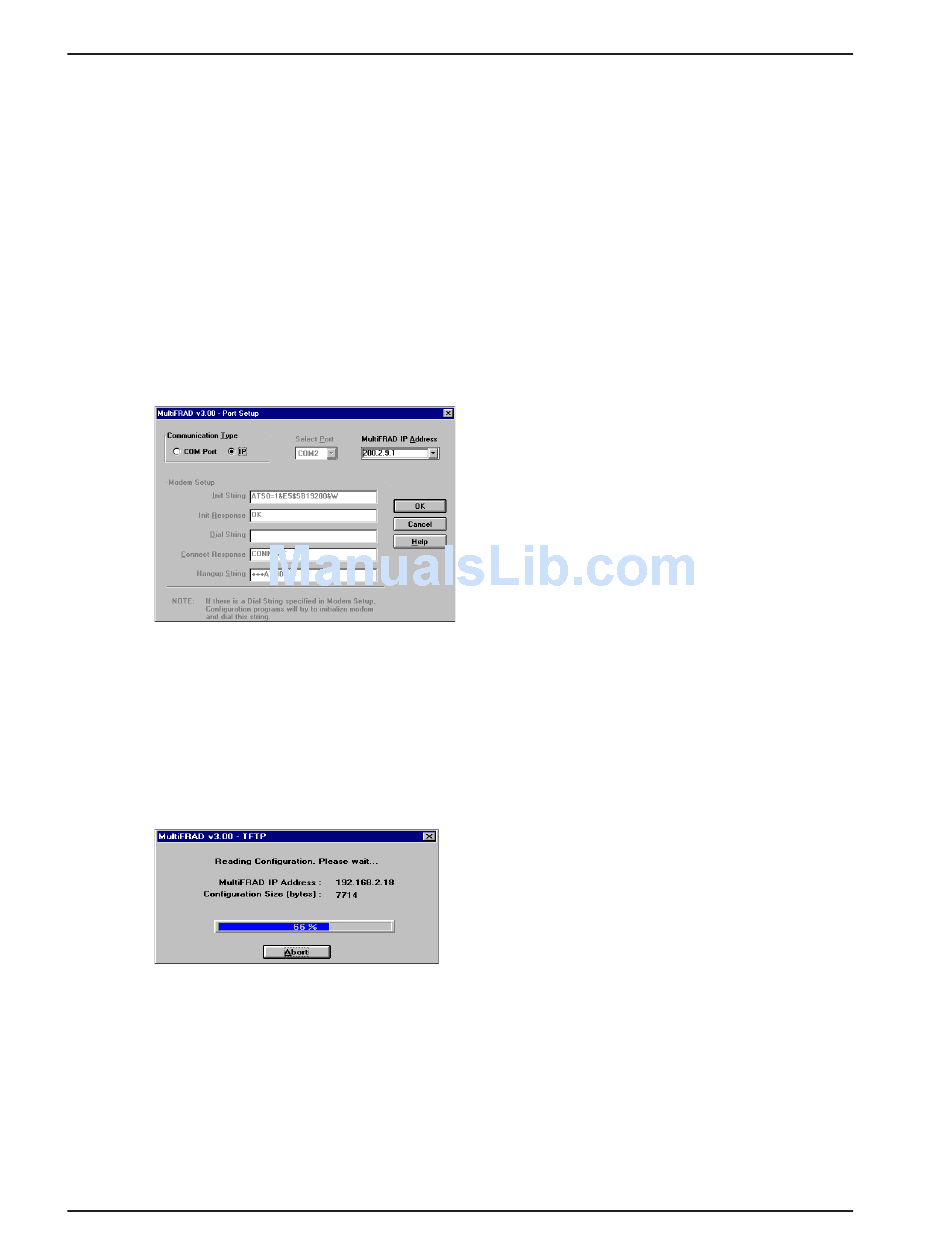

The MultiFRAD - 200 Series Setup dialog box is displayed.
Verify that the Communication Type field is set IP.
In the MultiFRAD IP Address field, enter the IP Address of the remote MultiFRAD.
4
Click OK when you are satisfied with your selections.
5
Run the MultiFRAD Configuration program. Click Start | Programs | MultiFRAD 200 |
MultiFRAD Configuration, or double-click the MultiFRAD Configuration icon in the
MultiFRAD 200 program group.
The TFTP (Reading Configuration.) dialog box is displayed.
6
The MultiFRAD main menu is displayed. This is the main menu of the remote MultiFRAD. Refer
to the online Help provided with your MultiFRAD for the definition of each dialog box and field
within the main menu or any related dialog box.
7
After you have changed the configuration of the remote MultiFRAD, click Download Setup to
update the configuration. The remote MultiFRAD will be brought down, the new configuration
written to the unit, and the unit will reboot.
8
Click Exit when the downloading is complete.
9
Double-click the MultiFRAD Configuration icon in the MultiFRAD 200 program group to verify
that the MultiFRAD is running by again displaying the MultiFRAD main menu .
