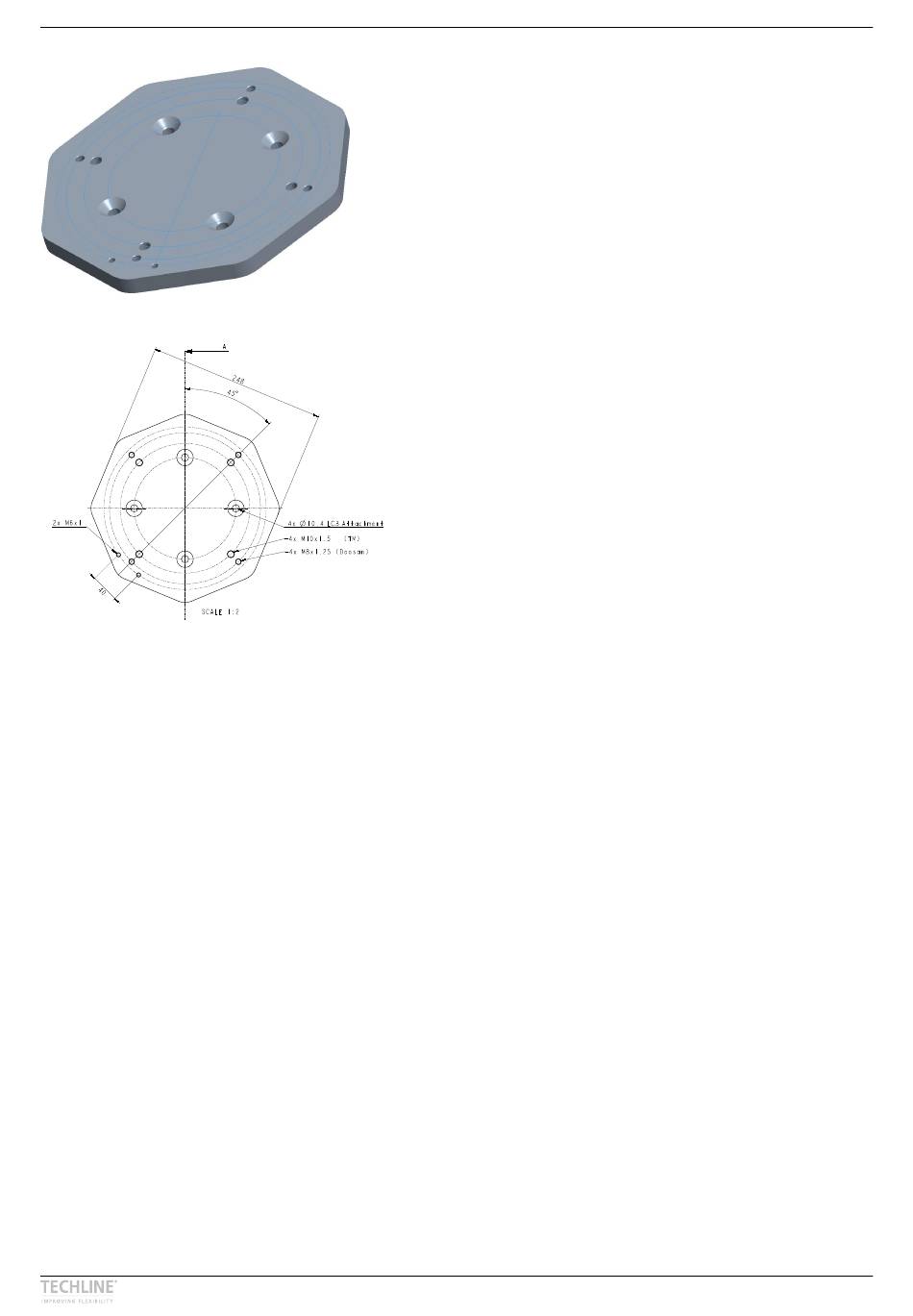

Doosan top mounting plate
Approved by:
3 4 5
Modified by:
Created by:
Updated:
No. Of check dimensions (#):
2D State:
3D State:
No.:
WE IMPROVE YOUR LIFE
Format: A3 Sheet:
General Tolerance:
General Surface Character:
Product:
LC3
Confidential: Property of LINAK A/S GROUP HEADQUARTER, DK-6430 NORDBORG, DENMARK Phone +45 73 15 15 15 ; FAX +45 74 45 80 48. Not to be handed over to, copied or used by third party.
3 4
-
6 7
Jens Reuss Kristesen
Jesper Helbig
2022-09-05
-
Design/Iteration 10
Design/Iteration 7
1002W1389-A
Material: Aluminium -
Approved by:
EN AW 6082-T6 Jens Reuss Kristesen
Type: Modified by:
Color: Nature Created by: Jesper Helbig
- 2022-09-05
Producer: Updated:
1/1 Scale: 3:10 Volume: 746189 mm³ No. Of check dimensions (#):
DIN ISO 2768-mK Design/Iteration 10
2D State:
Ra 3.2 µm Design/Iteration 7
3D State:
Name: No.:
Top Plate Doosan TM 1002W1389-A
D
E
8
A
B
C
D
E
-
