Summary of Contents for Linak DESKLINE DL16

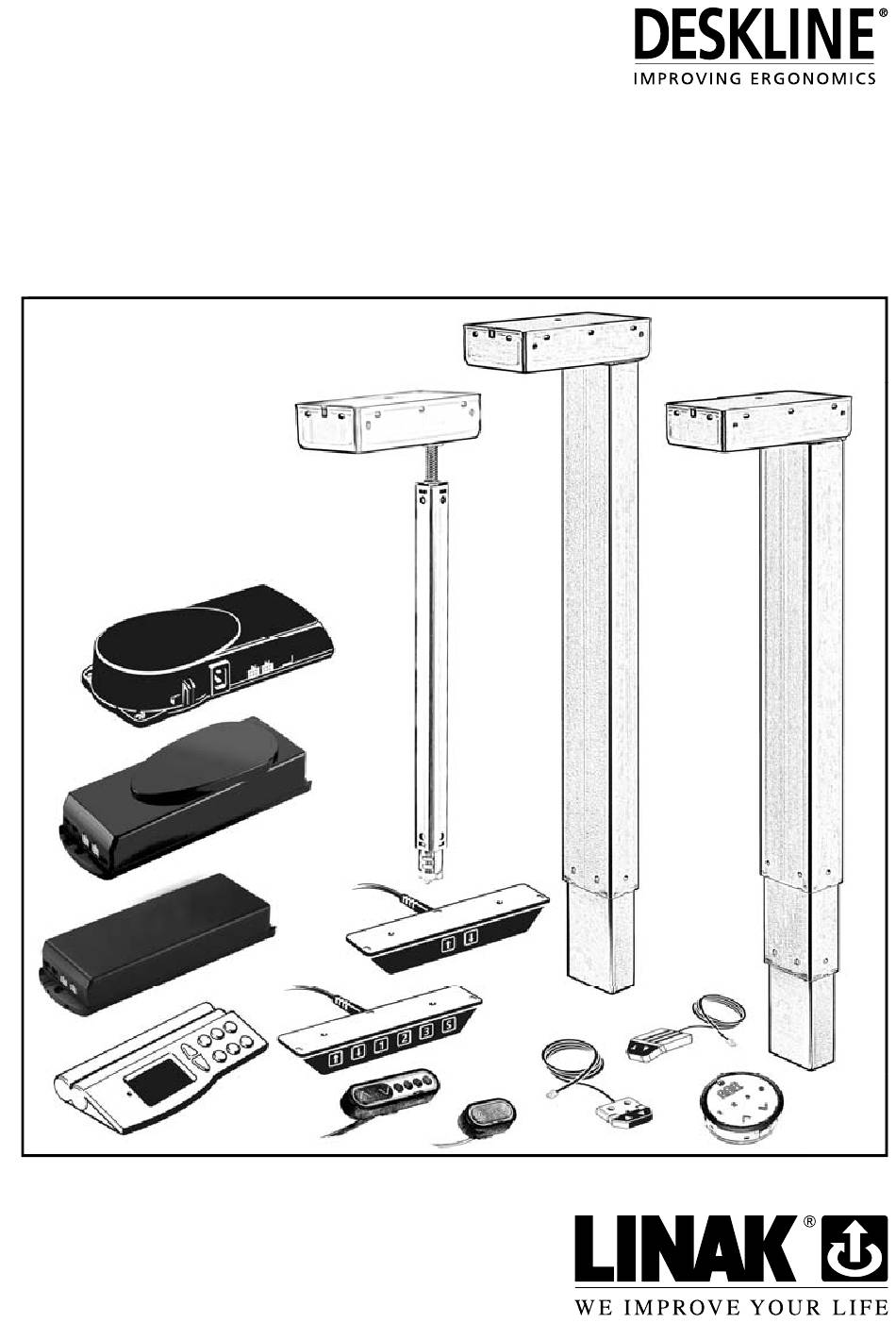

- Page 1 U S E R M A N U A L DL15/DL16/DB16 systems To learn more about LINAK please visit: W W W . L I N A K . C O M...
-
Page 3: Table Of Contents
Electrical connection of the DL15/DL16/DB16 system ..................14 ® Initialisation of the DESKLINE DL15/DL16/DB16 parallel systems ..............15 Accessories and repair ............................16 Disposal of LINAK’s products ..........................17 Labels ................................... 18 Drawing appendix .............................. 20 Declaration of confi rmity ........................... 23 Addresses ................................24... -
Page 4: Preface
Preface We are delighted that you have chosen a product from LINAK A/S. LINAK systems are high-tech products based on many years of experience in the manufacture and development of actuators, electric control boxes, controls, and chargers. We are also constantly improving our products to meet customer requirements. -
Page 5: Important Information
Important information Important information on LINAK ® products can be found under the following headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: During Operation
(continued) • System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation • If the control box makes unusual noise or smells, switch off the mains voltage immediately. -
Page 7: Misc. On The Deskline Dl15/Dl16/Db16 System
There is a 36 months’ warranty on the DESKLINE products against manufacturing calculated faults from the production date of the individual products (see label). LINAK A/S’ warranty is only valid in so far as the equipment has been used and maintained correctly and has not been tampered with. Furthermore, the system must not be exposed to violent treatment. -
Page 8: Description Of The Deskline Dl15/Dl16/Db16 System

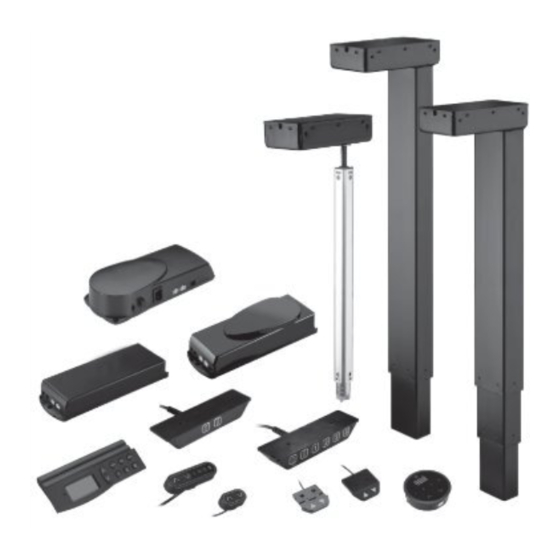

Description of the DESKLINE ® DL15/DL16/DB16 system ® Each DESKLINE DL15/DL16/DB16 lifting unit is equipped with a motor and parallel/ memory drive is ensured by means of software in the CBD4/CBD5/CBD6 that also takes account of oblique load on the desk. Soft start and stop are also part of this software, which ensures a soft start and stop when adjusting the desk. -
Page 9: Mounting Guidelines For The Deskline Dl15/Dl16 System
Mounting guidelines for the DESKLINE DL15/DL16 system The lifting units are normally mounted with the motor housings upwards and pointing towards each other (see fi gure 2). The steel motor housing is supplied with 6 pcs. of M6 threaded holes meant for mounting on the desk frame. - Page 10 Figure 3 ® (Example of how to mount a 2 parallel DESKLINE DL15/DL16 system) To avoid damage of the lifting unit there must be min. 1 mm space between the end of the screw for the mounting bracket and the surface of the lifting unit (see fi...
-
Page 11: Mounting Guidelines For The Db16 System
Mounting guidelines for the DB16 system The motor housing is supplied with 6 pcs. M6 threaded holes meant for mounting on the desk frame. We advise you to fasten the desk frame by means of 6 pcs. M6 screws of a good quality and a suitable length, which must not go further into the motor housing than max.10 mm. - Page 12 It is important that the correct screws are used. Check that the screws are fi tted correctly to ensure a correct function in order to prevent the guidance from coming apart when the desktop is lifted. As the desktop amplifi es the sound, we advise you to place a vibration/ shock absorbing material between the desktop and the desk frame.
-
Page 13: Mounting Guidelines Cbd4/Cbd5/Cbd6
Mounting guidelines CBD4/CBD5/CBD6 The control box is to be fastened with 4 screws (3 screws for CBD5 and CBD6) with a head diameter between ø 8 and ø 10 mm. Out of regard for the tension surface ø 10 mm is preferable due to lower surface tension. See drawing appendix for placing of mounting holes and the space the CBD takes up. -
Page 14: Electrical Connection Of The Dl15/Dl16/Db16 System
The earth connection does not protect other electrical products. CBD4/CBD5 with mains cut-off (non ZERO models) If the power cable is damaged it has to be replaced by an authorized LINAK service centre to avoid any danger. DL15/DL16 cable... -
Page 15: Initialisation Of The Deskline Dl15/Dl16/Db16 Parallel Systems
Initialisation of the DESKLINE DL15/DL16/DB16 parallel systems The DESKLINE system is intialised by pressing the down button once or twice and holding it down until the DL15/DL16 runs into end stop. It will then automatically run approx. 3 mm out again and hereafter slowly run in again. Only release the down button when the movement has completely stopped. -
Page 16: Accessories And Repair
Accessories Please contact your nearest LINAK dealer for information. Repairs Systems should only be repaired by an authorised LINAK service centre or engineer. Systems to be repaired under warranty must be sent to an authorised LINAK service centre. Warning! By unauthorised opening of the system there is a risk that it may mal- function at a later date. -
Page 17: Disposal Of Linak's Products
Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classifi cation to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 18: Labels
"Details regarding safe disposal of used and leaking batteries: Batteries should be disposed in accordance with appropriate federal, state and local regulations. LINAK recommends that used or leaking batteries are disposed through local recycling system. Please do not throw used or leaking batteries in normal household waste or in nature. - Page 19 Label for CBD4 Label for CBD5 Label for CBD6...
-
Page 20: Drawing Appendix
DRAWING APPENDIX DL15 lifting unit DL16 lifting unit... - Page 21 DB16 CBD4...
- Page 22 CBD5 CBD6...
-
Page 23: Declaration Of Confi Rmity
LINAK shall be responsible solely that the LINAK products comply with the specifi cations set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specifi c LINAK product can be used for the application in question. -
Page 24: Addresses
E-mail: info@linak.it . www.linak.it information on its products. JAPAN While LINAK uses its best efforts to fulfi l orders, LINAK LINAK K.K. cannot, for the same reasons as mentioned above, guarantee Phone: +81 45 533 0802 . Fax: +81 45 533 0803 the availability of any particular product.
