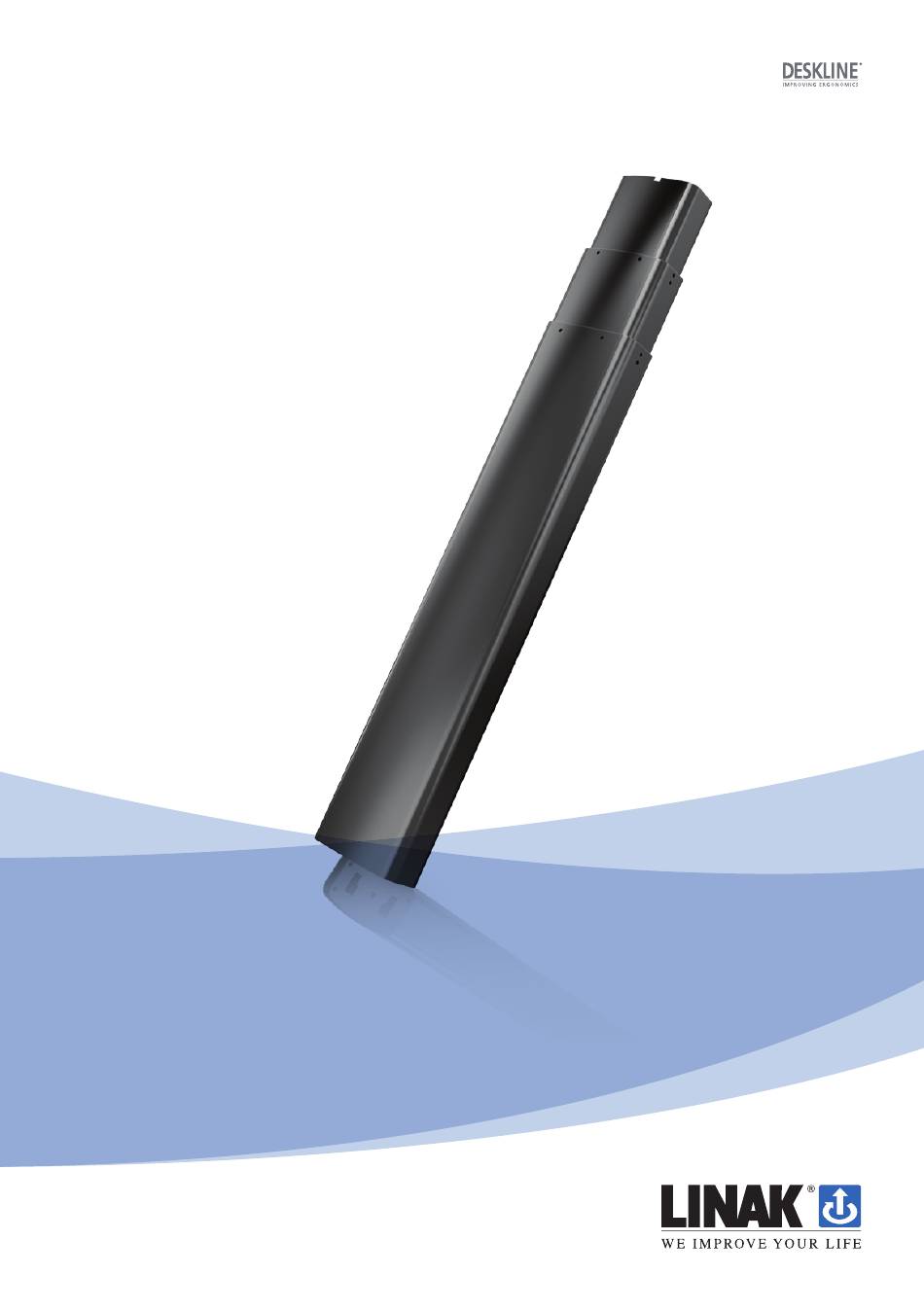

- Page 1 DL4S system with CBD6S User manual LINAK.COM/DESKLINE Page 1 of 24...
-
Page 2: Table Of Contents
Mounting guidelines for the DL4S ....................12 Mounting guidelines CBD6S (SMPS) .................... 13 Anti-Collision ..........................14 Accessories ............................ 15 Disposal of LINAK’s products......................16 Labels ............................17 Drawing appendix .......................... 18 Declaration of conformity ......................21 Addresses ............................24 Page 2 of 24... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For
Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Columns: 1 single DL4S or 2 in parallel Control boxes: CBD6S 200W, CBD6S 300W Controls: DP1U / DPF1M (if memory function is required) DPT / DPF1C / DP1CS (if memory function and display is required) or DPA / DPB / DPH / DP1K / DP1V / DPF1K (if only up/down is required) DPF1D (If display is required) -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Before Installation, Reinstallation Or Troubleshooting
• System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation • If the control box makes unusual noise or smells, switch off the mains voltage immediately. -
Page 7: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 8: Repairs
Products under warranty must also be returned to authorised LINAK service centres. Further information on DESKLINE warranty can be found on the LINAK website www.linak.com/warranty. Warning! If any of the DESKLINE products are opened, there will be a risk of subsequent malfunction. -
Page 9: Misc. On The Deskline ® Dl4S System
Do not bolt the legs to the floor so that free movement is prevented. This could cause serious damage to the legs in fault situations. Warranty This DESKLINE product is subject to warranty pursuant to the terms of LINAK DESKLINE Warranty Paper, available on the LINAK website www.linak.com/warranty. Maintenance Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks. -
Page 10: Etl-Markering
ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962... -

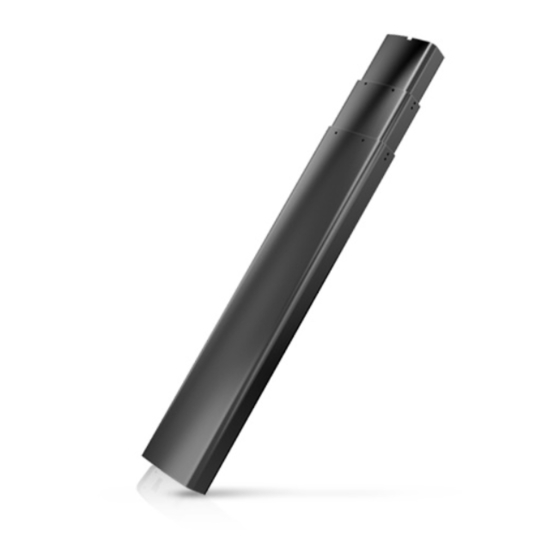

Page 11: Description Of The Deskline ® Dl4S System
Description of the DESKLINE DL4S system ® Each DESKLINE DL4S lifting units is equipped with a motor and parallel/memory drive is ensured by means of software in the ® CBD6S (SMPS) that also takes account of oblique load on the desk. Soft start and stop are also part of this software, which ensures a soft start and stop when adjusting the desk. -
Page 12: Mounting Guidelines For The Dl4S
Mounting guidelines for DL4S The mounting bracket for the crossbar is mounted on the largest profile. The cable is led out at the top of the small profile. This means that the column must always be mounted with the largest profile downwards. The mounting of the bottom part is analogue to the top part shown A suitable desk height in the lowest position can be obtained by mounting the lifting unit on a 6-8 mm bottom plate by means of 4 pcs. -
Page 13: Mounting Guidelines Cbd6S (Smps)
Mounting guidelines CBD6S (SMPS) The control box is to be fastened with 2 screws with a head diameter between ø 8 and ø 10 mm. Out of regard for the tension surface ø 10 mm is preferable due to lower surface tension. See drawing appendix for placing of mounting holes and the space the CBD takes up. -
Page 14: Anti-Collision
Anti-Collision™ The function (anti-collision) is an option for the standard CBD6S (SMPS) control box. A system with anti-collision can limit material damages on a desk if a collision with a solid object should occur. Enabling the anti-collision To enable the anti-collision function a little plug called a dongle must be mounted in one of the 2 control ports. The function is only active when the dongle is mounted. -
Page 15: Accessories
Please contact your nearest LINAK dealer for information. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. Spare parts Please contact your nearest LINAK dealer for information on spare parts. Page 15 of 24... -
Page 16: Disposal Of Linak's Products
Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed or scrapped we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 17: Labels
Labels Label for DL4S Page 17 of 24... -
Page 18: Drawing Appendix
DRAWING APPENDIX 1235 5 DL4S 560 2 Drawing No.: DRW0002 Drawing No.: DRW0002 1235 5 M6x4 M6x4 560 2 Page 18 of 24... - Page 19 CBD6S 200W (SMPS) Page 19 of 24...
- Page 20 CBD6S 300W (SMPS) up to 4 channels Page 20 of 24...
-
Page 21: Declaration Of Conformity
DECLARATION OF CONFORMITY LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares that LINAK Actuator System composed of: Control Box(s) CBD6SP00020A-309 CBD6S*000*0A-709 (The ‘*’ in the product description can either be a character or a number, thereby defining the variation of the product) - Page 22 LINAK APPLICATION POLICY The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product defined as hardware, software, technical advice, etc. related to an existing or a new customer application. LINAK products as defined above are applicable for a wide range of applications within the Medical, Furniture, Desk and Industry areas.
- Page 23 Page 23 of 24...
-
Page 24: Addresses
® without prior notice. LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product. The user is responsible for determining the suitability of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Delivery’, available on LINAK websites.
