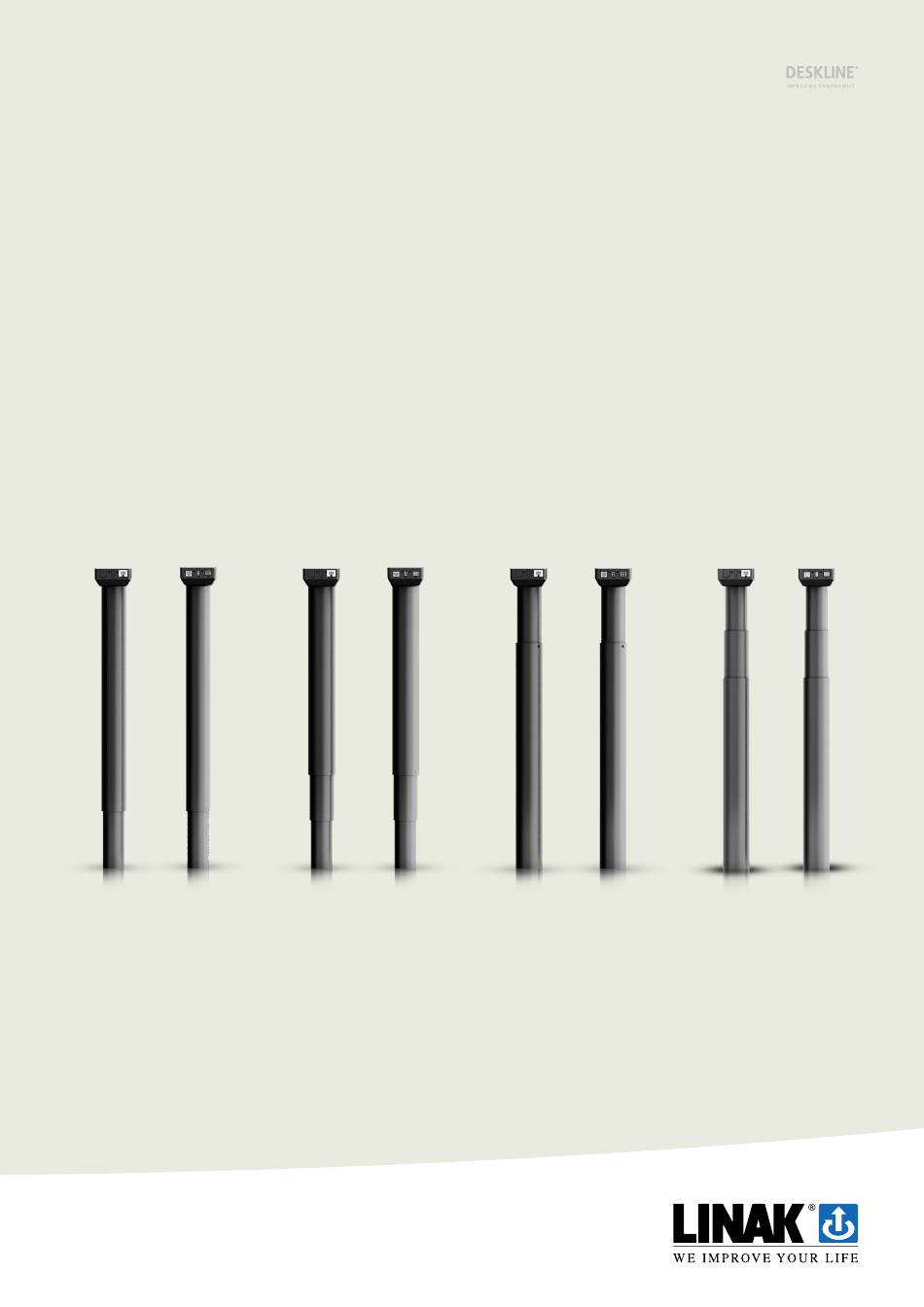

- Page 1 DL8 IC, DL9 IC, DL10 IC and DL11 IC, system User Manual LINAK.COM/DESKLINE...
-
Page 2: Table Of Contents
DL8 IC, DL9 IC, DL10 IC, and DL11 IC | Contents Preface ������������������������������������������������������������������������������������������������������������������������������������������ 3 Important safety information ��������������������������������������������������������������������������������������������������������� 4 Informations importantes en matière de sécurité ���������������������������������������������������������������������������� 5 The DESKLINE system ������������������������������������������������������������������������������������������������������������������� 6 ® Intended use ����������������������������������������������������������������������������������������������������������������������������� 6 Warranty ���������������������������������������������������������������������������������������������������������������������������������� 6 Products ������������������������������������������������������������������������������������������������������������������������������������... -
Page 3: Preface
This User Manual does not address the end user� It is intended as a source of information for the equipment or system manufacturer only, and it will tell you how to install, use and maintain your LINAK electronics� The manufacturer of the end product has the responsibility to provide a User Manual, where relevant safety information from this manual is passed on to the end user�... -
Page 4: Important Safety Information
Failure to comply with instructions marked with the ”NOTICE” symbol may result in serious damage to the system or one of its components� Read all instructions before using this product� Important safety information on LINAK products can be found under the following heading(s): ®... -
Page 5: Informations Importantes En Matière De Sécurité
Le non-respect des instructions marquées du symbole “AVIS” peut entraîner de graves dommages au système ou à l’un de ses composants� Lisez toutes les instructions avant d’utiliser ce produit� Des informations de sécurité importantes sur les produits LINAK sont disponibles dans la ou les rubriques ®... -
Page 6: The Deskline
Altitude Max� 2000 m Do not use outdoors or in wet areas� Do not use it in environments that have to be cleaned with aggressive detergents� Warranty The warranty terms for DESKLINE products are described in this warranty paper: https://cdn�linak�com/-/media/files/warranty/warranty-paper-deskline-eng�pdf... -
Page 7: Products
DL8 IC, DL9 IC, DL10 IC, and DL11 IC | Products DESKLIFT™ columns DL8 IC DL9 IC • 2-part upside-down column • 3-part upside-down column DL10 IC DL11 IC • 2-part column • 3-part column • PLUS™ (option) • PLUS™ (option) Switch Mode Power Supply (SMPS) SMPS001 SMPS002... -
Page 8: Safety Instructions
DL8 IC, DL9 IC, DL10 IC, and DL11 IC | Safety instructions Important safety instructions General DANGER Plugged-in products Risk of electric shock • Always unplug this product from the electrical outlet before assembling, disassembling, cleaning, or servicing� • Only use the product indoors in dry locations� WARNING General precautions Risk of burns, fire, electric shock, or injury to persons... -
Page 9: Before Installation, Re-Installation, Cleaning, Or Troubleshooting
® In order to avoid the risk of malfunction, all DESKLINE repairs must only be carried out by authorised LINAK ® workshops or repairers, as special tools must be used and special gaskets must be fitted� Lifting units under... - Page 10 DL8 IC, DL9 IC, DL10 IC, and DL11 IC | 10 WARNING • This appliance can be used by children aged from 8 years, and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved�...
-
Page 11: Consignes Importantes De Sécurité
DL8 IC, DL9 IC, DL10 IC, and DL11 IC | 11 Consignes importantes de sécurité AVERTISSEMENT • Cet appareil peut-être utilisé par des enfants âgés de 8 ans et plus, ainsi que les personnes dont les capacités physiques, sensorielles ou mentales sont réduites ou ayant un manque d´expérience et de connaissance si elles ont bénéficié... -
Page 12: Declaration Of Conformity
LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares under our sole responsibility that LINAK Actuator System, model: DLIC, for use in elevation tables: with main component (marked with CE): Lifting Column with integrated control, DLIC (Master, M): DLXXXXXXMXXXXXX... - Page 13 EU DECLARATION OF CONFORMITY LINAK A/S Smedevænget 8 DK - 6430 Nordborg Hereby declares under our sole responsibility that LINAK ® Switch Mode Power Supply, type SMPS006 (ASW0552-29020002B) and SMPS001 (ASW0539-24020002A) complies with the EMC Directive 2014/30/EU (OJ L 96, 29.3.2014, p. 79–106) according to following standards:...
-
Page 14: Manufacturer's Declaration
DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY LINAK A/S Smedevænget 8 DK - 6430 Nordborg Herewith declares that LINAK DESKLINE products as characterized by the following models and types: ® Master and follower: DLXXXXXXMXXXXXX and DLXXXXXXSXXXXXX Desk Panels: DP1C, DP1K, DPT, DPB, DPF, DP1L, DP1V, DPA, DPH, DP1U, WDPL1, DPG Power supply: SMPS006, SMPS001 Accessory: KNC1a00bbcdddd-eeee, where a can be 0 or 1;... -
Page 15: Installation
WARNING Plastic bags Risk of suffocation • Keep the plastic bags away from babies and children� LINAK recommends using the DESKLINE system in push applications with the motor housing ® mounted upwards� Do not bolt the coluimns to the floor so that free movement is obstructed� This could cause serious damage to the columns in fault situations�... -
Page 16: Mounting The Feet
DL8 IC, DL9 IC, DL10 IC, and DL11 IC | 16 Mounting the feet DL8 IC / DL9 IC The bottom plate has four M6 threaded holes placed in a Ø42 mm pitch circle� 1� Mount the desk foot on the column bottom using four M6 screws with the following specifications: Quality: Min�... -
Page 17: Dl10 Ic / Dl11 Ic
DL8 IC, DL9 IC, DL10 IC, and DL11 IC | 17 DL10 IC / DL11 IC The bottom plate has four M6 and two M8 threaded holes� The standard DL10 bottom plate has four M6 threaded holes, and the DL10 PLUS™ has four M6 and two M8 threaded holes�... - Page 18 DL8 IC, DL9 IC, DL10 IC, and DL11 IC | 18 1� Mount the feet on the columns using supplied screws� Max� torque:10 Nm� 2� Mount the adjustment screws�...
-
Page 19: Mounting The Tabletop
DL8 IC, DL9 IC, DL10 IC, and DL11 IC | 19 Mounting the tabletop The sound from the lifting column spreads as vibrations to the tabletop which amplifies the sound� This can, however, be reduced� 1� Place vibration/shock-absorbing material between tabletop and top frame� Figure 10 Assembled desk Placing the monitor Placement of a monitor directly above the motor housing may cause malfunction of the monitor�... -
Page 20: Mounting The Locking Device (Smps001/Smps002)
DL8 IC, DL9 IC, DL10 IC, and DL11 IC | 20 Mounting the locking device (SMPS001/SMPS002) To ensure optimal cable relief on the SMPS001/002 a locking device (0705889) should be used� Follow the guide below on how to fix the locking device on the SMPS� 1�... -
Page 21: Mounting The Bracket (Smps006/Smps007)
DL8 IC, DL9 IC, DL10 IC, and DL11 IC | 21 Mounting the bracket (SMPS006/SMPS007) A bracket for mounting the SMPS006 onto the application to give a fixed placement and ensure cable relief for the mains cable� Must be ordered separately (SA0705890)� The bracket must be fastened with two wood screws with a pan head�... -
Page 22: Connection
DL8 IC, DL9 IC, DL10 IC, and DL11 IC | 22 Connection Items required: Motor cable Desk panel (example) SMPS + cable 1� Connect the control and companion columns using the motor cable� 2� Mount the desk panel onto the desk and connect it to the control column� 3�... -
Page 23: Operation
DL8 IC, DL9 IC, DL10 IC, and DL11 IC | 23 Operation This document describes the DESKLIFT™ column system� For more information on the operation of the system, please refer to the relevant desk panel/control User Manual which is availble here: ttps://www�linak�com/user-manuals/deskline/�... -
Page 24: Maintenance
DL8 IC, DL9 IC, DL10 IC, and DL11 IC | 24 Maintenance Clean dust and dirt from the outside of the system at appropriate intervals and inspect for damage and breaks� Inspect connections, cables, and plugs without disconnecting, and check functioning as well as fixing points� CAUTION Loose screws Risk of loss of stability... -
Page 25: Repair And Disposal
LINAK service centre� In order to avoid the risk of malfunction, all product repairs must only be carried out by an authorised LINAK Service shop or repairers, as special tools and parts must be used�... -
Page 26: Contacts
LINAK, LINAK subsidiaries, or LINAK affiliates. the same reason, LINAK cannot guarantee the correctness and actual status of imprinted information on All sales are subject to the ‘Standard Terms of Sale and Delivery for LINAK A/S’ available on LINAK websites. its products.
