Summary of Contents for Linak CBD6S 200W

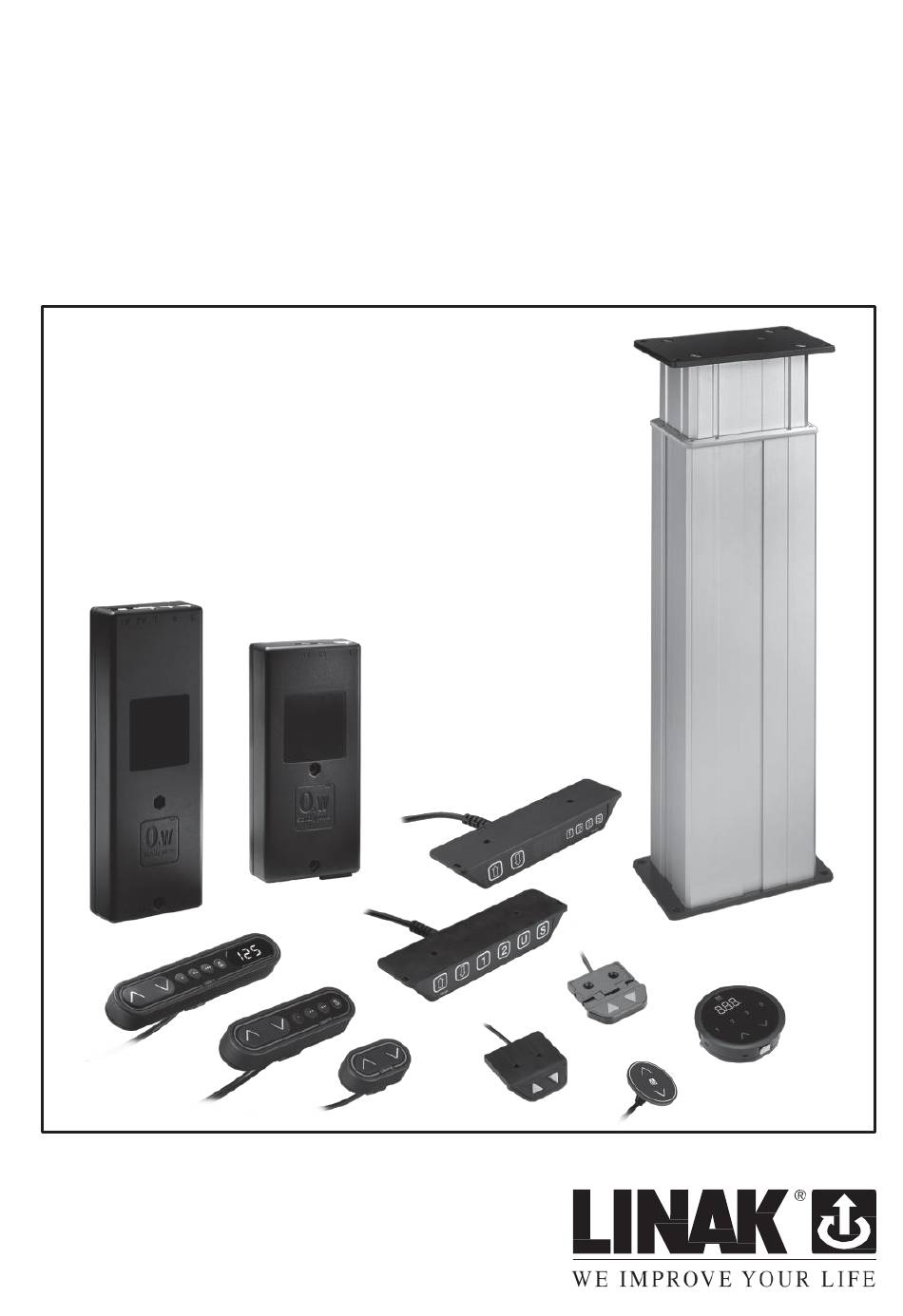

- Page 1 U S E R M A N U A L DL2 and CBD6S systems To learn more about LINAK please visit: W W W . L I N A K . C O M Page 1 of 24...
- Page 2 Page 2 of 24...
-
Page 3: Table Of Contents
Mounting guidelines CBD6S (SMPS) ....................15 Electrical connection of the DL2 with control box ................16 Initialisation of the DL2 with control box ..................17 Disposal of LINAK’s products ......................18 Labels ..............................19 Drawing appendix ..........................20 Declaration of conformity ........................ 23 Addresses ............................ -
Page 4: Preface
LINAK subsidiaries and distributors all over the world have authorised service centres, which are always ready to help you. LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance with the specifications, maintenance being done correctly and any repairs being carried out at a service centre, which is authorised to repair LINAK products. -
Page 5: Valid For
This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Lifting columns: Control boxes: CBD6S 200W, CBD6S 300W Controls: DP1U/DPF1M (if memory function is required) DP1C/DPT/DPF1C (if memory function and display is required) or DPA/DPB/DPH/DP1K/DP1V/DPF1K (if only up/down is required.) -
Page 6: Important Information
Important information ® Important information on LINAK products can be found under the following headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 7: Before Installation, Reinstallation Or Troubleshooting
• Make sure that the voltage of the control box is correct before the system is connected to the mains. • System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation: •... -
Page 8: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 9: Repairs
In order to avoid the risk of malfunction, all DESKLINE ® repairs must only be carried out by authorised LINAK workshops or repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned to authorised LINAK workshops. -
Page 10: Misc. On The Deskline System
(see label). LINAK A/S’ warranty is only valid in so far as the equipment has been used and maintained correctly and has not been tampered with. Furthermore, the system must not be exposed to violent treatment. In the event of this, the warranty will be ineffective/invalid. -
Page 11: Etl-Markering
ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962... -
Page 12: Description Of The Deskline System
The system range contains the following products: • 1 control box CBD6S 200W or CBD6S 300W (SMPS - Switch Mode Power Supply) • 1, 2, 3 or 4 DL2 lifting columns • 1 exchangeable mains cable •... -
Page 13: Mounting Guidelines For Dl2
Mounting guidelines for DL2 The DL2 column is supplied with either 8 mm end plates or 3 mm end plates. 8 mm end plates: For mounting on the desk frame there are 4 holes for M10 bolts. It is recommended to use all 4 bolts. 3 mm end plates: For mounting on the desk frame there are 4 holes in the column for DG 80 x 35 screws. -
Page 14: Bending Moment
(see figure 2) in which the spindle is placed. The spindle part is placed in the same side as the cable outlet. See the DL2 data sheet for further information regarding bending moment. LINAK recommends that the DESKLINE ® system should be used in push applications. -
Page 15: Mounting Guidelines Cbd6S (Smps)
ø 10 mm is preferable due to lower surface tension. See drawing appendix for placing of mounting holes and the space the CBD takes up. CBD6S 200W and CBD6S 300W The CBD must not be packed in heat insulating material, but must be placed so that it can emit waste heat into the surroundings. -
Page 16: Electrical Connection Of The Dl2 With Control Box
Electrical connection of the DL2 with control box The systems is to be connected as shown on figure 3. Each DL2 is to be connected to the sockets on the control box by means of the motor cables, which have a 6-pin plug in each end. Finally the mains cable is to be mounted and power switched on. -
Page 17: Initialisation Of The Dl2 With Control Box
Initialisation of the DL2 with control box Press the down button and the legs/actuators run down to the “end-stop position”. Approx. 3 mm Page 17 of 24... -
Page 18: Disposal Of Linak's Products
Disposal of LINAK’s products As LINAK’ s customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 19: Labels
LINAK shall be responsible solely that LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question. -
Page 20: Drawing Appendix
DRAWING APPENDIX DL2 Lifting Column lmmtoppl te mm top plate Dl2 with built-in CBD6S Modular jack connector for DG 80x35 screws LINAK A/5 DL1001C bottom plate Page 20 of 24... - Page 21 CBD6S 200W (SMPS) • • ._-111} ------t--- I" exagonal (M6 nut) 86.5 Page 21 of 24...
- Page 22 CBD6S 300 (SMPS) up to 4 channels -$------ -------- rtm=J -------: It a Hexagonal (M6 nut) 86.5 Page 22 of 24...
-
Page 23: Declaration Of Conformity
DECLARATION OF CONFORMITY LINAK A/S Smedevasnget 8 DK - 6430 Nordborg hereby declares that LINAK Actuator System composed of: Control 8ox(s) C8D6S Linear Actuator(s) 31xxxH-xxxxx50S , 084, , 087, 0812 0814 0816 LA23 Lifting Column(s) DL 1A, DL2, DL4, DL5, DL6, DL7, DL8, DL9,... -
Page 24: Addresses
+65 6844 0070 correct and actual status of said information on its products. E-mail: servodynamics@servo.com.sg COLOMBIA While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the www.servo.com.sg MEM Ltda same reasons as mentioned above, guarantee the availability of any...
